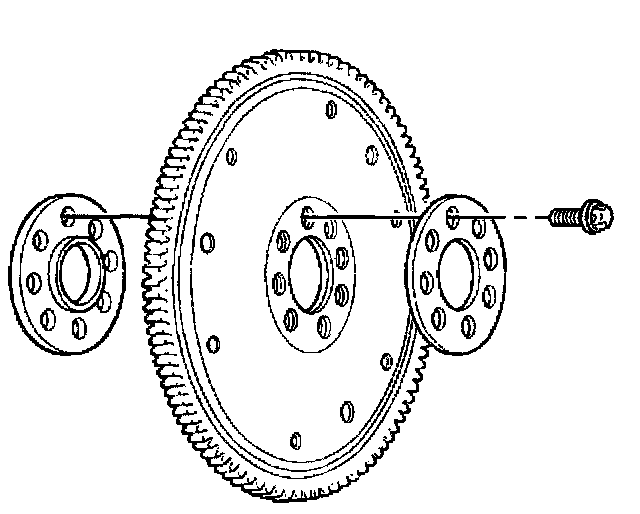

Flex Plate
Flywheel Bolts
65 Nm (48 lb ft)
Use the J 36660-A to rotate the flywheel bolts in the following sequence:
-
The first pass rotate the flywheel bolts
30 degrees.
-
The second and the final pass rotate the flywheel bolts an additional 15 degrees.
