Transmission Mount: Service and Repair

Transmission Mount Replacement

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the transmission support.

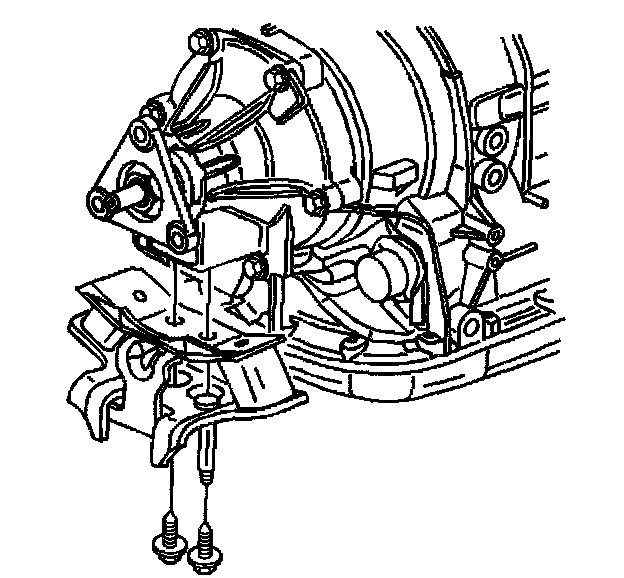

3. Remove the transmission mount upper mounting bolts.
4. Remove the transmission mount.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the transmission mount and upper mounting bolts.
Tighten the mount bolts to 60 Nm (44 ft. lbs.).
2. Install the transmission support.
3. Lower the vehicle.
