Sunload and Twilight Sentinel Sensor Replacement
SUNLOAD AND TWILIGHT SENTINEL SENSOR REPLACEMENTREMOVAL PROCEDURE 1.
Remove the defroster grille.
2.

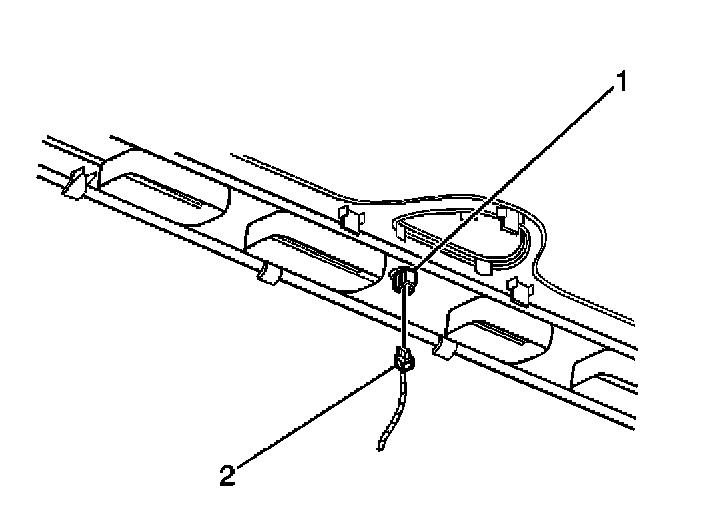

Remove the
sunload sensor (1) from defroster grill by twisting 1/4 turn.
INSTALLATION PROCEDURE 1.

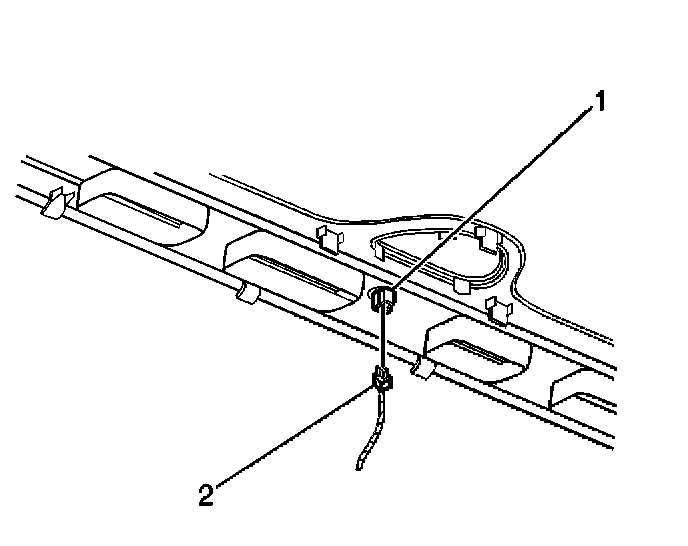

Install the
sunload sensor (1) to the defroster grille by twisting 1/4 turn.
2.
Install the defroster grille.
