SUNSHADE CONTROL MODULE REPLACEMENT - REAR

REMOVAL PROCEDURE
1. Remove the rear sunshade from the vehicle.
2. Disconnect the electrical connector from the rear sunshade control module.

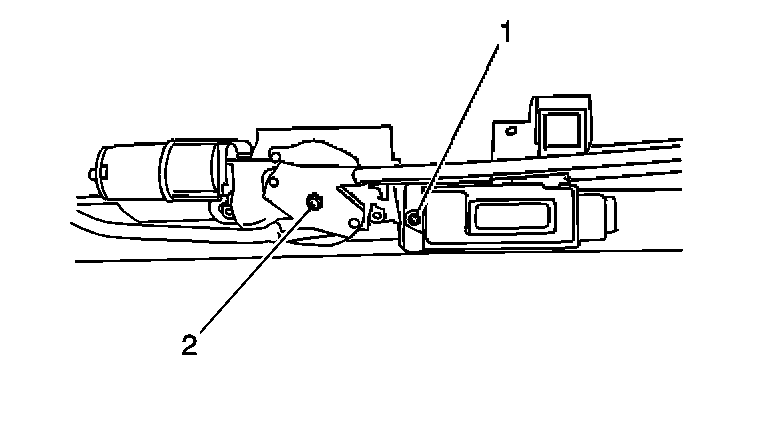

3. Remove the screw (1) that retains the rear sunshade control module to the rear sunshade assembly.
4. Slide the rear sunshade control module off of the rear sunshade assembly.

INSTALLATION PROCEDURE
1. Slide the rear sunshade control module on the rear sunshade assembly.

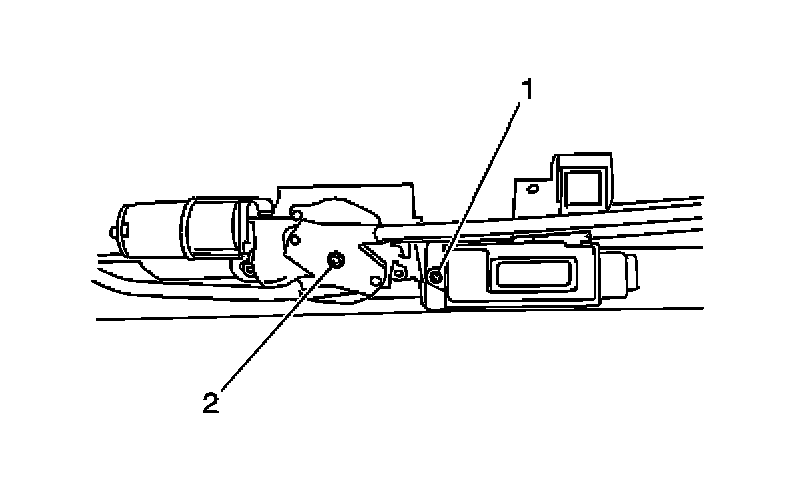

2. Install the screw (1) that retains the rear sunshade module to the rear sunshade assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the sunshade control module screw (1) to 2N.m (18 lb in).

3. Connect the electrical connector to the rear sunshade control module.
4. Install the rear sunshade to the vehicle.
