System Specifications


Park Brake Specifications

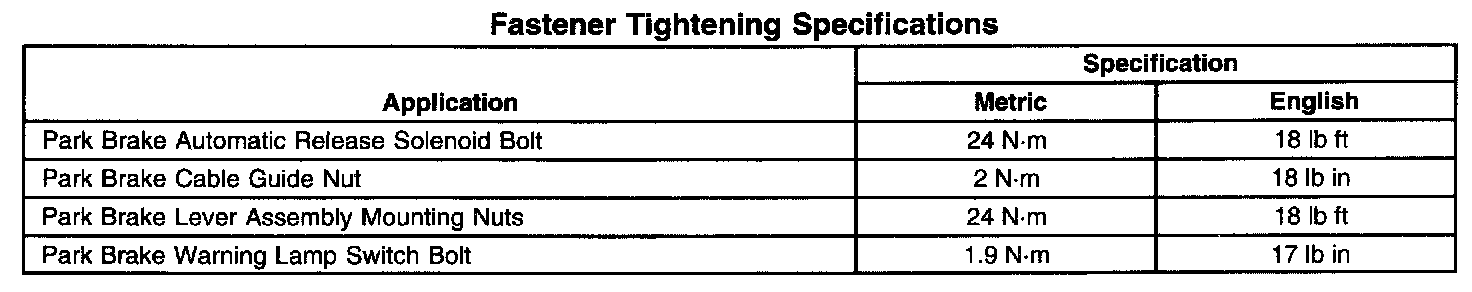

Fastener Tightening Specifications:









3. Install the park brake pedal assembly to the mounting studs.

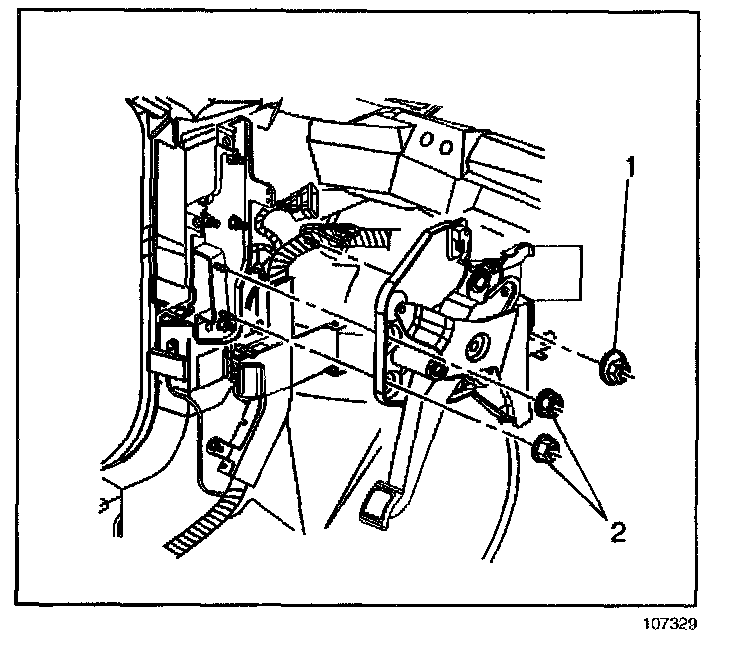

4. Install the park brake pedal assembly mounting nuts (1, 2).
Tighten the park brake pedal assembly mounting nuts to 24 N.m (18 lb ft).
5. Connect the electrical connector to the park brake warning lamp switch.
6. Install the left knee bolster. Refer to Knee Bolster Replacement - Left (Without UV2) or knee Bolster Replacement - Left (UV2) in Instrument Panel, Gages, and Console.
7. Install the left closeout/insulator. Refer to Closeout/insulator Panel Replacement - Left in Instrument Panel, Gages, and Console.
8. Install the left carpet retainer. Refer to Carpet Retainer Replacement - Front in Interior Trim.
