Diagnostic System Check - Remote Keyless Entry

TEST DESCRIPTION

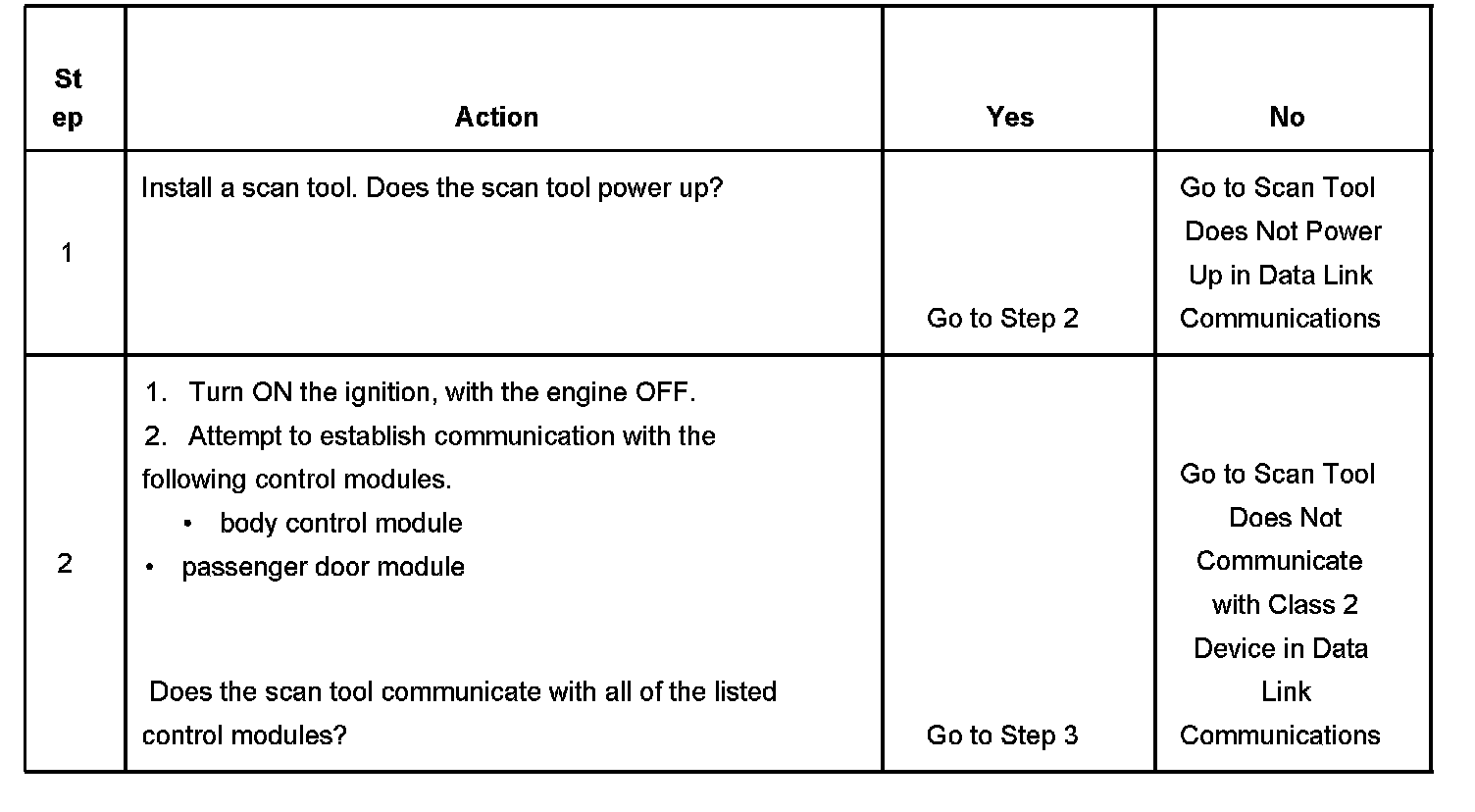

Steps 1-2:

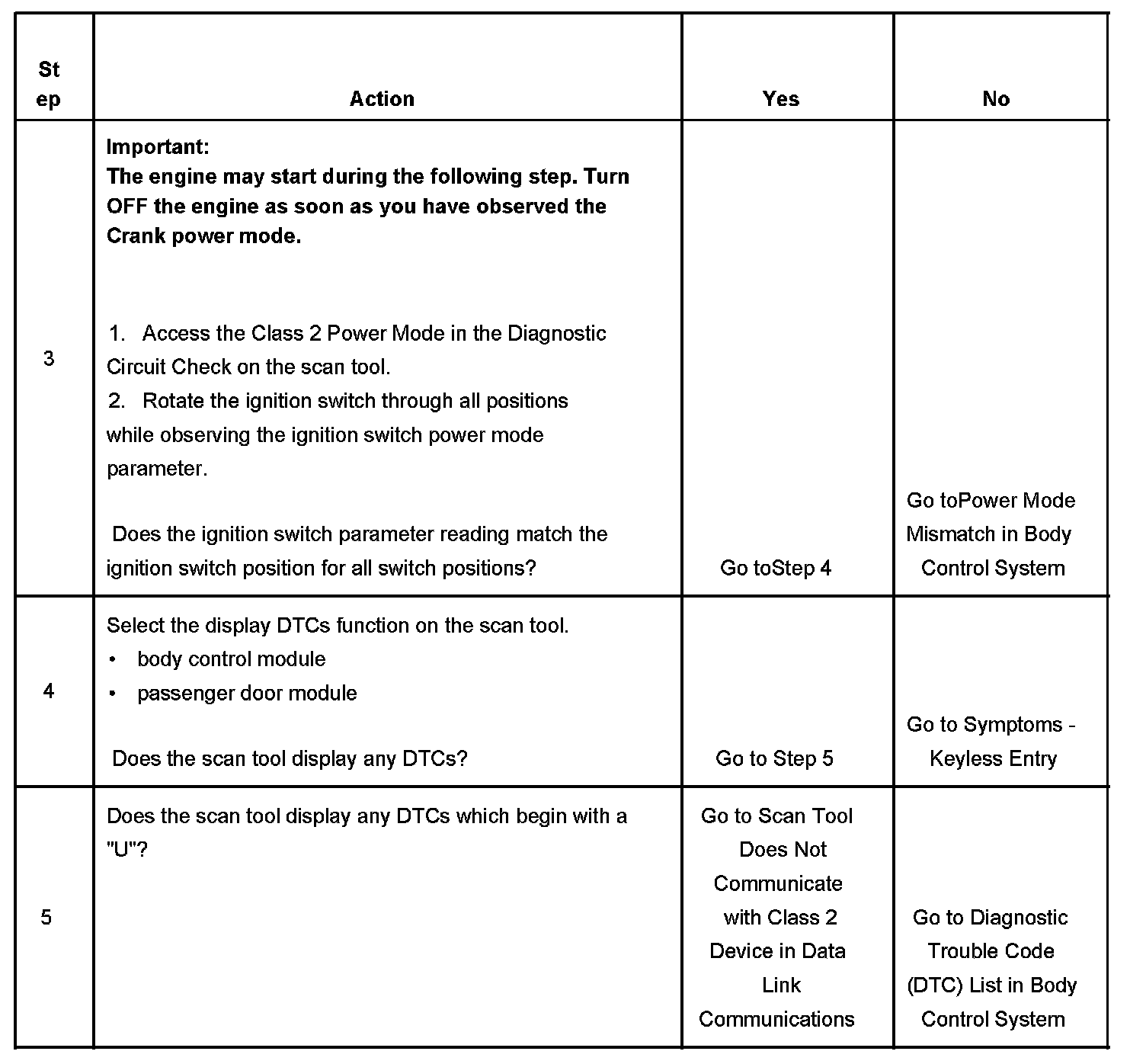

Steps 3-5:

The numbers below refer to the step numbers on the diagnostic table.
2. Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
5. The presence of DTCs which begin with "U" indicate some other module is not communicating. The specified procedure will compile all the available information before tests are performed. Any other body control module DTCs displayed by the scan tool do not apply to Remote Keyless Entry and should be diagnosed in the applicable section.
