Brake Pulsation



Brake Pulsation

Test Description

The numbers below refer to the step numbers on the diagnostic table:

2. Suspension components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.
3. Antilock brake system operation could produce feedback through the brake pedal during application of the brake system.

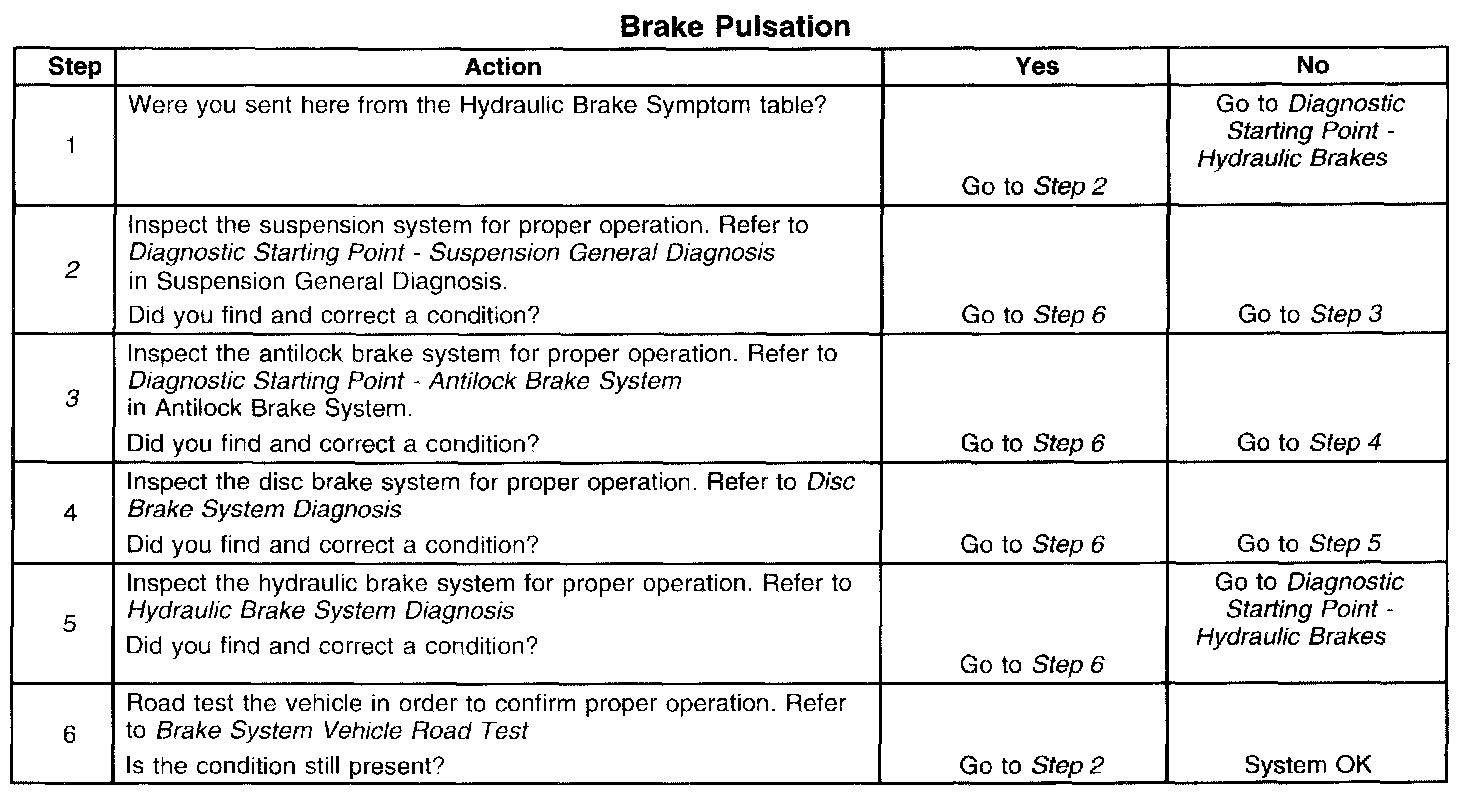

Brake Pulsation Steps 1 - 6:
