Home >> Cadillac >> 2003 >> Escalade V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> HVAC System - Automatic >> HVAC Diagram 6

HVAC Diagram 6

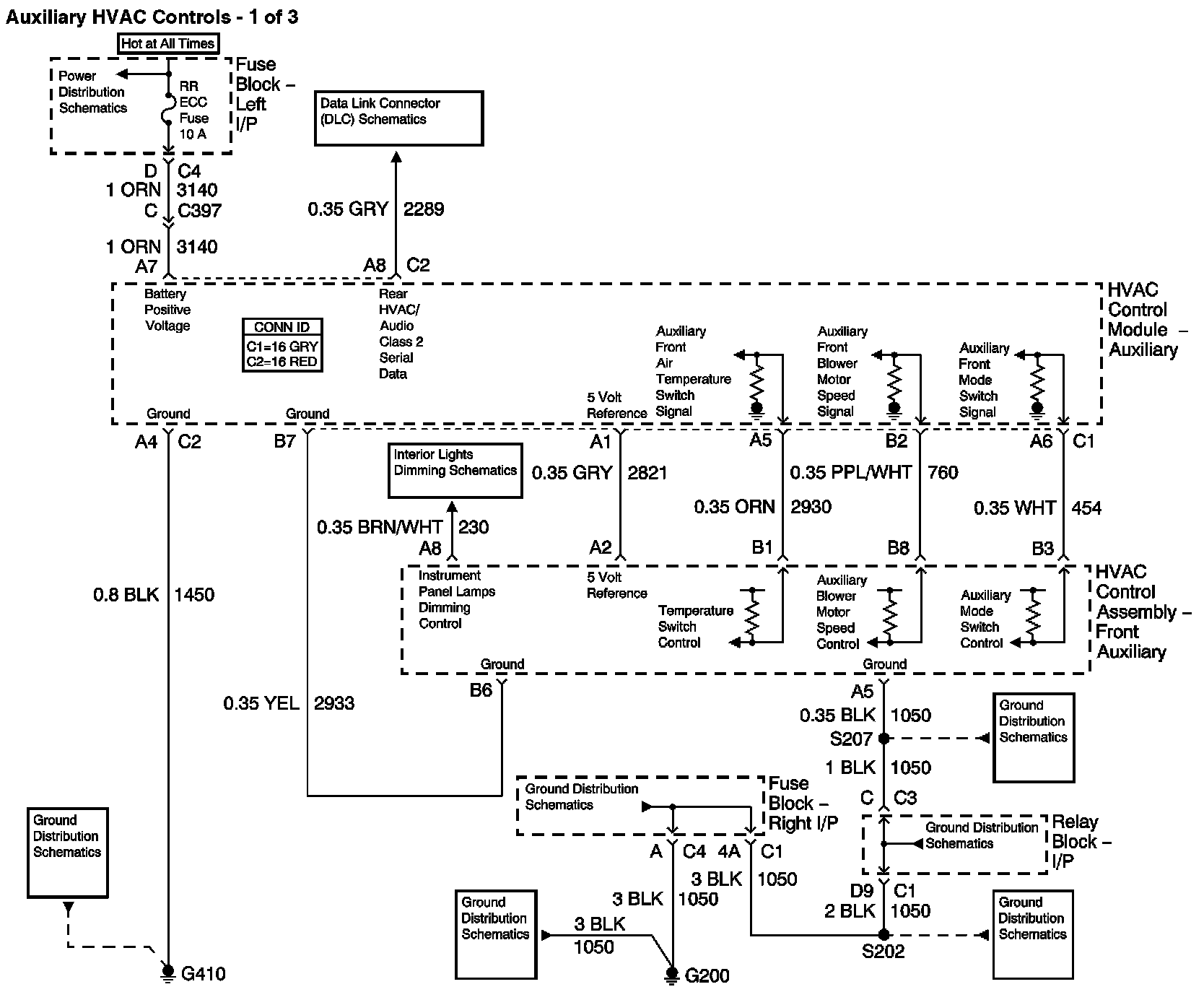

HVAC Diagram 6:






Next Diagram HVAC Diagram 7


Previous Diagram HVAC Diagram 5
