Home >> Cadillac >> 2003 >> Escalade V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Brake Light Switch >> Stop Lamp Switch and Traction Control Switch

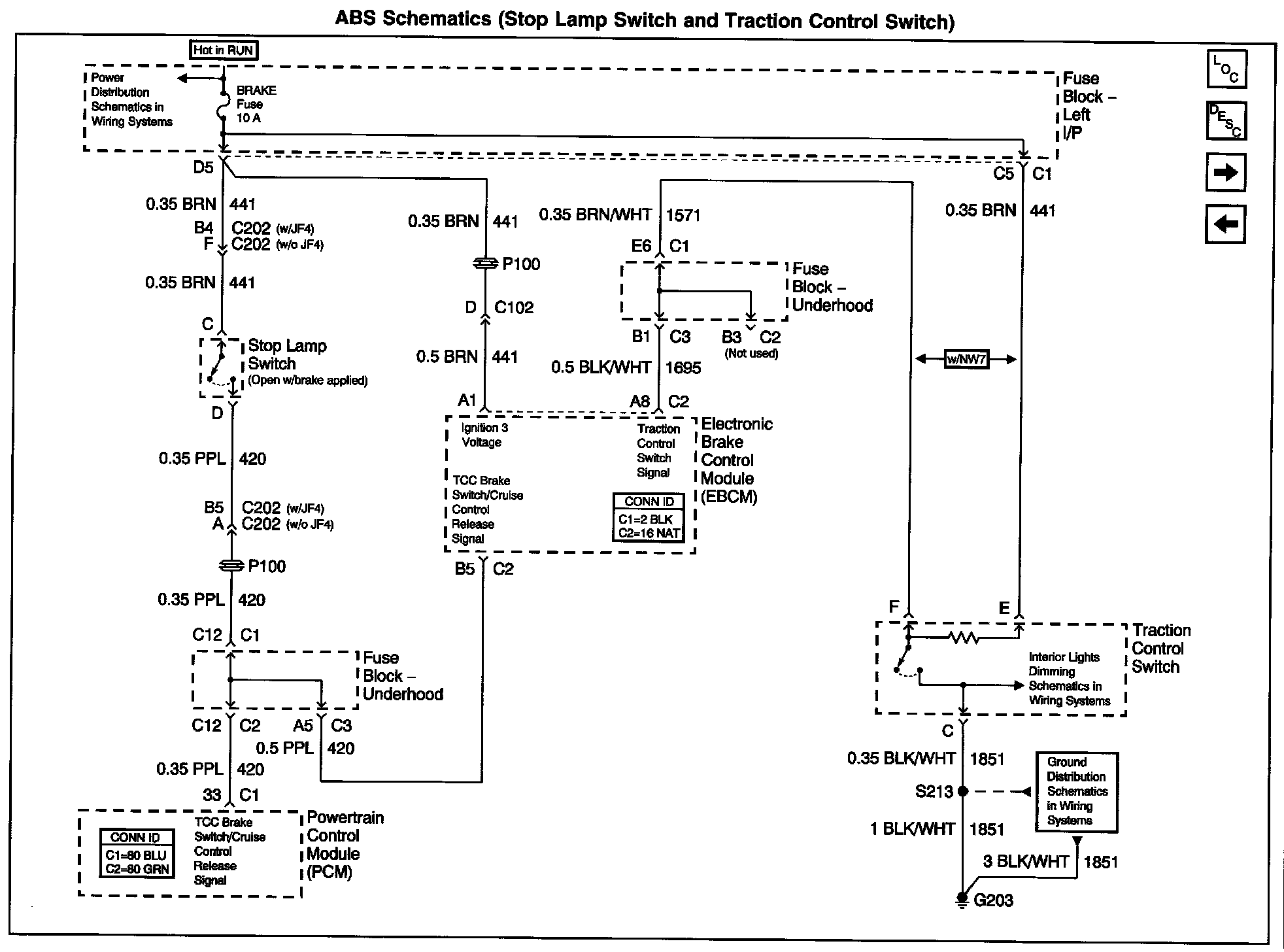

Stop Lamp Switch and Traction Control Switch

Stop Lamp Switch and Traction Control Switch:
