Home >> Cadillac >> 2003 >> Escalade V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transfer Case >> BW 4482-NR4 Transfer Case

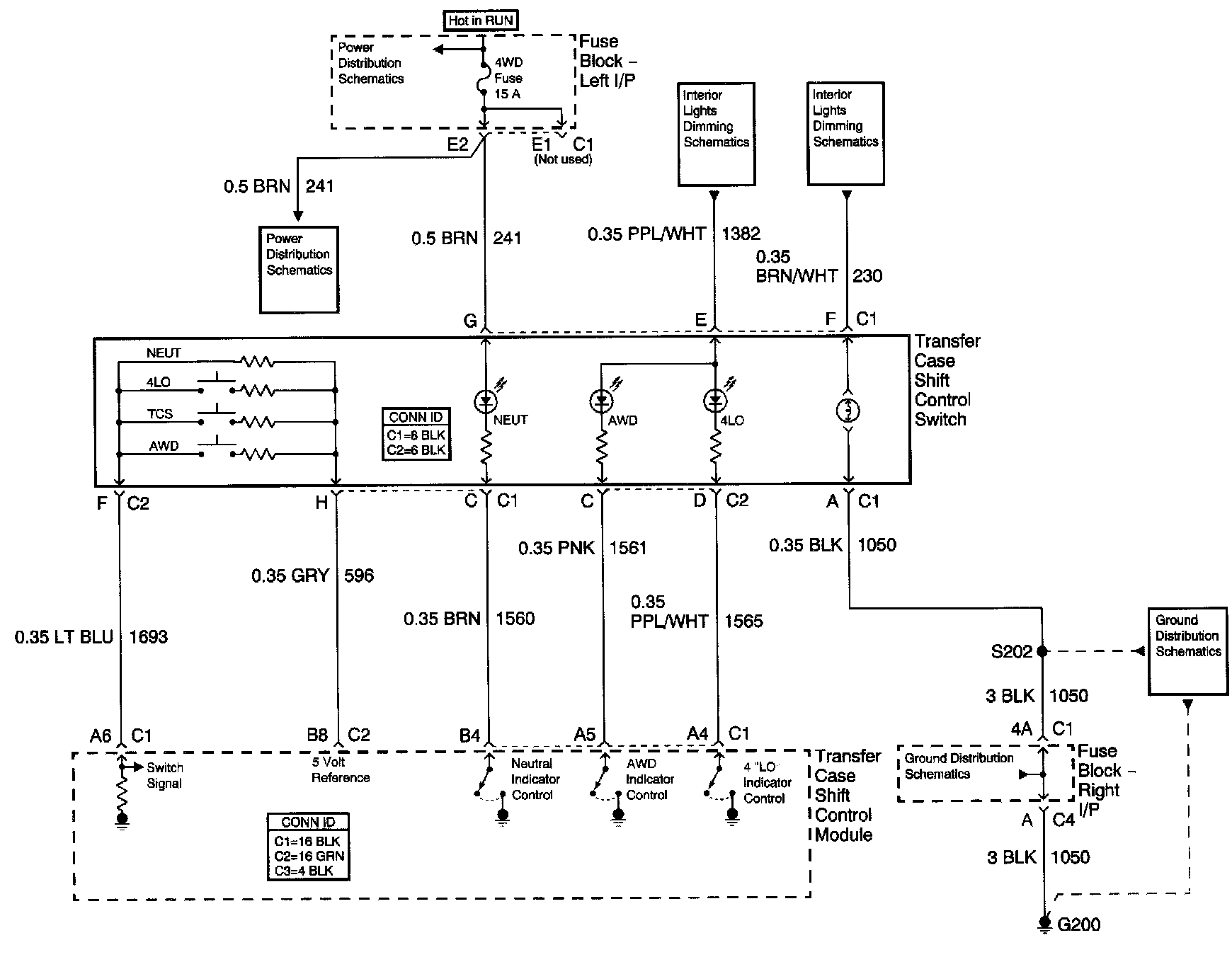

BW 4482-NR4 Transfer Case
