Connector Views

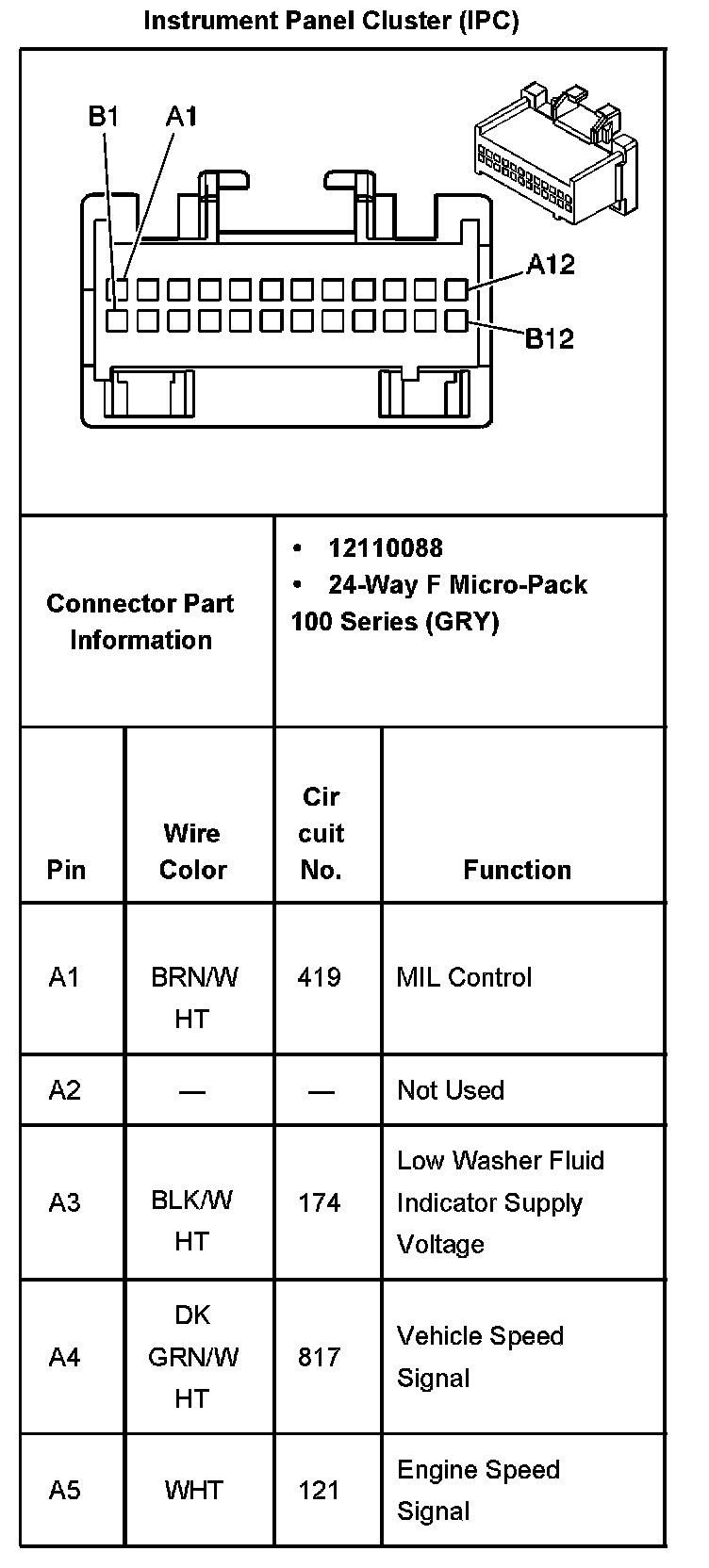

Instrument Panel Cluster (IPC) Part 1:

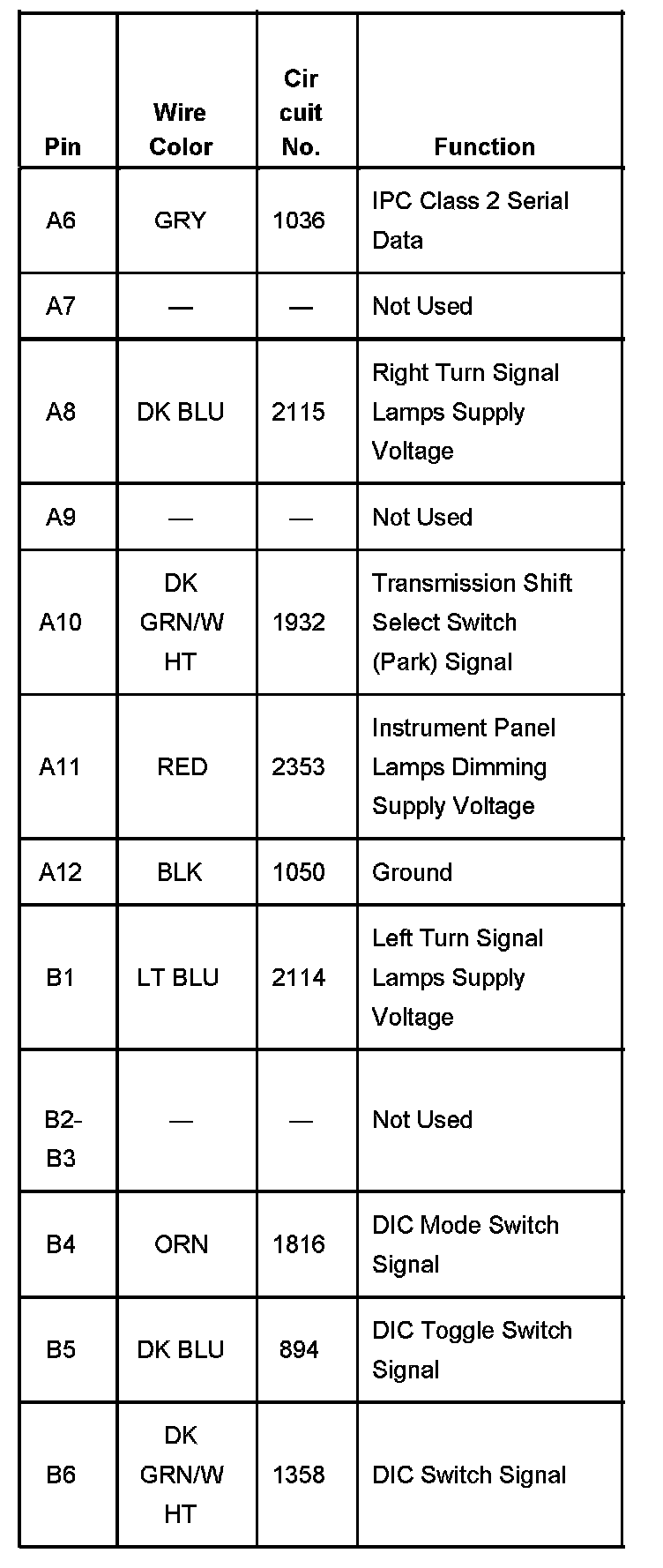

Instrument Panel Cluster (IPC) Part 2:

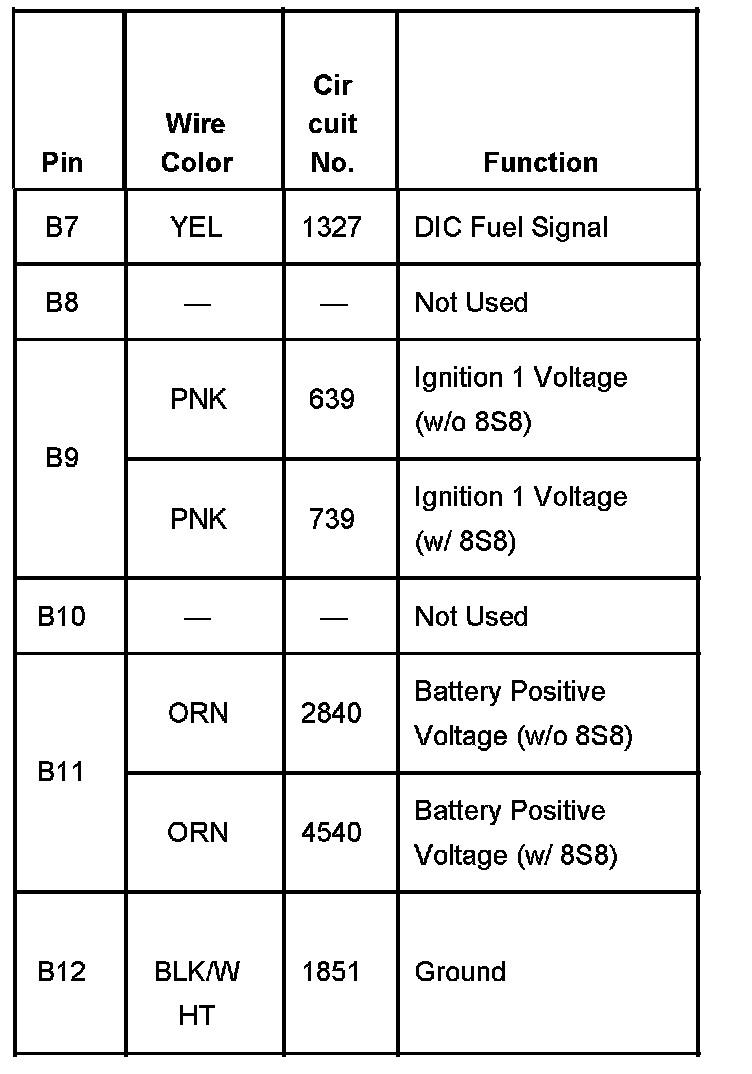

Instrument Panel Cluster (IPC) Part 3:
