Switch Replacement - Door Lock and Side Window - Driver

Switch Replacement - Door Lock and Side Window - Driver

Removal Procedure




1. Remove the front door trim panel.
2. Disconnect the electrical connectors.
3. Remove the screw that retains the switch panel bezel (1) from the front door panel.




4. Remove the switch panel bezel from the door panel using a flat-bladed tool.

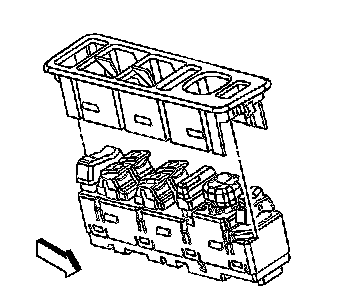

5. Using a wide plastic flat-bladed tool, release the retaining clips on both sides of the door module.
6. Remove the door module from the switch panel bezel.

Installation Procedure




1. Install the door module into the switch panel bezel until it snaps into place.




2. Install the switch panel bezel and module to the door panel.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.




3. Install the screw that retains the switch panel bezel (1) to the front door panel.

Tighten the screw to 2 Nm (18 lb in).

4. Connect the electrical connectors.
5. Install the front door trim panel.
6. If equipped with camper mirrors program the door module. Refer to Service Programming System (SPS). Service Programming System (SPS)
