Oil Pressure Sensor: Locations

Locations View:



Locations View:

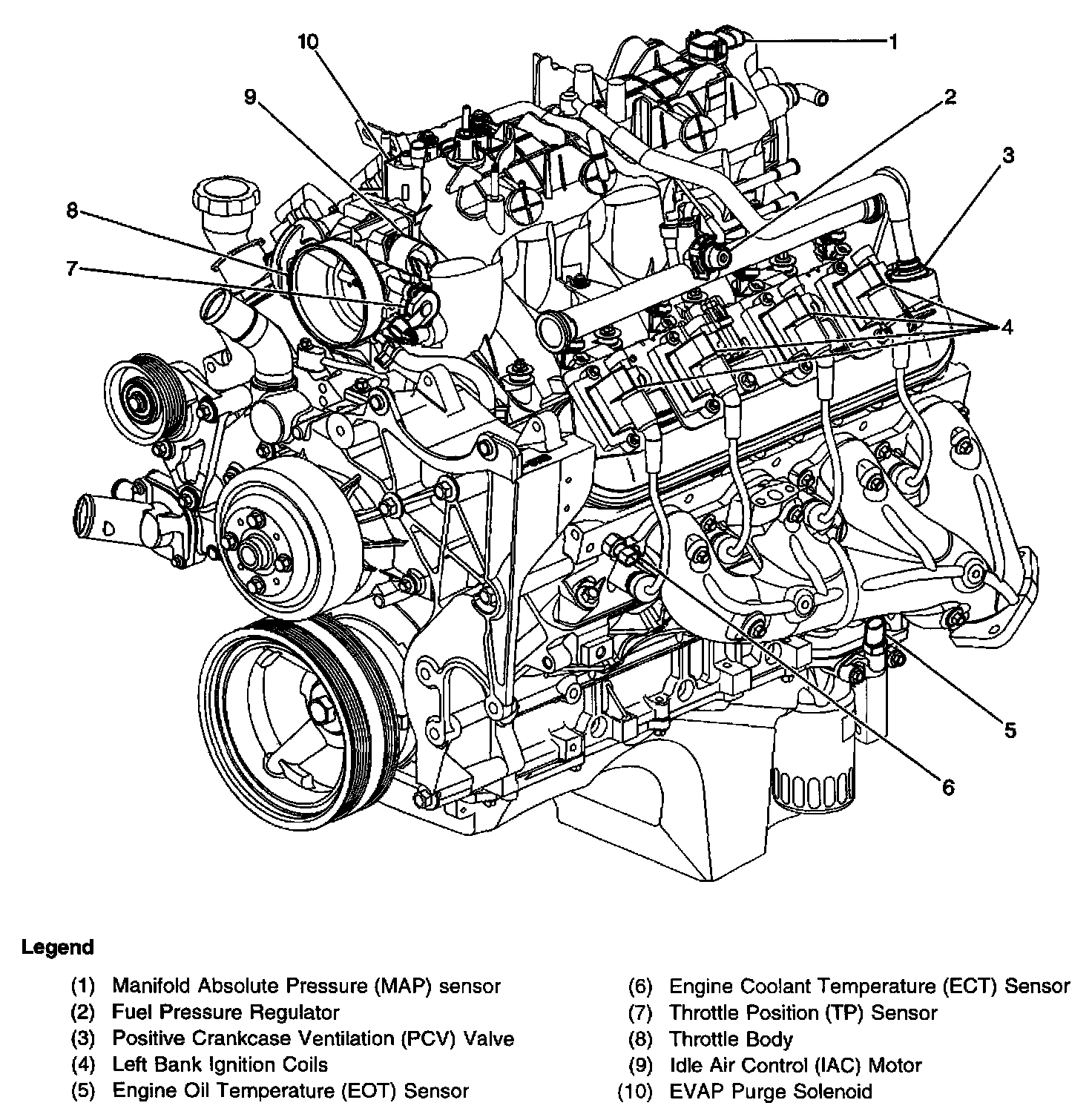

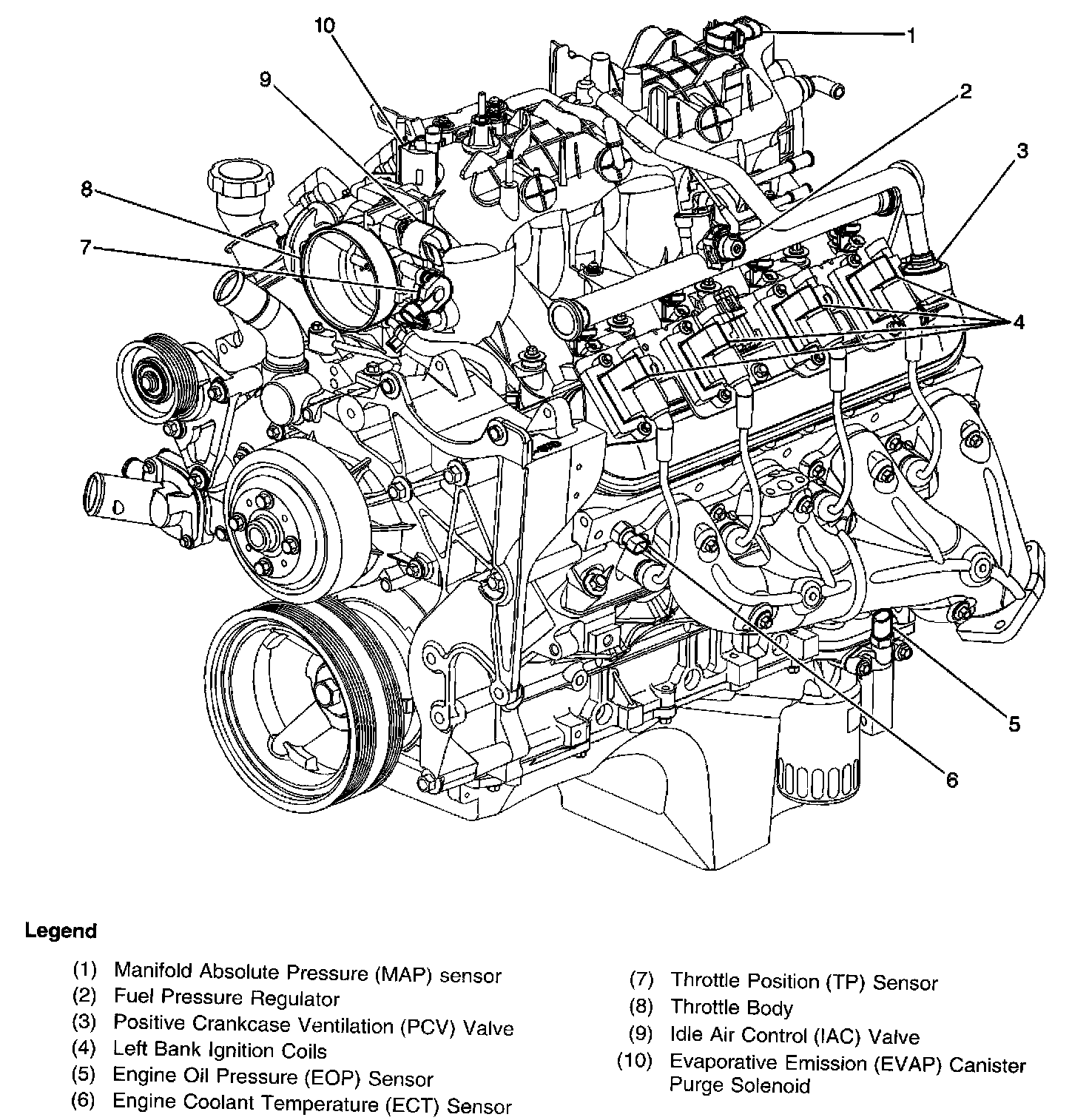

Left Side of the Engine Components:

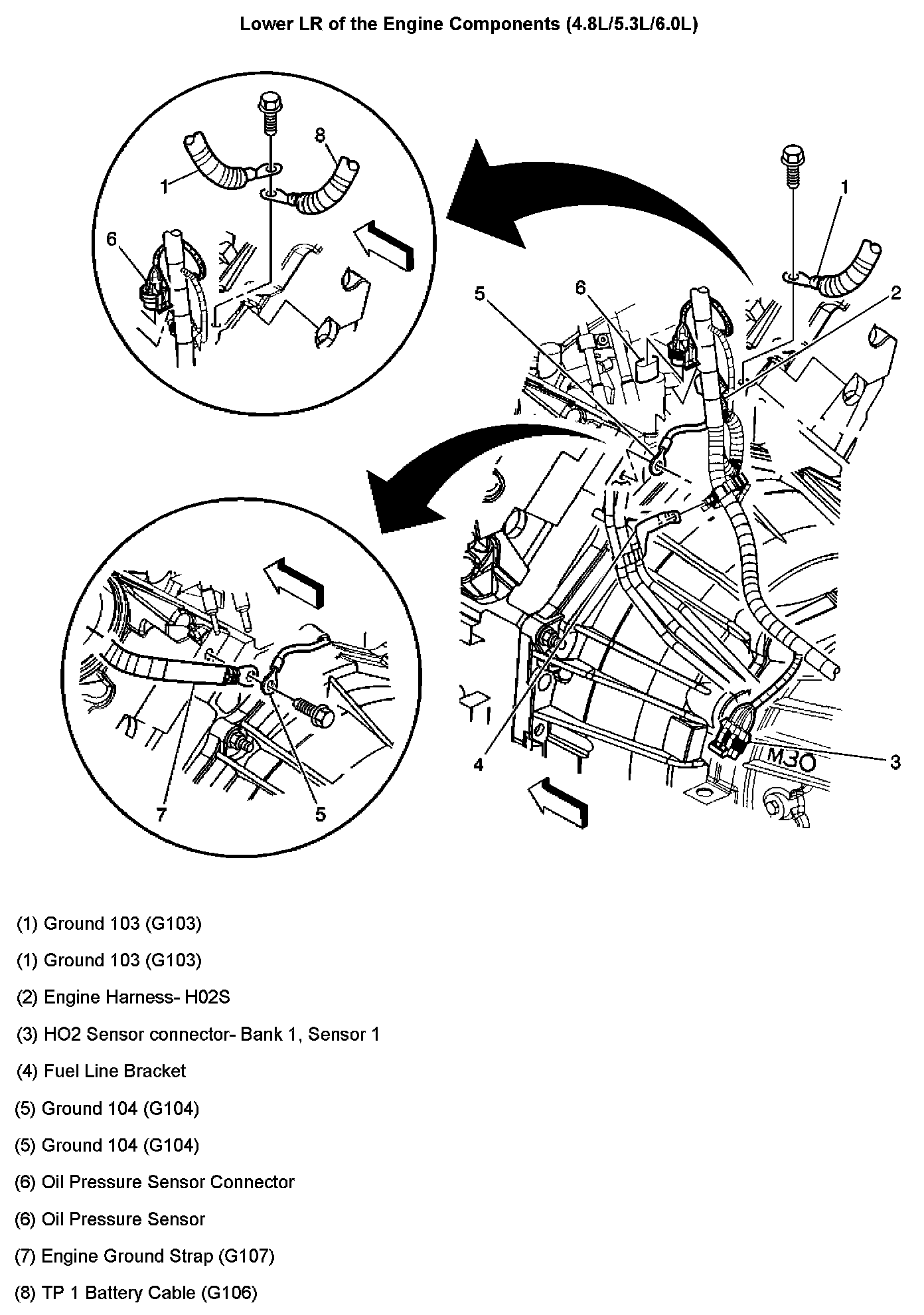

Lower LR Of The Engine Components:



Engine Oil Pressure (EOP) Sensor:
