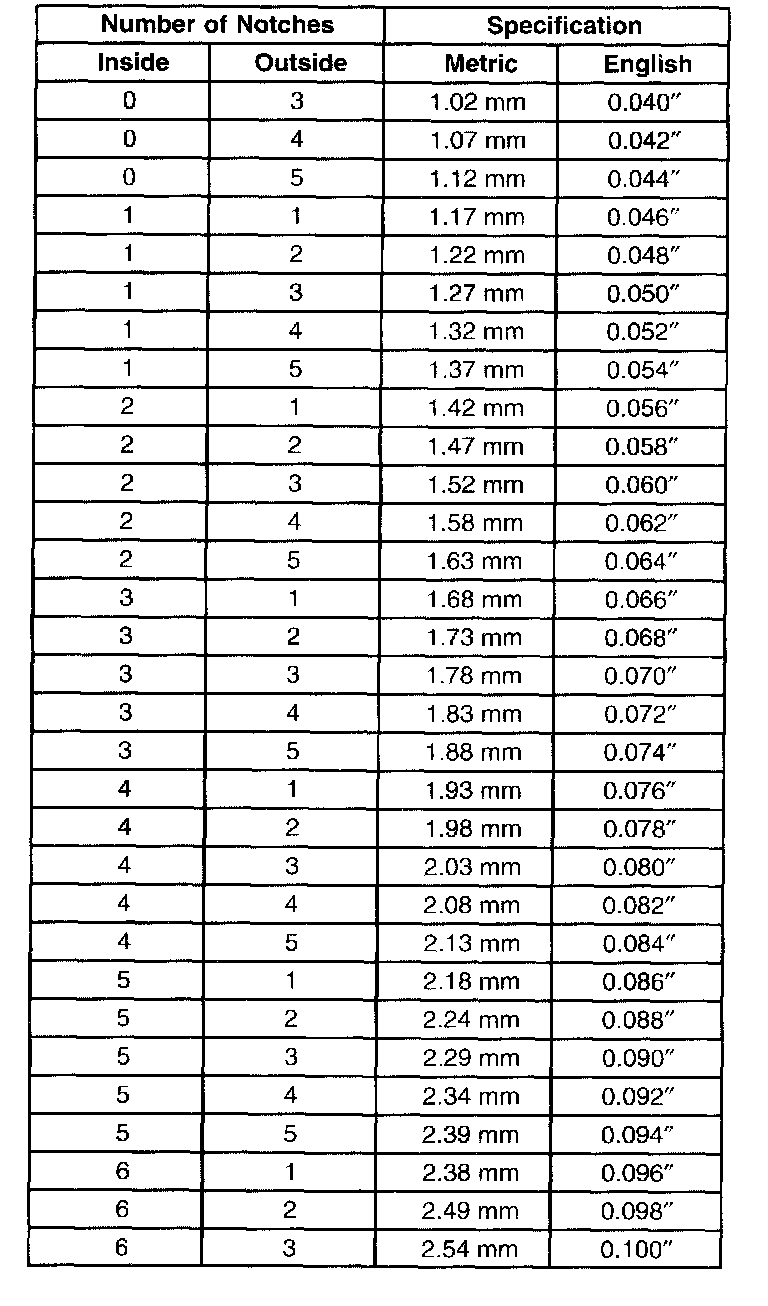

8.6 Inch Differential Adjustment Shim Specifications
8.6 Inch Differential Adjustment Shim Specifications
