Relay Replacement (Within an Electrical Center)

TOOLS REQUIRED
J 43244 Relay Puller Pliers

REMOVAL PROCEDURE
1. Remove the electrical center cover.
2. Locate the relay. Refer to Electrical Center Identification Views to locate the electrical center where the relay exists.

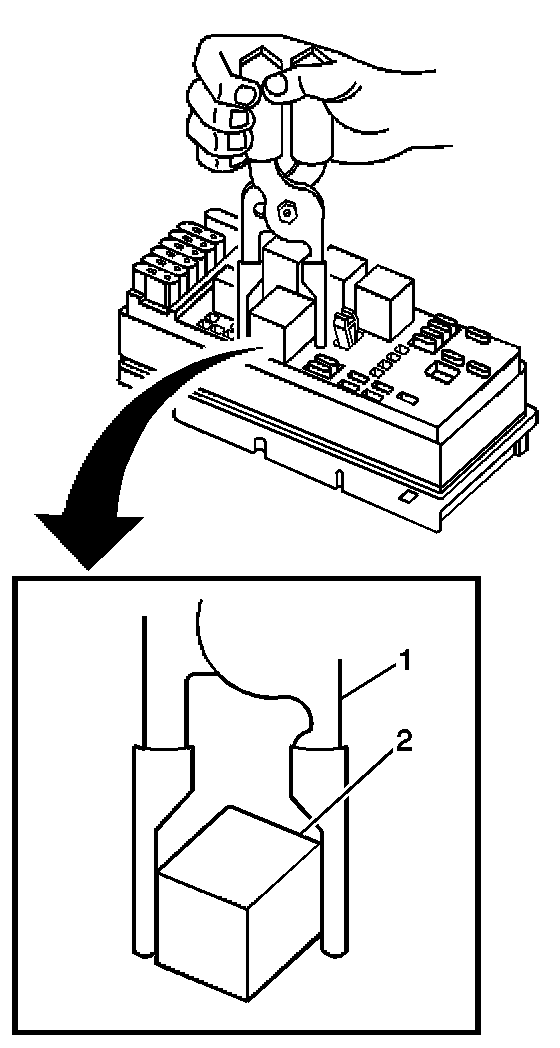

3. Using the J 43244 (1) position the tool on opposing corners of the relay (2).

IMPORTANT:
- Always note the orientation of the relay.
- Ensure that the electrical center is secure, as not to put added stress on the wires or terminals.

1. Remove the relay (2) from the electrical center.

NOTE: Use J43244 to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.

INSTALLATION PROCEDURE




1. Install the relay (2) in the same position as removed.
2. Install the electrical center cover.
