39. Input Sun Gear Bushings Replacement

Removal Procedure

^ Tools Required
- J 8092 Driver Handle
- J 34196B Bushing Set

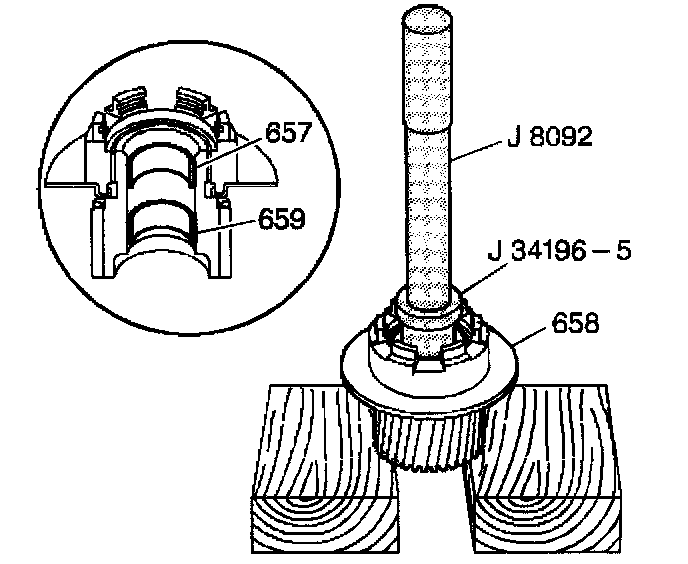

Using J 34196-5 with J 8092, remove the input sun gear front bushing (657) and rear bushing (659).

Installation Procedure

^ Tools Required
- J 8092 Driver Handle
- J 34196B Bushing Set

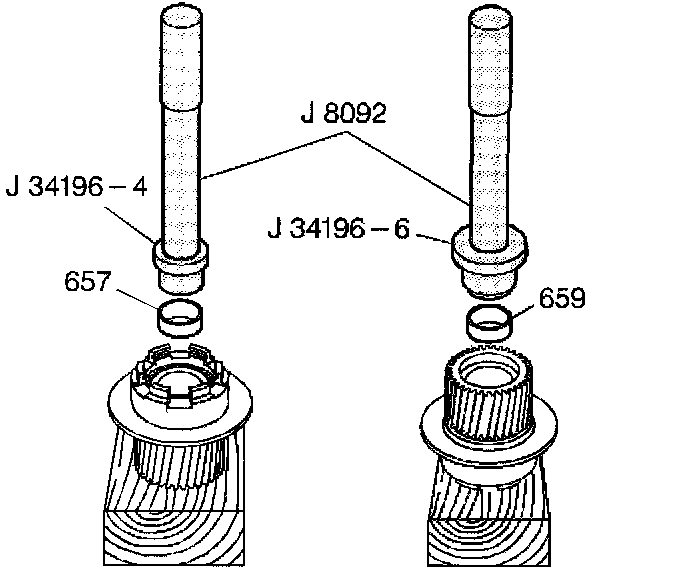

1. Using J 34196-4 with J 8092, install the input sun gear front bushing (657).
2. Using J 34196-6 with J 8092, install the input sun gear rear bushing (659).
