77. 1-2 Accumulator Installation

^ Tools Required
- J 25025-5 Guide Pins
- J 36850 Assembly Lubricant

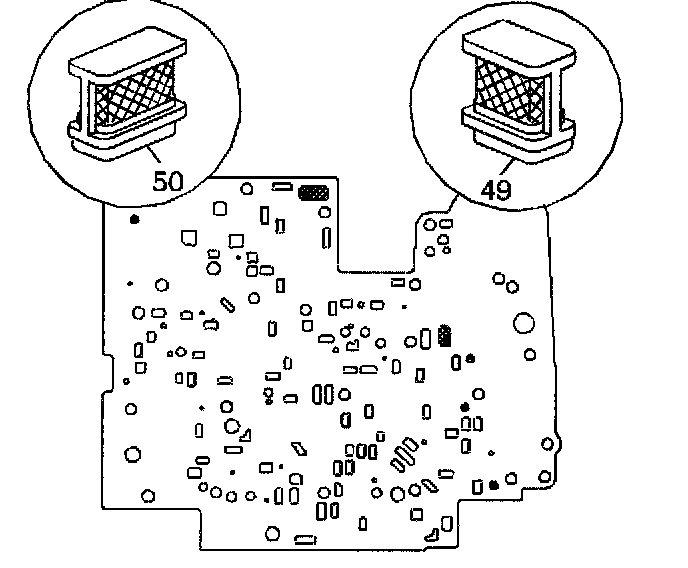

1. Inspect the valve body spacer plate and the solenoid screens (49, 50) for damage or debris. Replace the solenoid screens (49, 50) it necessary.

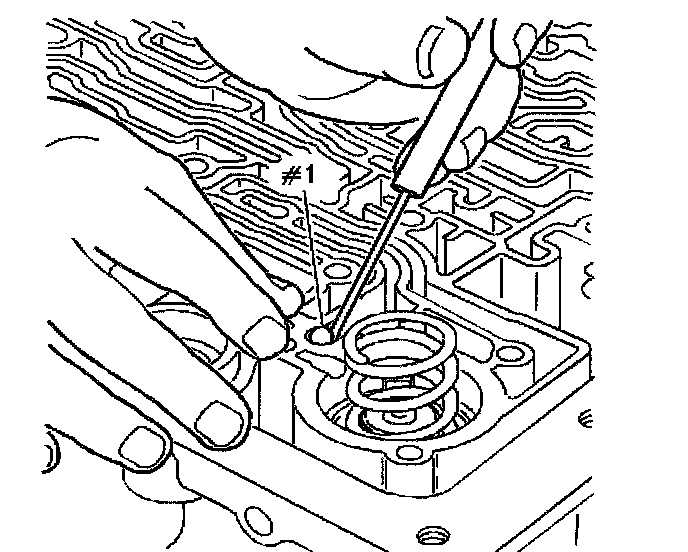

2. Install the #1 checkball into the case.

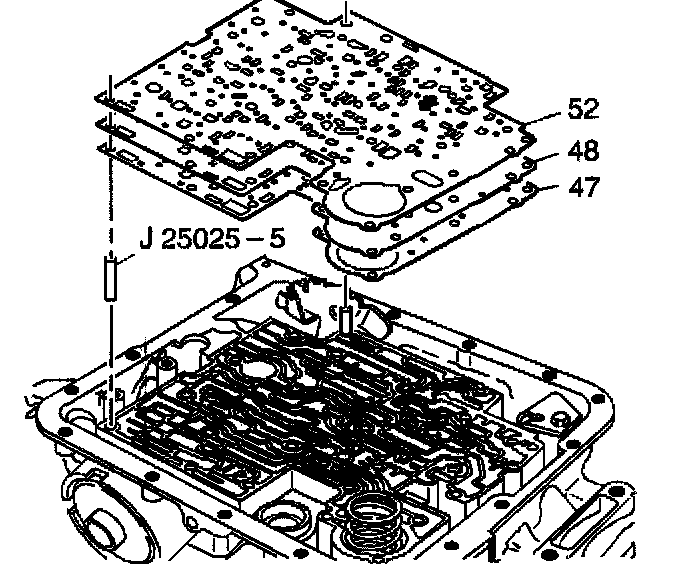

3. Install the J25025-5 into the case.
4. Place the spacer plate to case gasket (47) (identified by a "C") and the spacer plate to valve body gasket (52) (identified by a "V") on the spacer plate (48). Retain gaskets on the spacer plate with J 36850 or equivalent.
5. Place the spacer and the spacer plate gaskets on the case.

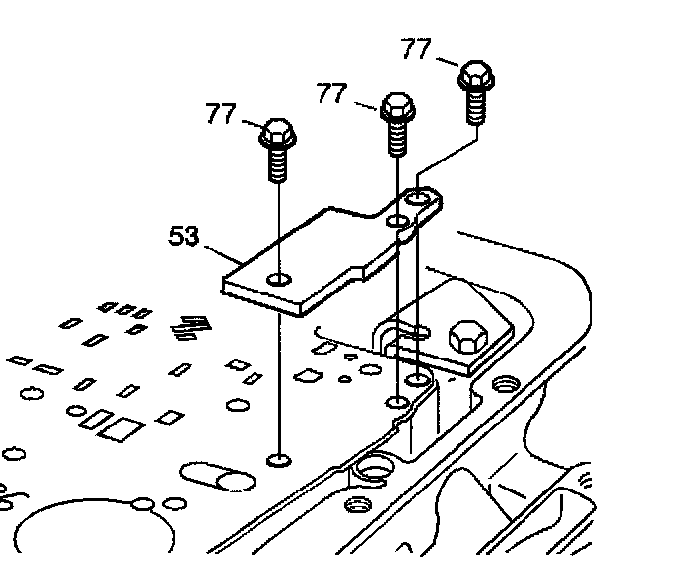

6. Install the spacer plate support plate (53).
7. Install the spacer plate support bolts (77).





8. Install the 1-2 accumulator housing assembly (67).

Notice: Refer to Fastener Notice in Service Precautions.

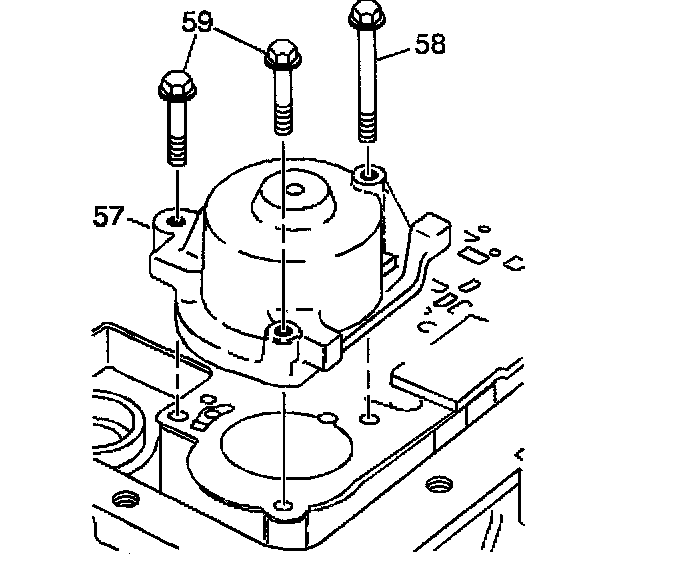

9. Install the 1-2 accumulator housing bolts (58, 59).
^ Tighten the bolts to 11 Nm (8 ft. lbs.).
