4L60-E/4L65-E Automatic Transmission
>>
A/T Inline 20-Way Connector, Transmission Side
A/T Inline 20-Way Connector, Transmission Side

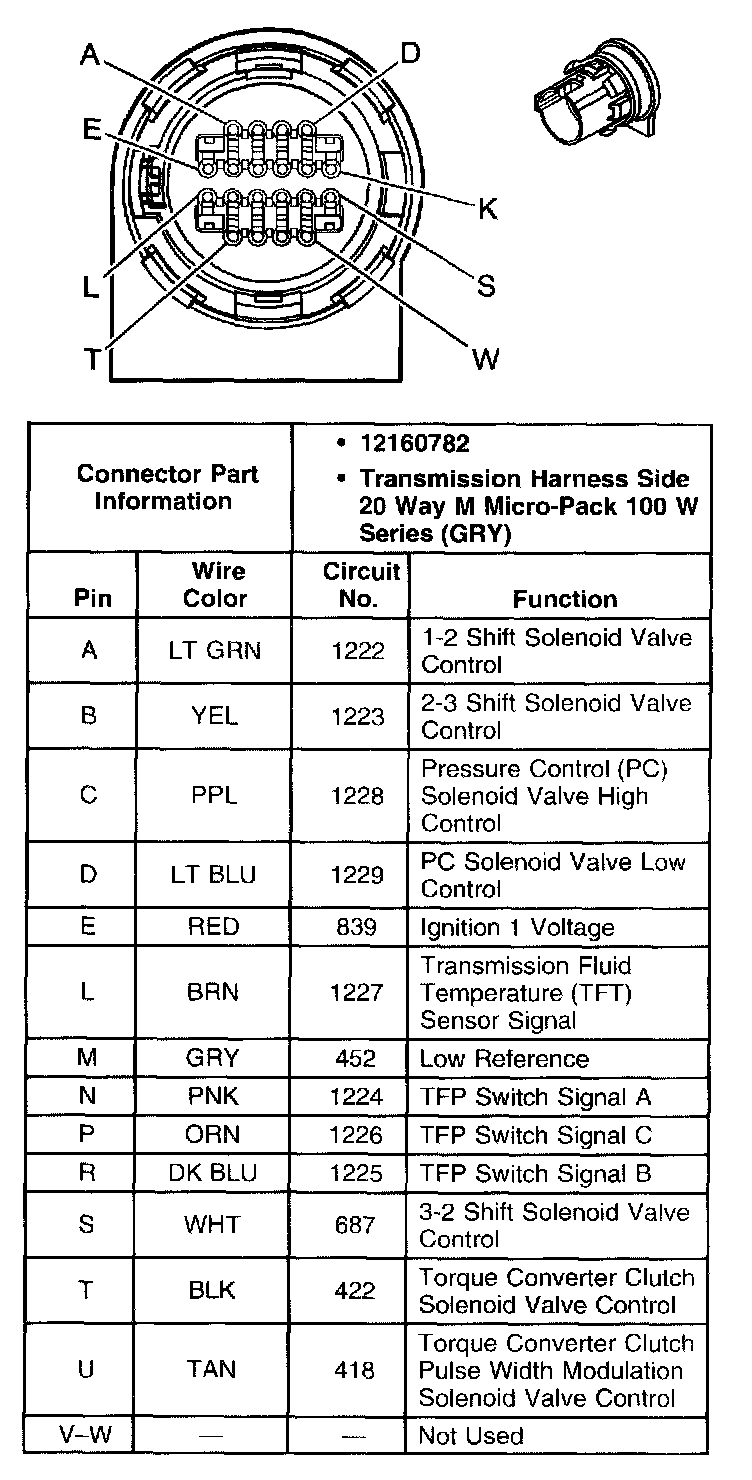

4L60-E/4L65-E A/T Inline 20-Way Connector, Transmission Side:
