Air Outlet Replacement - Defroster

AIR OUTLET REPLACEMENT - DEFROSTER

REMOVAL PROCEDURE




1. Disable the SIR system.
2. Remove the instrument panel assembly.

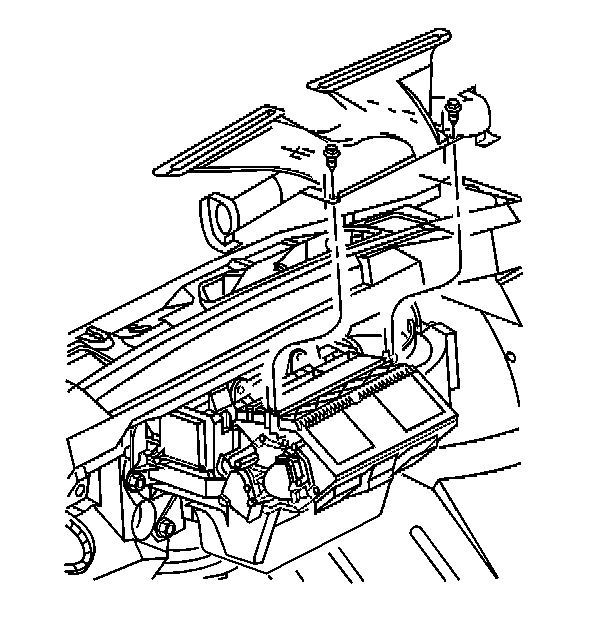

3. Remove the defroster nozzle fasteners.
4. Remove the defroster nozzle.

INSTALLATION PROCEDURE

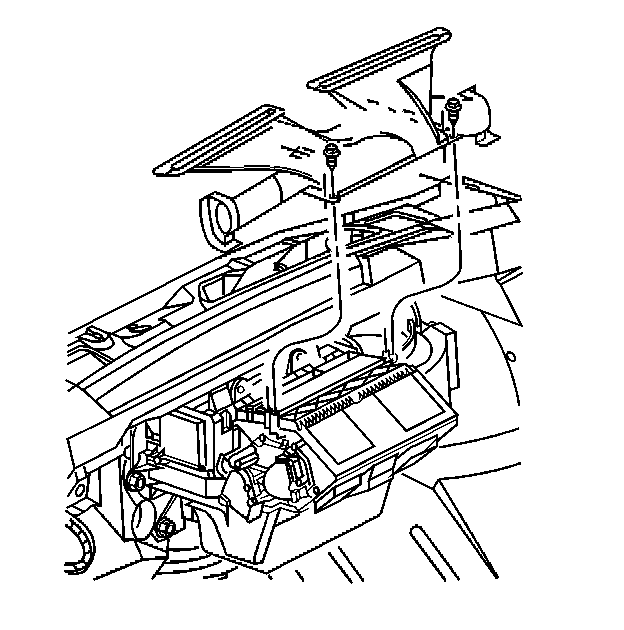

1. Install the defroster nozzle fasteners.




2. Install the defroster nozzle and screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the fasteners to 1.4 N.m (12 lb in).

3. Install the instrument panel assembly.
4. Enable the SIR system.
