Blower Motor Resistor: Locations

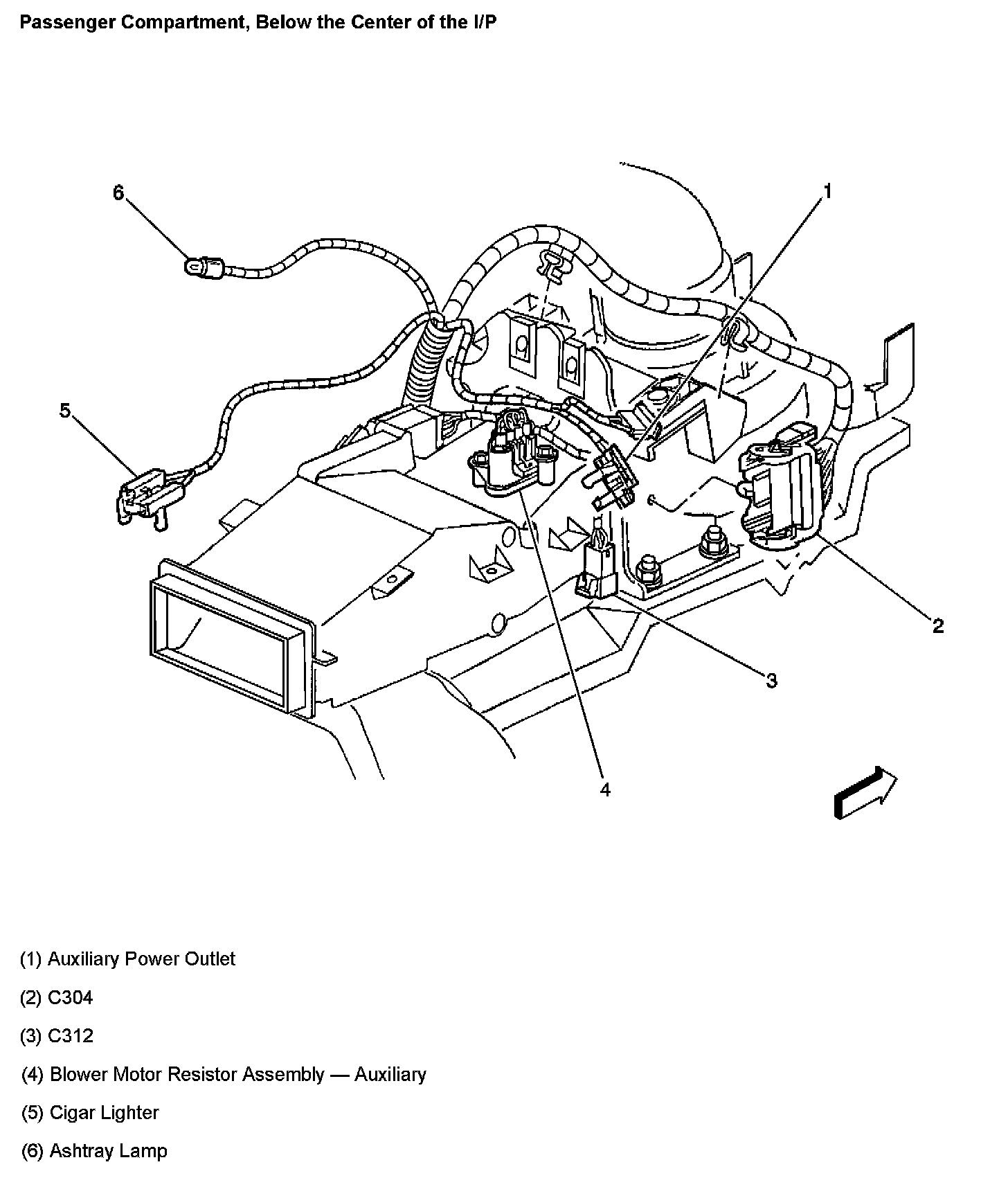

BLOWER MOTOR RESISTOR ASSEMBLY - AUXILIARYPassenger Compartment, Below The Center Of The I/P Part 2:
The Blower Motor Resistor Assembly - Auxiliary is located in front of the center console, near the rear blower motor.
