Inside Air Temperature Sensor Assembly Replacement (RHD)

INSIDE AIR TEMPERATURE SENSOR ASSEMBLY REPLACEMENT (RHD)

REMOVAL PROCEDURE




1. Remove the IP carrier.

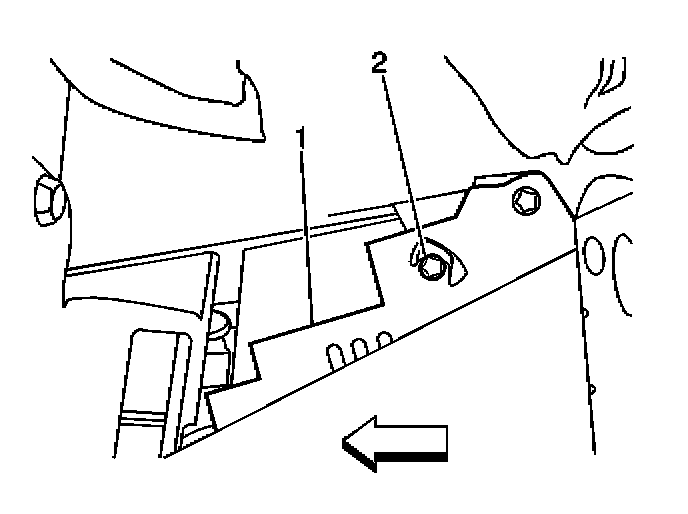

2. Remove the inside air temperature sensor assembly (1) retaining fastener.
3. Disconnect the electrical connector from the inside air temperature sensors.
4. Remove the inside air temperature sensor assembly (1).

INSTALLATION PROCEDURE




1. Install the inside air temperature sensor assembly (1).
2. Connect the electrical connector to the inside air temperature sensor.
3. Install the inside air temperature retaining fastener.
4. Install the IP carrier.
