TV Antenna Module Replacement

TV ANTENNA MODULE REPLACEMENT

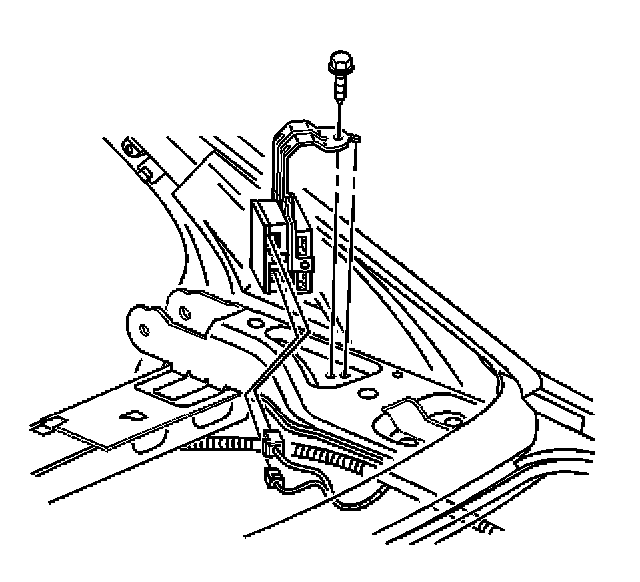

REMOVAL PROCEDURE
1. Remove the rear shelf trim panel.
2. Remove the electrical connectors from the TV antenna module.




3. Remove the fastener retaining the TV antenna module.
4. Remove the TV antenna module.

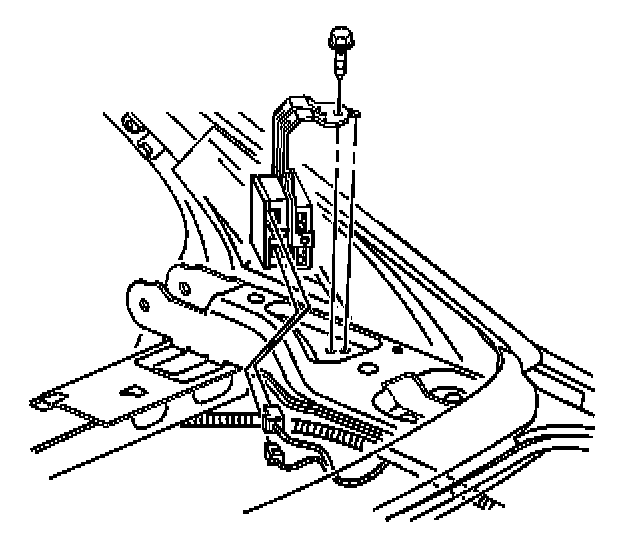

INSTALLATION PROCEDURE




1. Install the TV antenna module, ensuring the locating tab is positioned properly.
2. Install the retaining fastener.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the TV antenna module fastener to 10 N.m (89 lb in).

3. Connect the electrical connectors to the TV antenna module.
4. Install the rear shelf trim panel.
