Fluid Pan, A/T

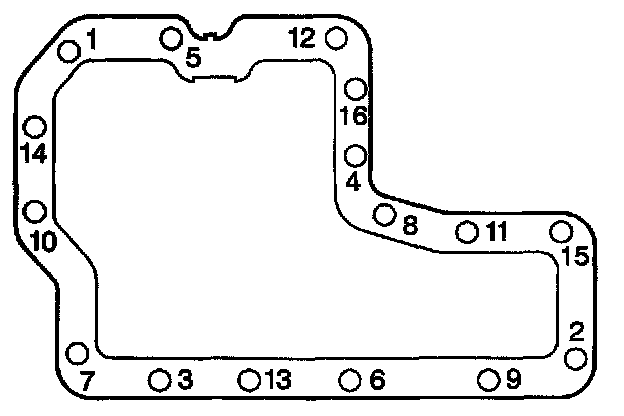

Bottom Oil Pan
First Pass 3 Nm (27 inch lbs.)
Second Pass 6 Nm (53 inch lbs.)
Third Pass 12 Nm (106 inch lbs.)
Bottom Pan to Case Bolt 10 - 12 Nm (8 - 9 ft. lbs.)
Oil Drain-Bottom Pan to Case Cover Plug 14 Nm (6 - 10 ft. lbs.)
Bottom Oil Pan
First Pass 3 Nm (27 inch lbs.)
Second Pass 6 Nm (53 inch lbs.)
Third Pass 12 Nm (106 inch lbs.)
Bottom Pan to Case Bolt 10 - 12 Nm (8 - 9 ft. lbs.)
Oil Drain-Bottom Pan to Case Cover Plug 14 Nm (6 - 10 ft. lbs.)
