Intake Plenum Switchover Solenoid Replacement
INTAKE PLENUM SWITCHOVER SOLENOID REPLACEMENTREMOVAL PROCEDURE

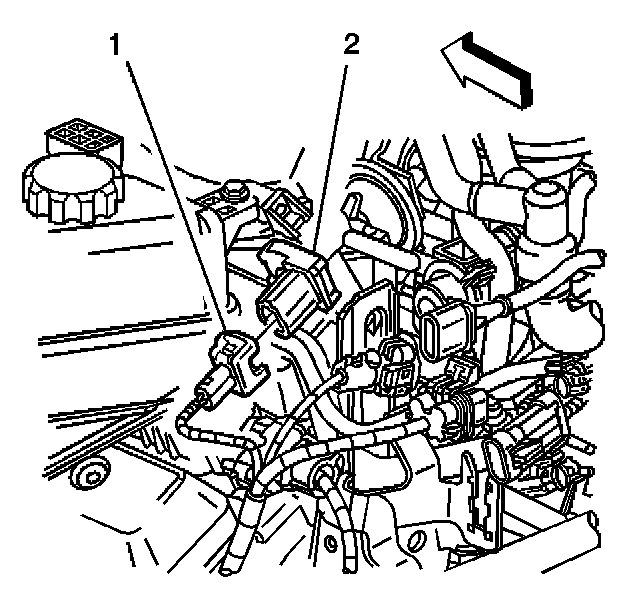

1. Disconnect the following from the intake plenum switchover solenoid (2):
- The electrical connector (1)
- The vacuum hoses
2. Remove the intake plenum switchover solenoid bolts.
3. Remove the intake plenum switchover solenoid from the intake plenum.
INSTALLATION PROCEDURE
1. Position the intake plenum switchover solenoid to the intake plenum.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the intake plenum switchover solenoid bolts.
Tighten
Tighten the intake plenum switchover solenoid bolts to 8 N.m (71 lb in).
3. Connect the following to the intake plenum switchover solenoid (2):
- The electrical connector (1)
- The vacuum hoses
