Component Locations

ABS Component Views

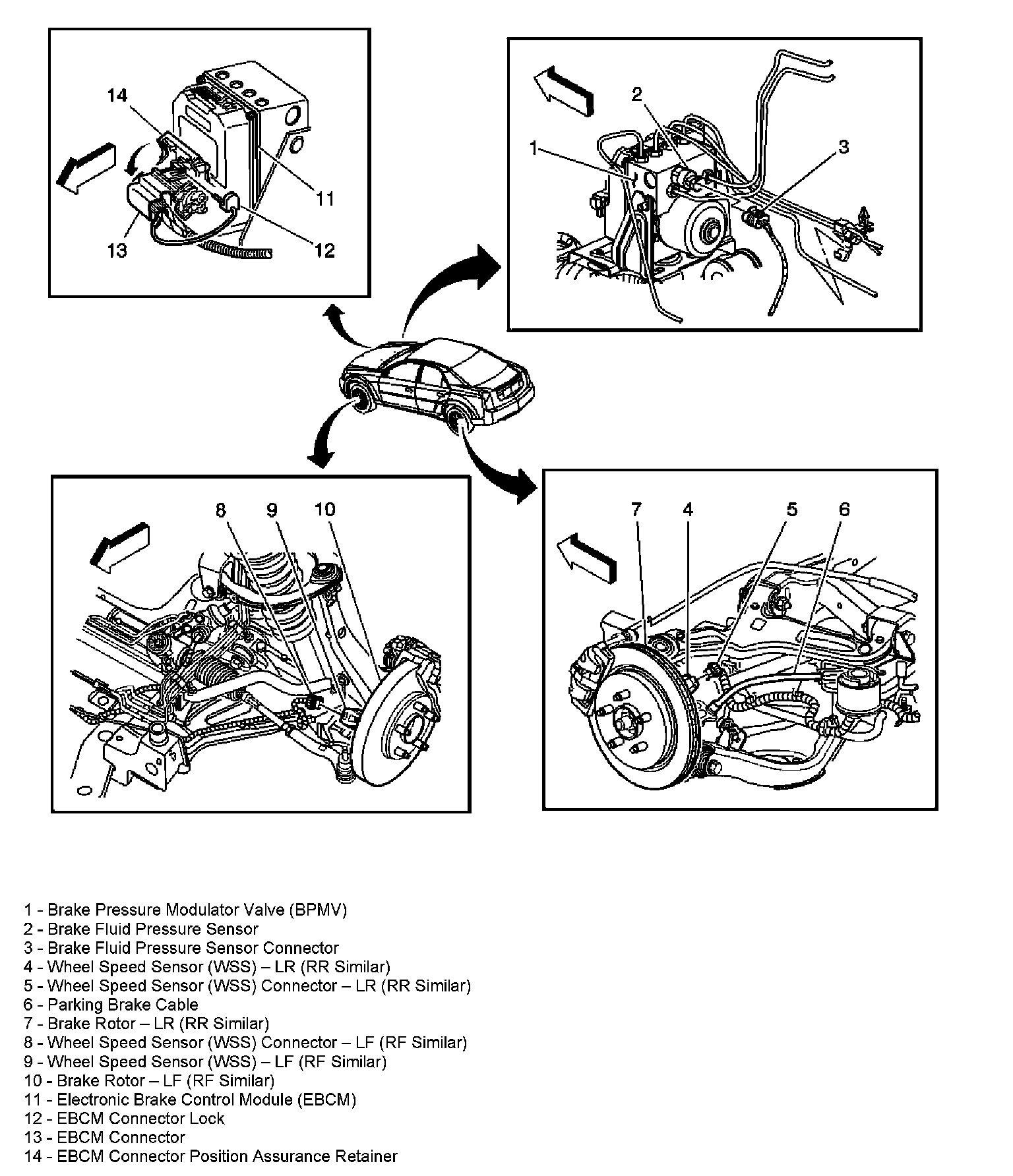

EBCM and Wheel Speed Sensors

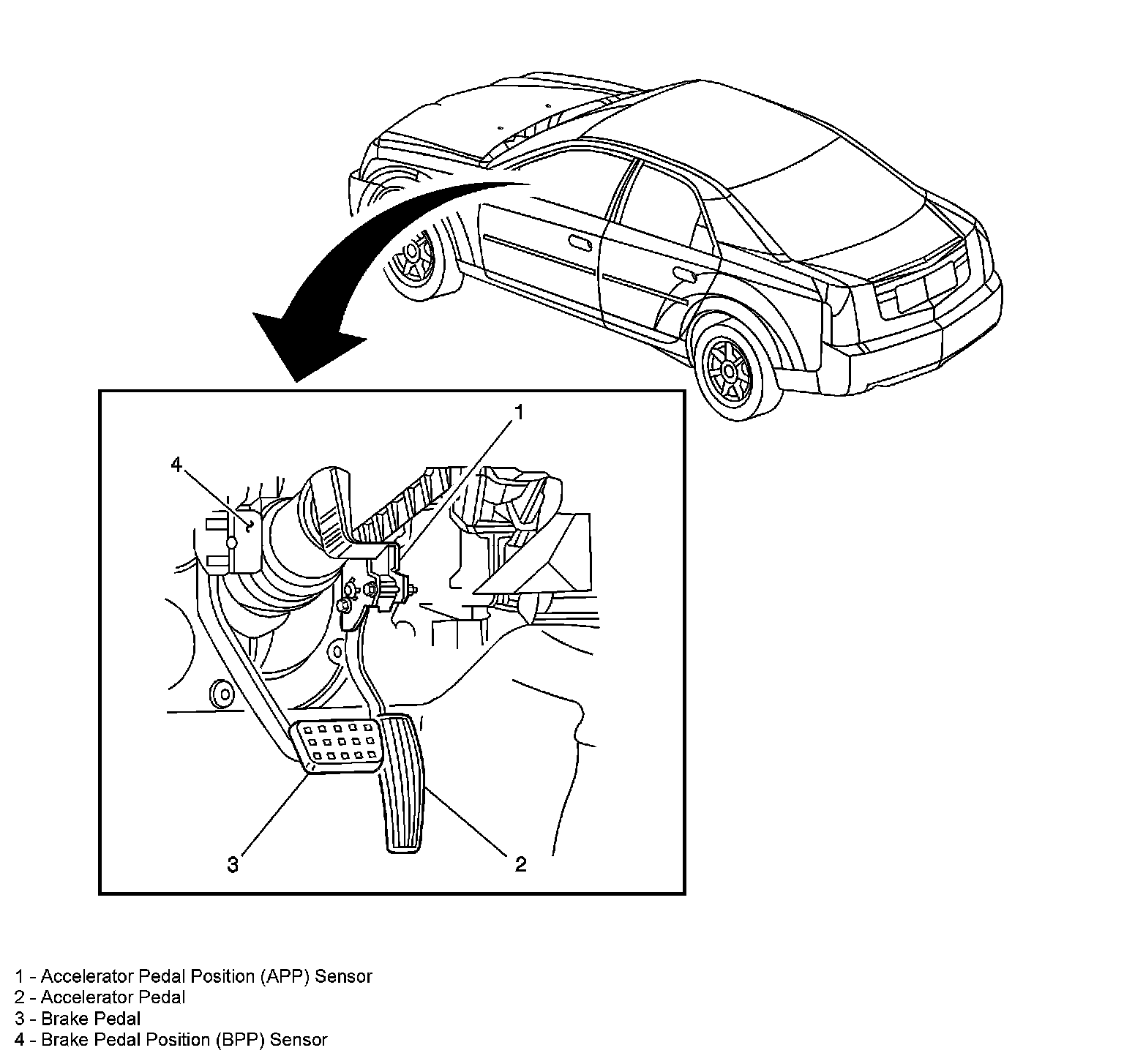

Brake Pedal, Accelerator Pedal, BPP and APP Sensors

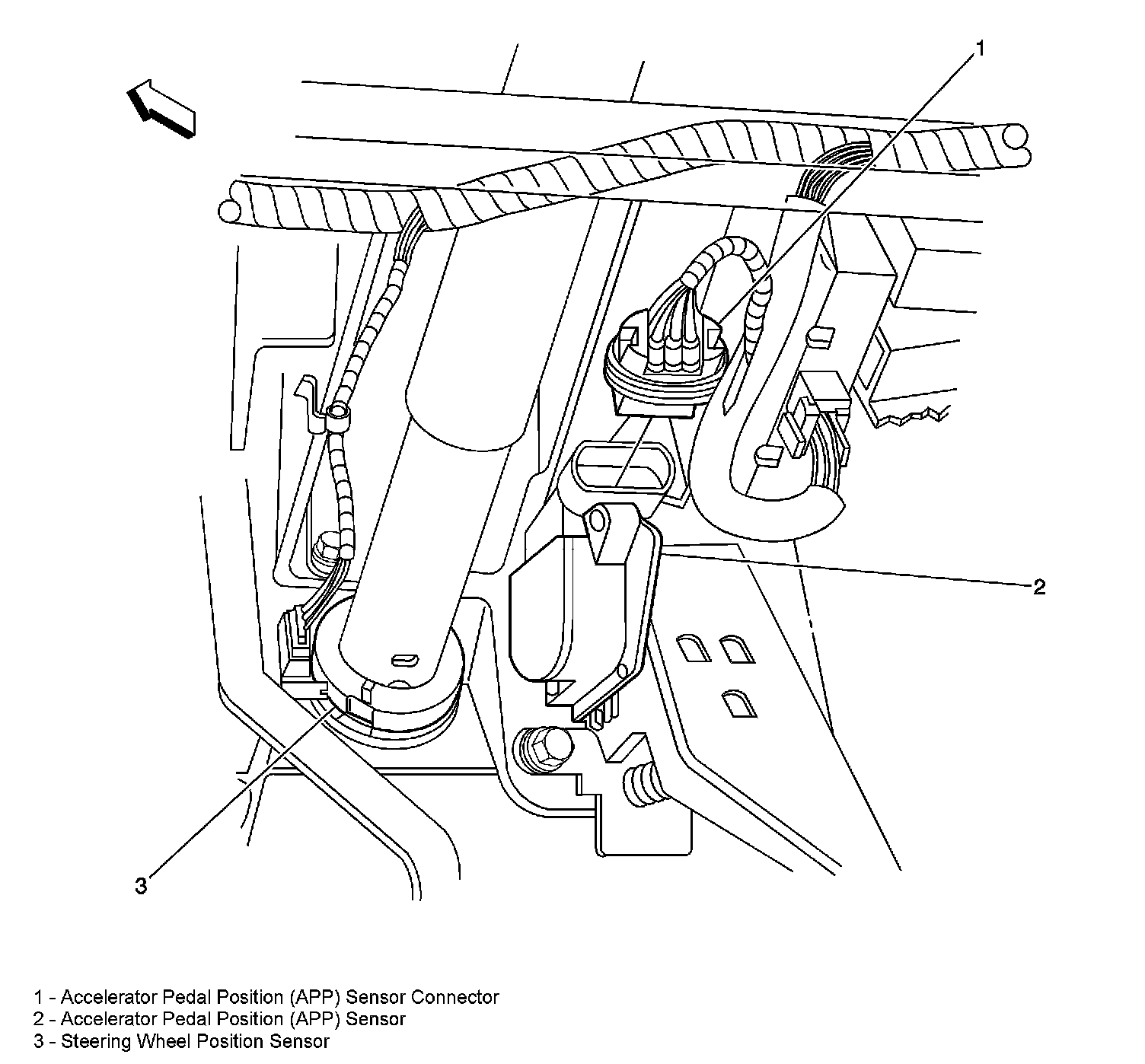

Steering Wheel Position Sensor (JL4)

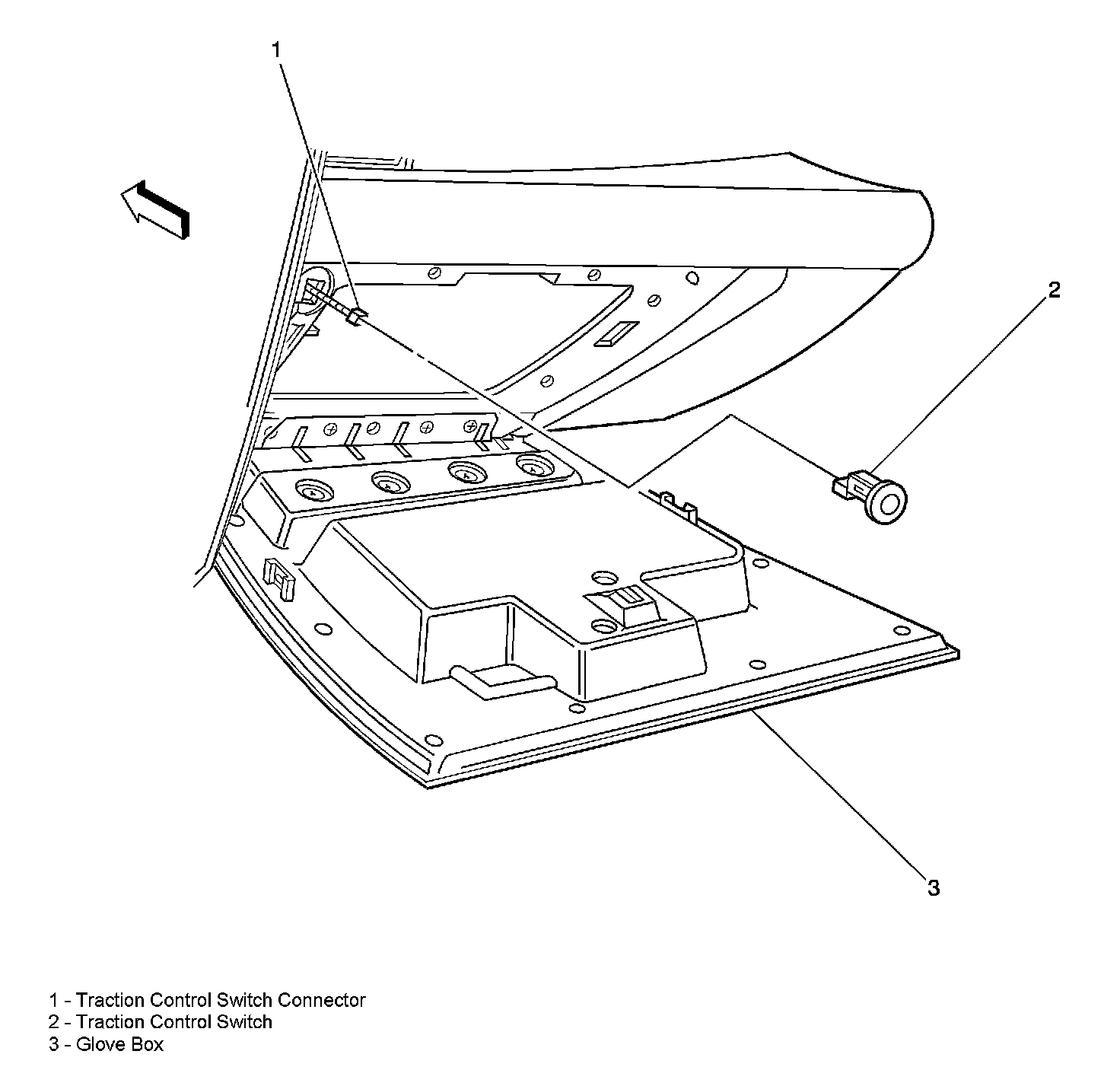

Traction Control Switch

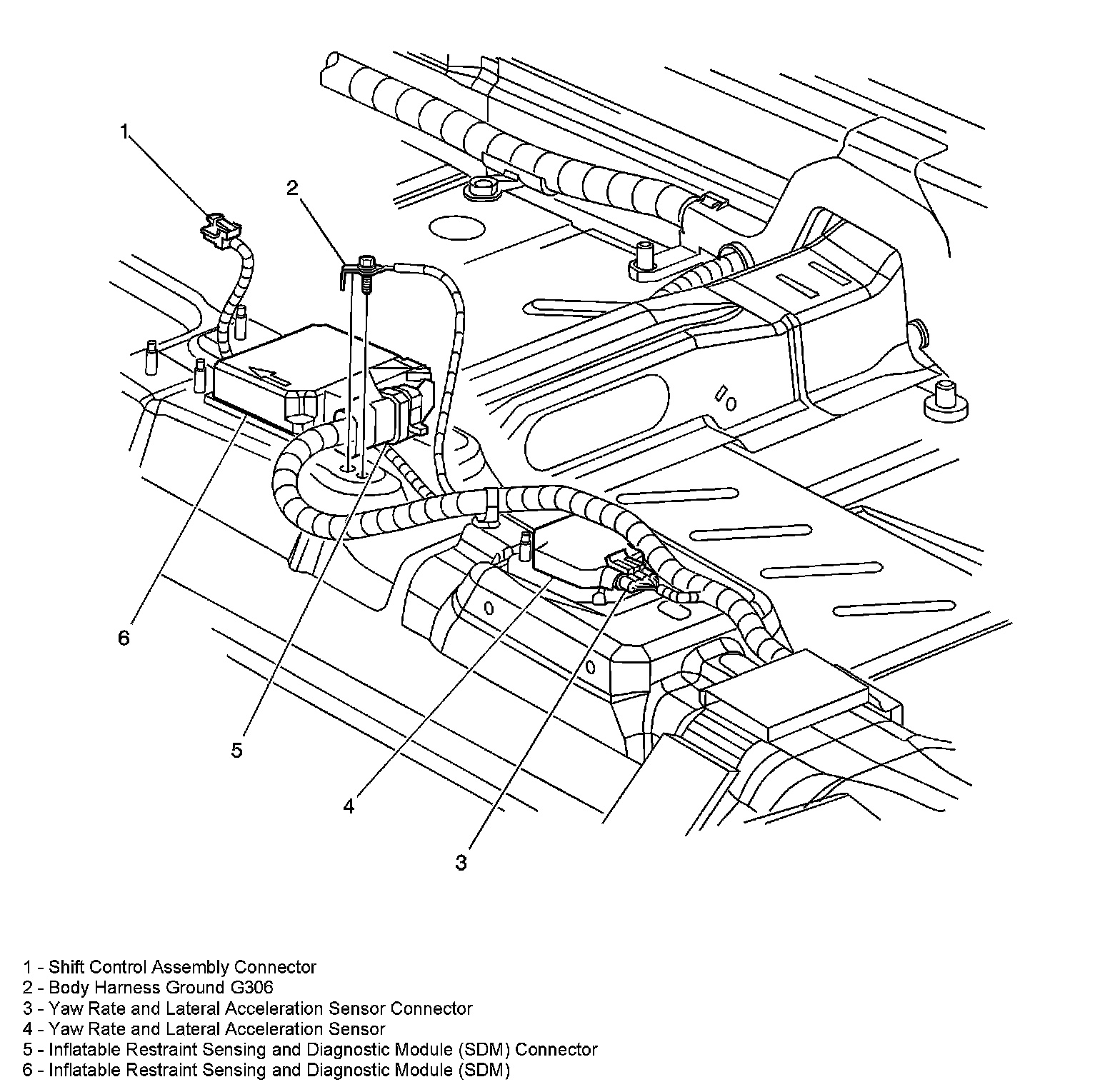

Passenger Compartment Under Center Console
