Fuel Injector Balance Test With Tech 2

FUEL INJECTOR BALANCE TEST WITH TECH 2

DESCRIPTION

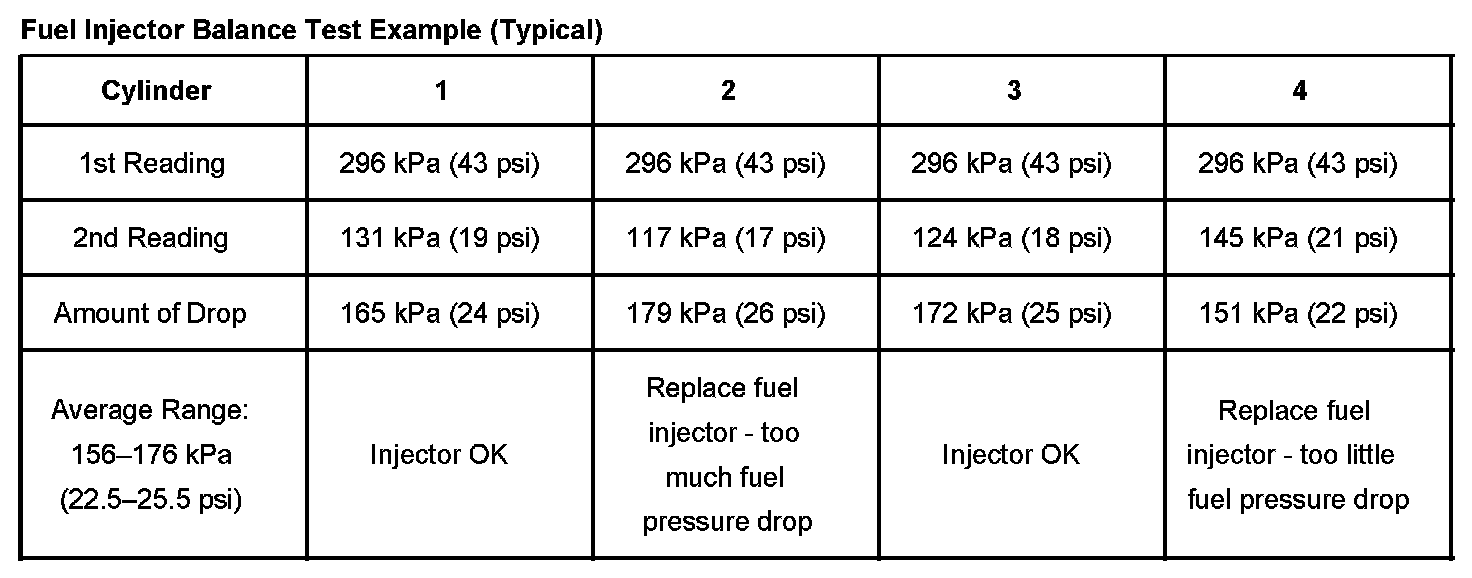

Fuel Injector Balance Test Example (Typical):




The scan tool is first used to energize the fuel pump. The fuel injector tester is then used to pulse each injector for a precise amount of time, allowing fuel into the manifold. This causes a drop in system fuel pressure that can be recorded and used to compare each injector.

TEST

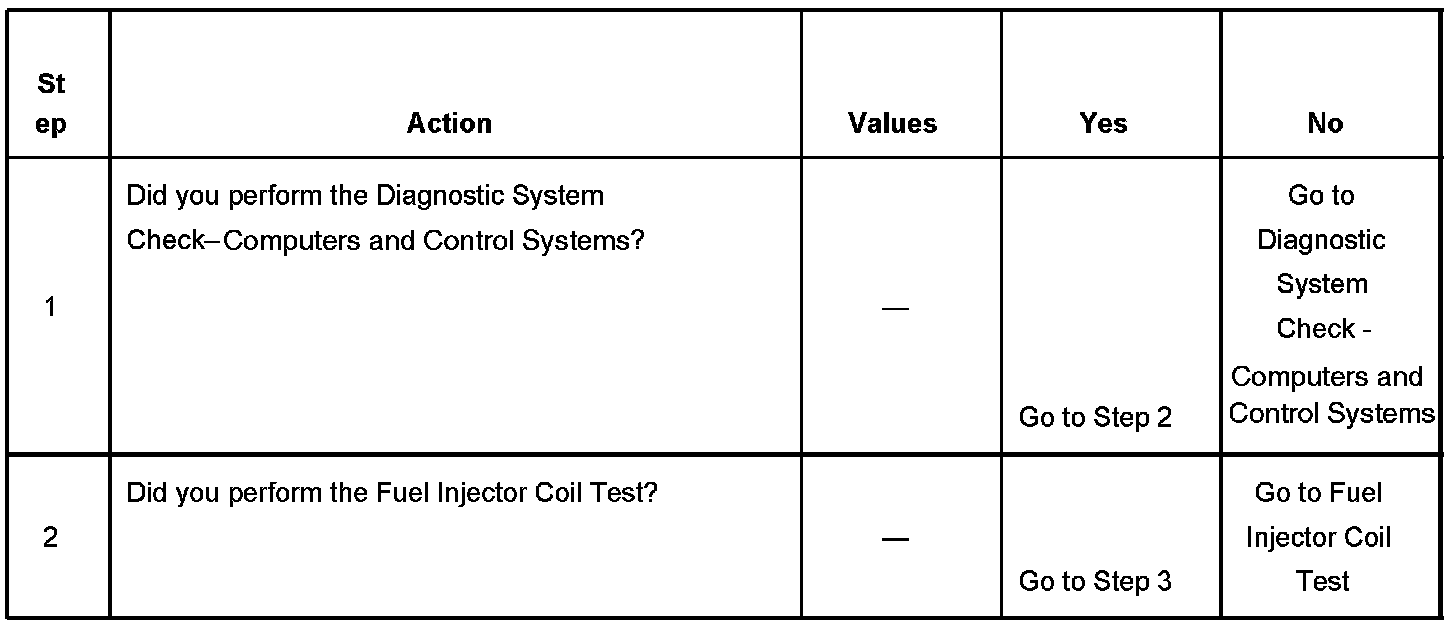

Steps 1-2:

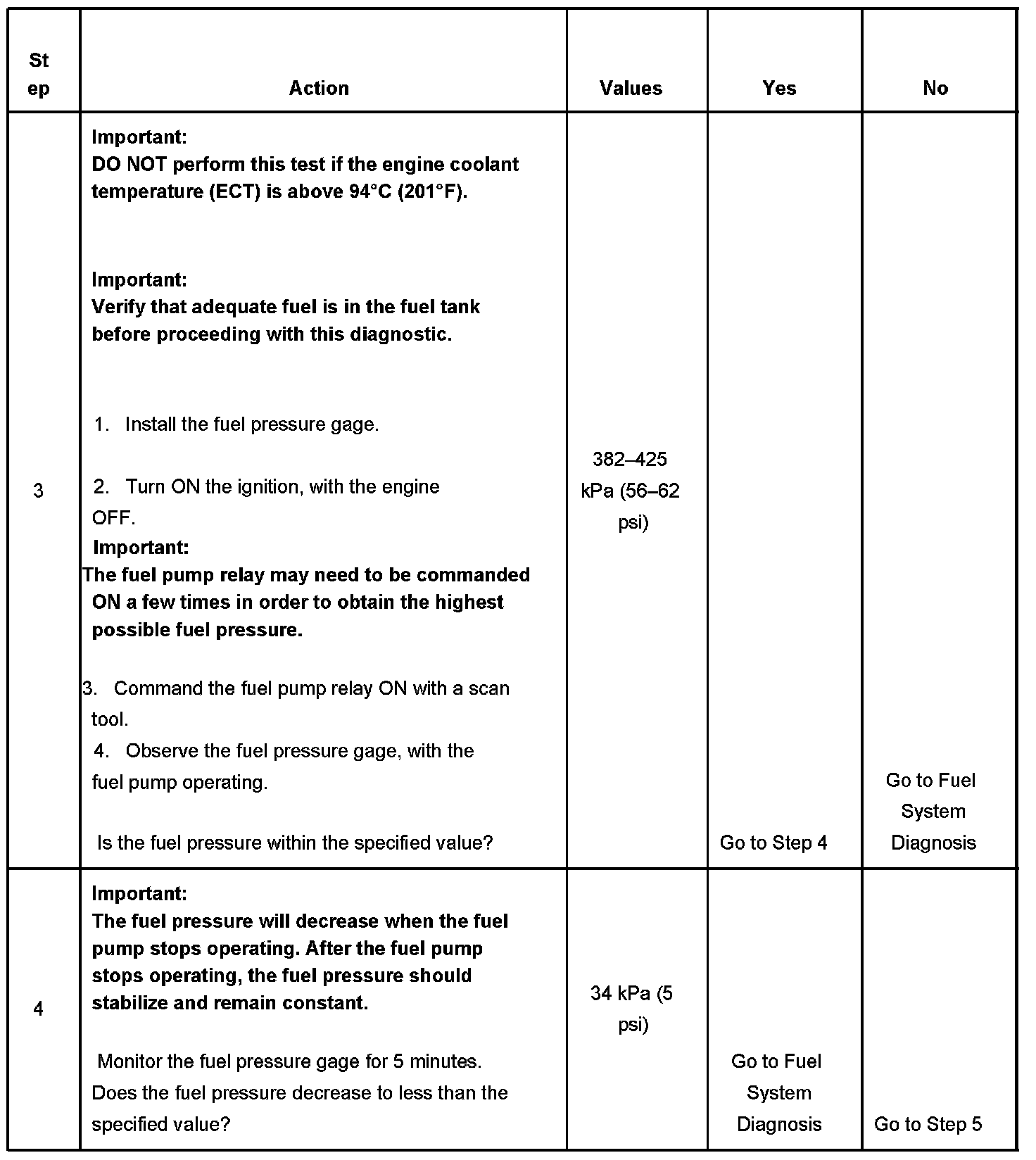

Steps 3-4:




Step 5:




Steps 6-7:
