Generator Bracket Replacement
GENERATOR BRACKET REPLACEMENTREMOVAL PROCEDURE
1. Disconnect the battery negative cable.
2. Remove the generator.
3. Remove the accessory drive belt idler pulley.

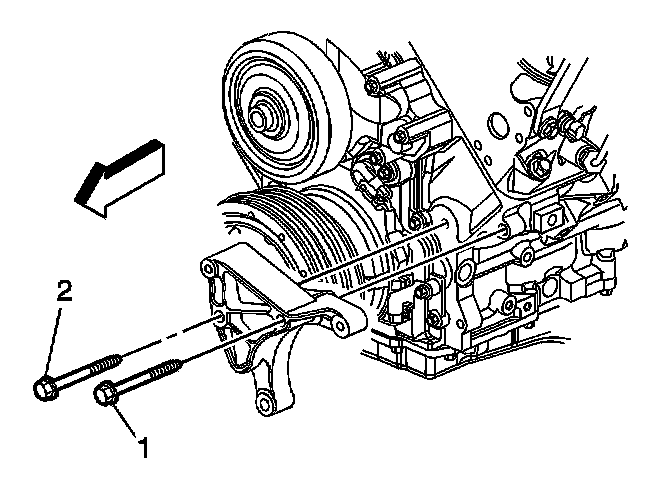

4. Remove the generator bracket bolts.
5. Remove the generator bracket from the engine.
INSTALLATION PROCEDURE
1. Install the generator bracket to the engine.
NOTE: Refer to Fastener Notice in Service Precautions.

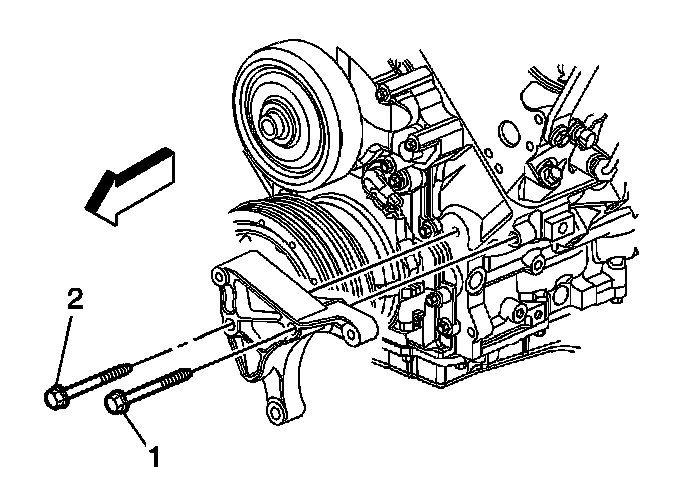

2. Install the generator bracket bolts.
Tighten
Tighten the generator bracket bolts to 50 N.m (37 lb ft).
3. Install the accessory drive belt idler pulley.
4. Install the generator.
5. Connect the battery negative cable.
