Antenna Control Module: Service and Repair

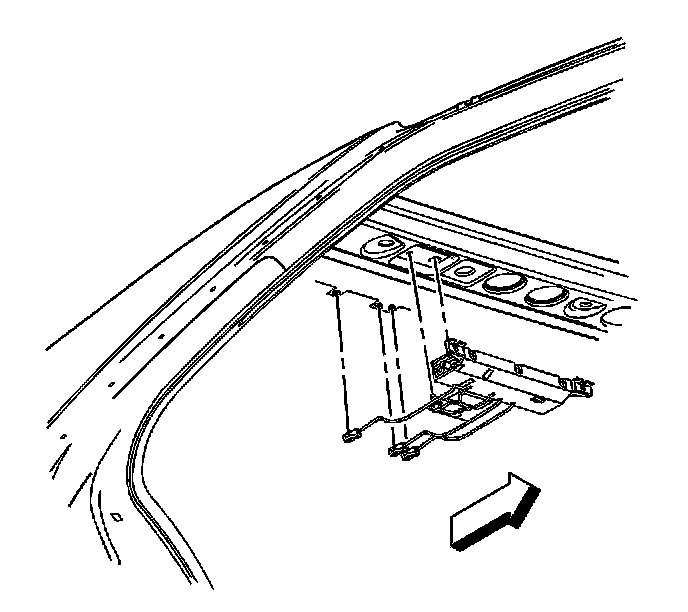

ANTENNA MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Lower the rear of the headliner. Refer to Headliner Replacement in Interior Trim.




2. Remove the bolt securing antenna module to the roof.
3. Disconnect the electrical connectors.

INSTALLATION PROCEDURE




1. Connect the electrical connectors.
2. Install the bolt securing the antenna module to the roof.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolts (1) to 9 N.m (80 lb in).

3. Install the headliner.
