Dome Lamp: Service and Repair



DOME LAMP REPLACEMENT

REMOVAL PROCEDURE




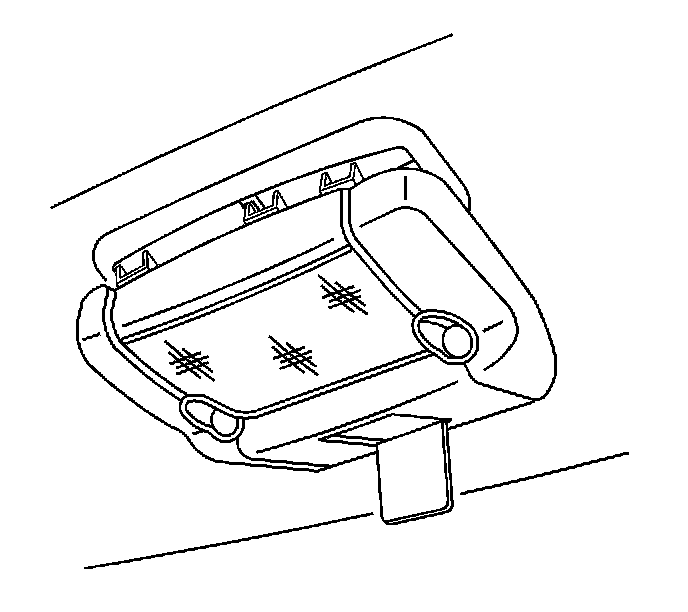

1. Open the bolt access cover (1).
2. Remove the grounding bolt (2).




3. Pull the rear edge of the housing down below the headliner.
4. Pull the assembly to the rear so that the forward snap hooks release.

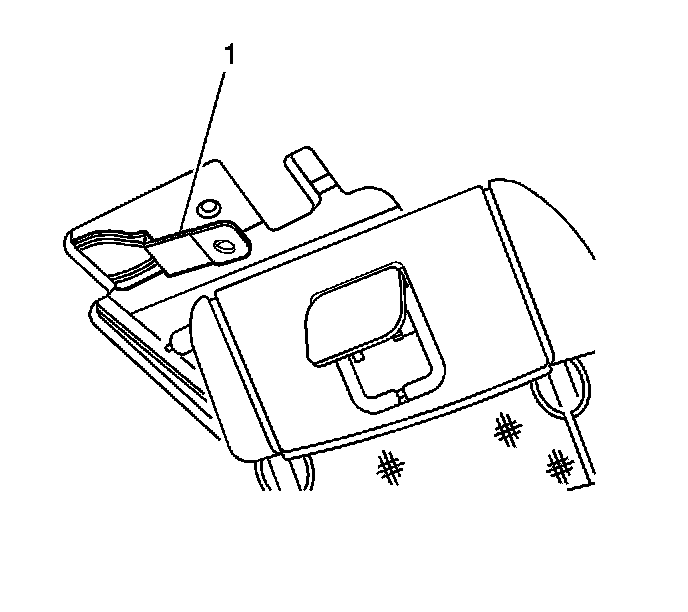

5. Slide the lamp assembly to the right to disengage the diversity module ground strap (1).
6. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Connect the electrical connector.
2. Slide the lamp assembly to the right to engage the diversity module ground strap (1).




3. Push the assembly forward so that the snap hooks engage.




4. Install the grounding bolt (2).

NOTE: Refer to Fastener Notice.

Tighten the grounding bolt to 9 N.m (80 lb in).
5. Close the bolt access cover (1).
