Marker Lamp: Service and Repair



MARKER LAMP REPLACEMENT - FRONT SIDE

REMOVAL PROCEDURE

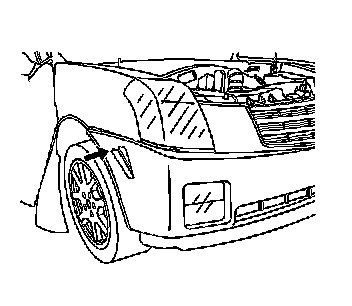

1. Remove the front fascia extension.

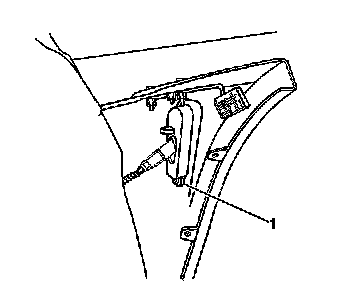

2. Remove the cornering lamp socket (1) from the cornering lamp assembly by turning it 1/4 turn counterclockwise and pulling it out.




3. Depress the tab (1) on the cornering lamp clip.
4. Push the top of the cornering lamp outward.
5. Lift upward on the cornering lamp in order to remove it from the fascia.

INSTALLATION PROCEDURE




1. Install the cornering lamp assembly to the front fascia.
2. Secure the cornering lamp to the fascia by pushing the top inward until fully seated.




3. Install the cornering lamp socket into the cornering lamp (1) by inserting it and turning it 1/4 turn clockwise.
4. Install the front fascia extension.
