Battery Tray Replacement (RHD)

BATTERY TRAY REPLACEMENT (RHD)

REMOVAL PROCEDURE
1. Remove the battery.
2. Remove the left air inlet grill panel only.




3. Remove the 2 bolts securing the front air inlet panel assembly to the battery tray.

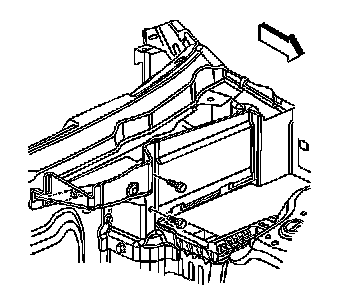

4. Remove the battery tray bolts from the following:
- The inner fender panel
- The shock tower
- The lower air inlet panel assembly
5. Remove the battery tray (1) from the vehicle.

INSTALLATION PROCEDURE

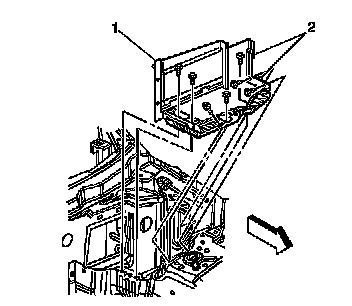

1. Position the battery tray (1) to the vehicle, locating the alignment datums (2) with the holes in the inner fender.

NOTE: Refer to Fastener Notice in Service Precautions

2. Install the battery tray bolts to the following:
- The inner fender panel
- The shock tower
- The lower air inlet panel assembly

Tighten the battery tray bolts to 6 N.m (53 lb in).




3. Install the 2 bolts securing the front air inlet panel assembly to the battery tray.

Tighten the front air inlet panel assembly bolts to 6 N.m (53 lb in).

4. Install the left air inlet grill panel.
5. Install the battery.
