Cruise Control Inoperative/Malfunctioning



CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS
Perform the following in order to avoid a misdiagnosis:
- Ensure that the following cruise control switches are not stuck in the engaged position:
- On/off switch
- Set/coast switch
- Resume/accel switch
- Inspect for proper operation of the stop lamps.
- EMI on the speed sensor signal circuit may cause erratic cruise control operation.
- For an intermittent condition, refer to Diagnostic Aids for Circuit Testing and Wiring Repair Procedures.

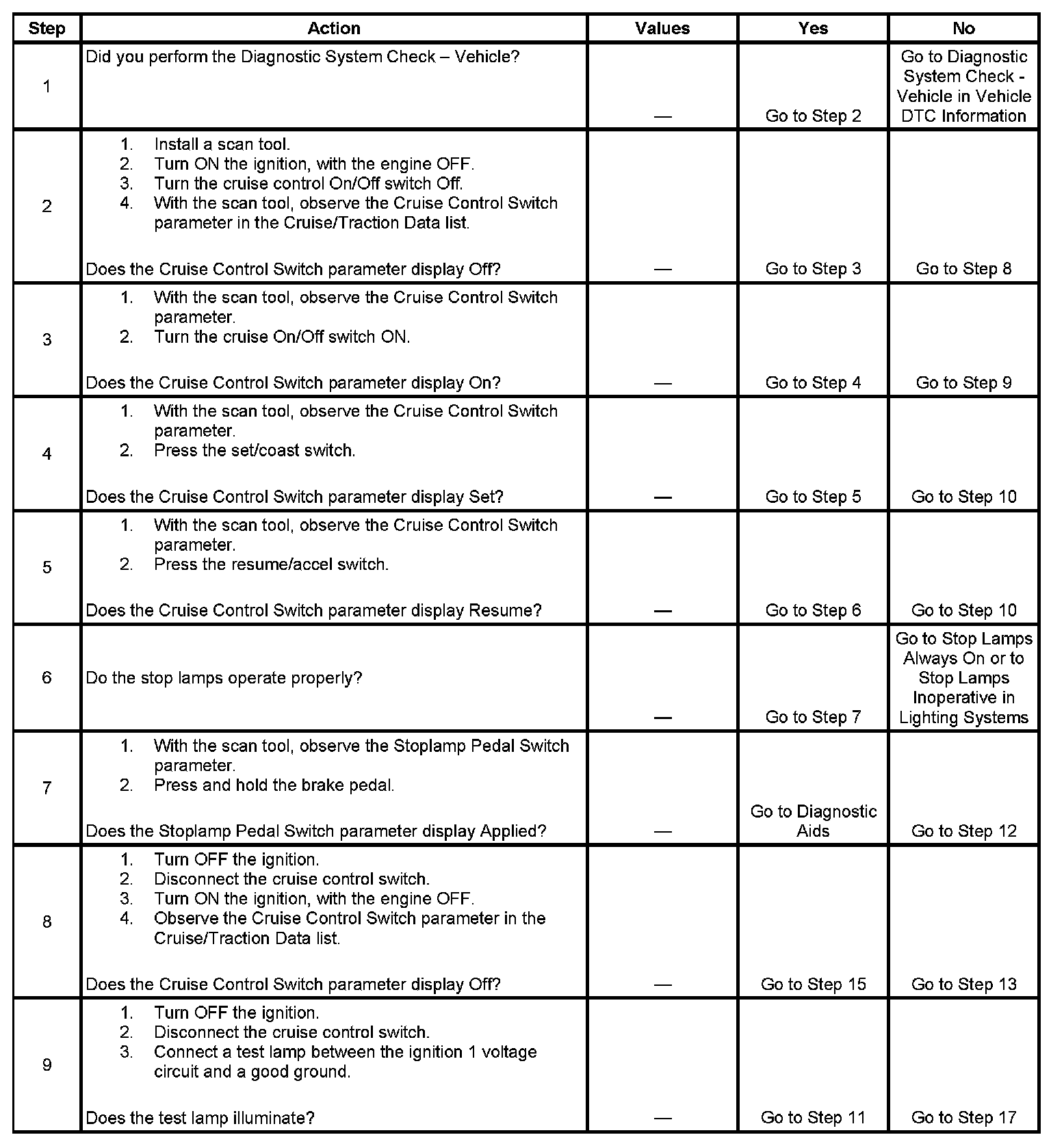

TEST

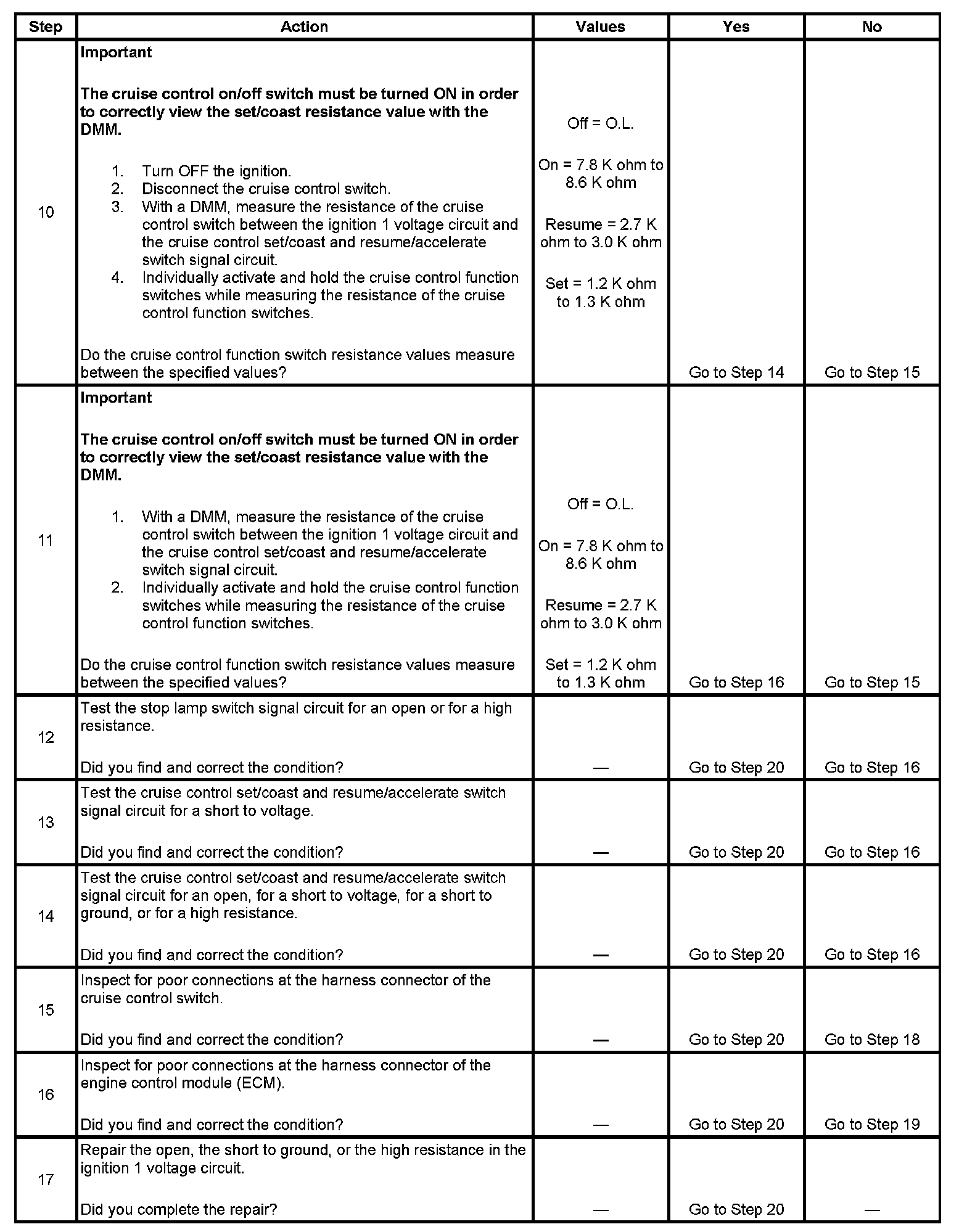

Steps 10 - 17:




Steps 18 - 20:
