Antenna Module Replacement (Driver Side)



ANTENNA MODULE REPLACEMENT (DRIVER SIDE)

REMOVAL PROCEDURE
1. Remove the rear opening weatherstrip.
2. Remove the rear quarter trim panels.
3. Loosen the front quarter trim panels.
4. Remove the rear coat hooks.
5. Remove the rear park assist display.
6. Pull the headliner down carefully to access the antenna module.




7. Disconnect the coax cables.
8. Disconnect the electrical connector.

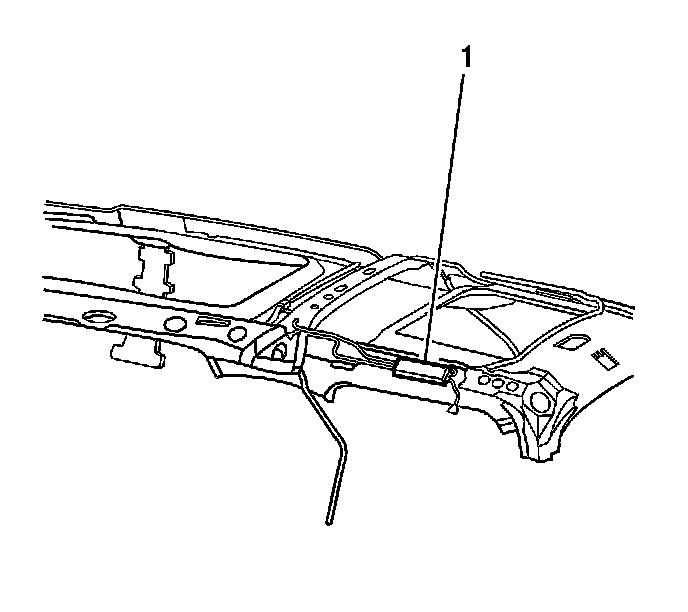

9. Slide the radio control module (1) off the mounting bracket.

INSTALLATION PROCEDURE




1. Install the radio control module (1) to the mounting bracket.
2. Connect all the electrical connectors.
3. Install the headliner.
4. Install the rear park assist display.
5. Install the rear coat hooks.

Tighten the fasteners to 10 N.m (88 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

6. Install the front quarter trim panels.
7. Install the rear quarter trim panels.
8. Install the rear opening weatherstrip.
9. Reprogram the keyless entry transmitter. Refer to Transmitter Programming in Keyless Entry.
10. Reprogram the tire pressure sensors. Refer to Tire Pressure Sensor Learn in Tire Pressure Monitoring.
