Antenna Module Replacement (Passenger Side)



ANTENNA MODULE REPLACEMENT (PASSENGER SIDE)

REMOVAL PROCEDURE
1. Remove the rear opening weatherstrip.
2. Remove the rear quarter trim panels.
3. Loosen the front quarter trim panels. Refer to Garnish Molding Replacement - Side Door Opening Frame.
4. Remove the rear coat hooks.
5. Remove the rear park assist display.
6. Pull the headliner down carefully to access the antenna module.




7. Disconnect the coax cables.
8. Disconnect the electrical connector.

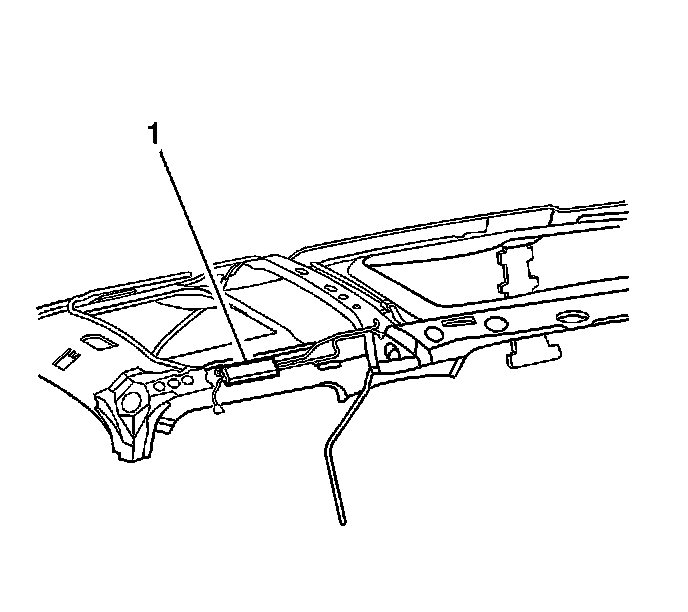

9. Slide the antenna module (1) off the mounting bracket.

INSTALLATION PROCEDURE




1. Install the antenna module (1) to the mounting bracket.
2. Connect all the electrical connectors.
3. Install the headliner.
4. Install the rear park assist display.
5. Install the rear coat hooks.

Tighten the fasteners to 10 N.m (88 lb in).

NOTE: Refer to Fastener Notice.

6. Install the front quarter trim panels.
7. Install the rear quarter trim panels.
8. Install the rear opening weatherstrip.
