System Specifications
Crankshaft Balancer Bolt
^
First Pass
100 Nm (74 ft. lbs.)
^
Final Pass
150 Degrees

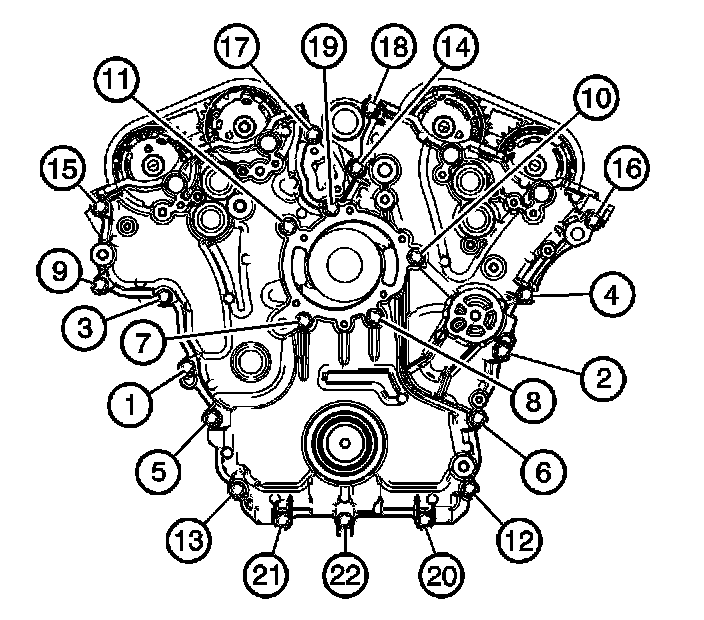

Engine Front Cover Bolt
23 Nm (17 ft. lbs.)
Primary Camshaft Drive Chain
Tensioner Bolt
23 Nm (17 ft. lbs.)
Secondary Camshaft Drive Chain
Tensioner Bolt
23 Nm (17 ft. lbs.)
