Cylinder Head Assembly

Cylinder Head
Cylinder Head Deck Height 224.55 mm (8.8406 inch)
Cylinder Head Deck Surface Flatness 0.100 mm (0.0039 inch)

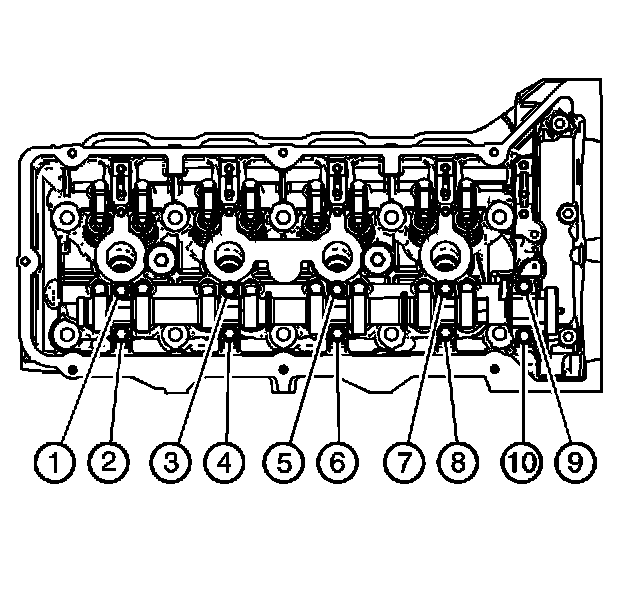

Exhaust - Right:

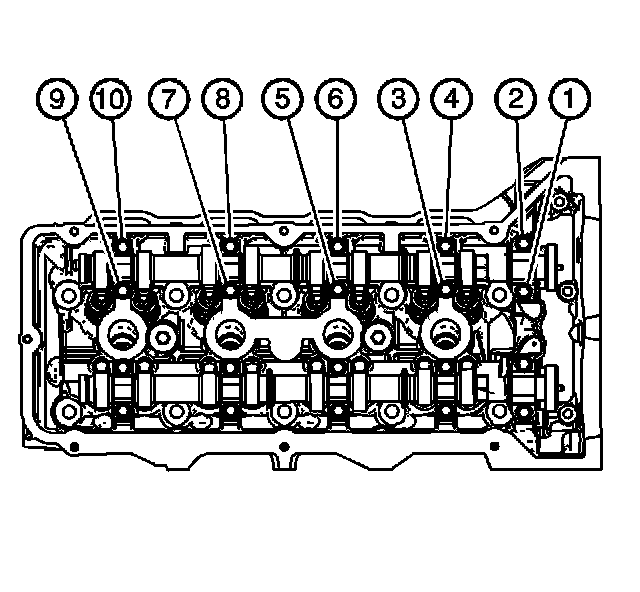

Intake - Right:

Camshaft Bearing Cap Bolt 12 Nm (106 inch lbs.)

Camshaft Intermediate Drive Shaft
Bolt 10 Nm (89 inch lbs.)
Sprocket Bolt 60 Nm (44 ft.

Left:

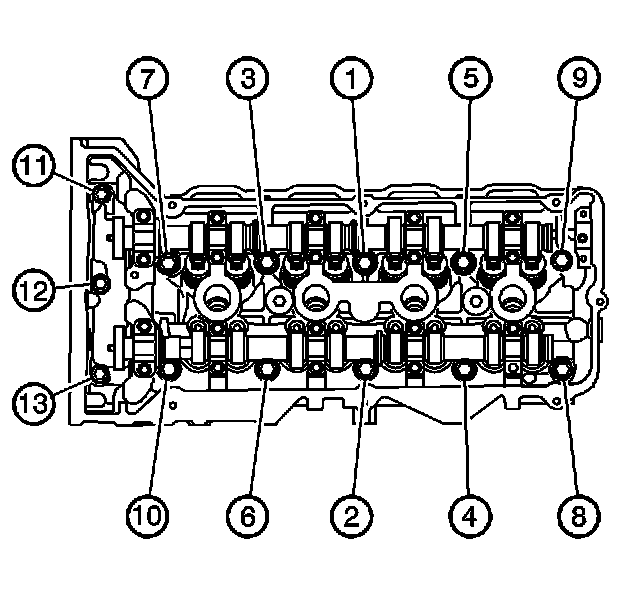

Cylinder Head Bolt

DO NOT reuse the old M11 cylinder head bolts.

M11
First Pass - In Sequence 30 Nm (22 ft. lbs.)
Second Pass - In Sequence 60 degrees
Third Pass - In Sequence 60 degrees
Final Pass - In Sequence 60 degrees, total 180 degrees
M6 12 Nm (106 inch lbs.)

Exhaust Manifold
Bolt 25 Nm (18 ft. lbs.)
Nut 25 Nm (18 ft. lbs.)





Intake Manifold

Mounting Bolt 10 Nm (89 inch lbs.)
Brake Booster Hose Fitting 2 Nm (18 inch lbs.)

Throttle Body Bolt 10 Nm (89 inch lbs.)
