Coolant Line/Hose: Service and Repair

Coolant Bypass Hose Replacement (LH2)
Removal Procedure





1. Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) Draining and Filling Cooling System (GE 47719) .
2. Remove the air cleaner outlet duct.
3. Compress the clamp, and remove the heater outlet hose (3) from the thermostat housing in order to gain access to the bypass hose.

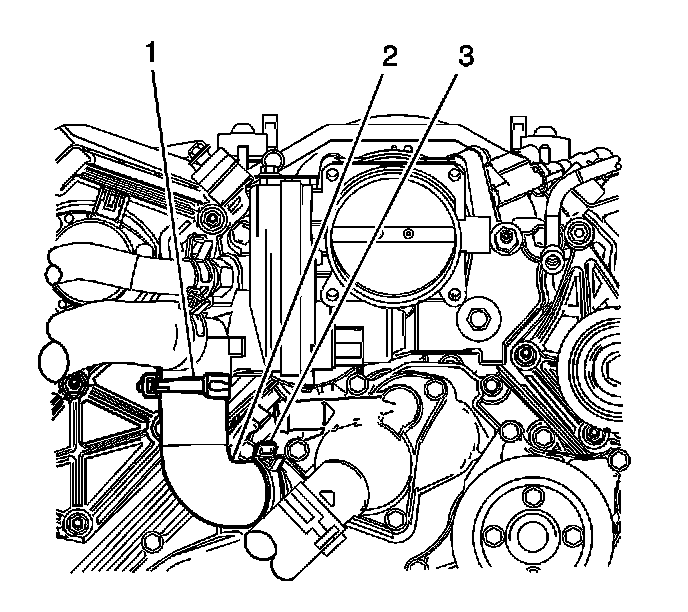

4. Compress the clamps (1, 3) and remove the bypass hose (2) from the water outlet housing and the front cover.

Installation Procedure





1. Compress the clamps (1, 3) and install the bypass hose (2) to the water outlet housing and the front cover.





2. Compress the clamp, and install the heater outlet hose (3) to the thermostat housing.
3. Install the air cleaner outlet duct.
4. Fill the cooling system. Refer to Draining and Filling Cooling System (Static Fill) Draining and Filling Cooling System (GE 47719) .
5. Check the cooling system for leaks.
