SP300 - SP399

Power and Grounding Component Views

Passenger - LR Area




1 - G306
2 - Inflatable Restraint Roof Rail Module - Left
3 - C321 Body Harness to Headliner Harness
4 - Traffic Information Receiver
5 - C445 Body Harness to Rear Shelf Harness
6 - C313 Body Harness to LR Seat Harness
7 - Splice Pack SP300
8 - G301
9 - Fuse Block - Rear
10 - Audio Amplifier

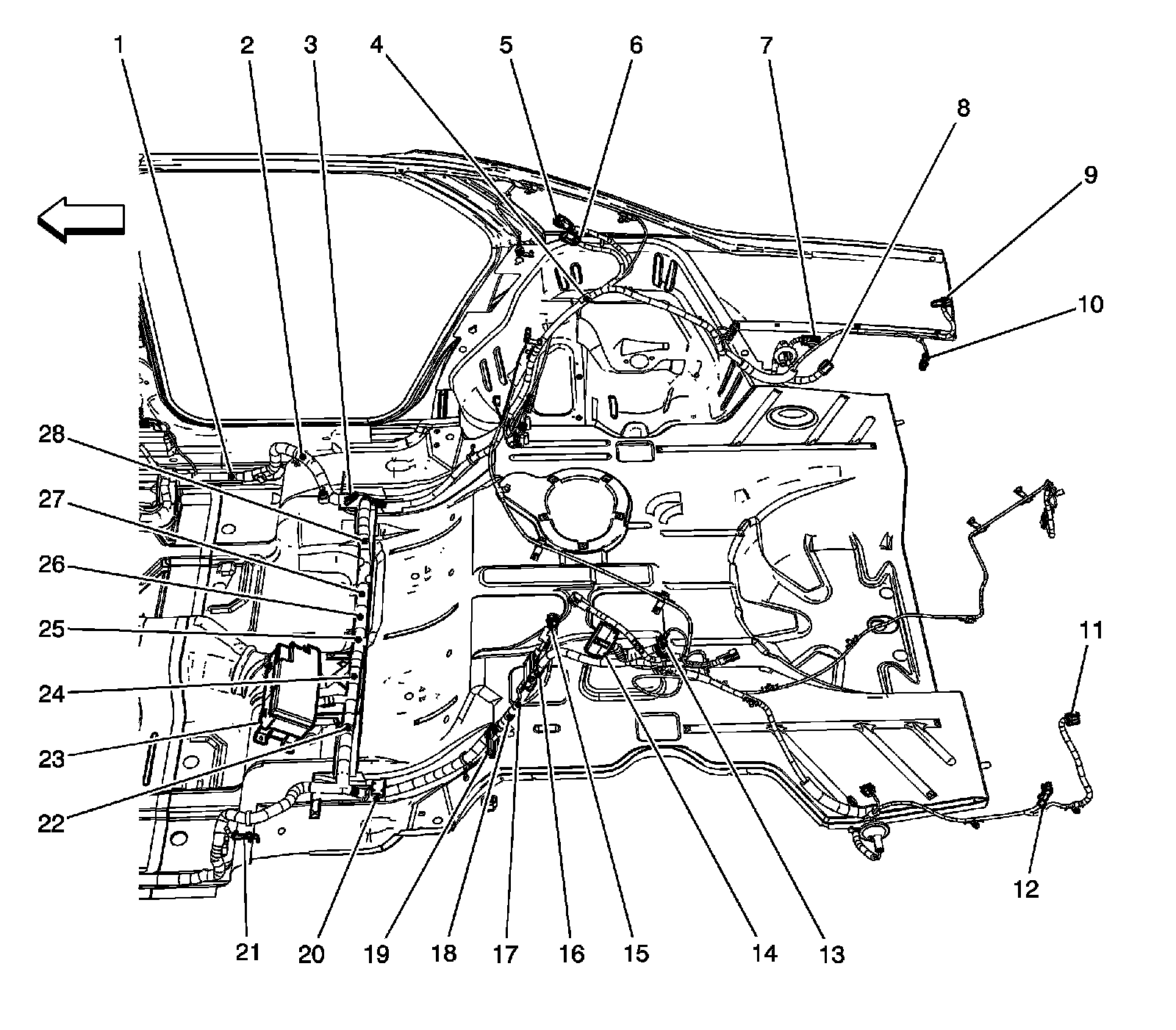

Body Harness - Rear Compartment




1 - S326
2 - S325
3 - C124
4 - S324
5 - C397
6 - C395
7 - C494
8 - C309
9 - C499
10 - G403
11 - C498
12 - G402
13 - G306
14 - C321
15 - S366
16 - C445
17 - S365
18 - S372
19 - C313
20 - SP300
21 - G301
22 - S374
23 - Fuse Block - Rear
24 - C323
25 - S317
26 - S380
27 - S373
28 - S337
