System Specifications

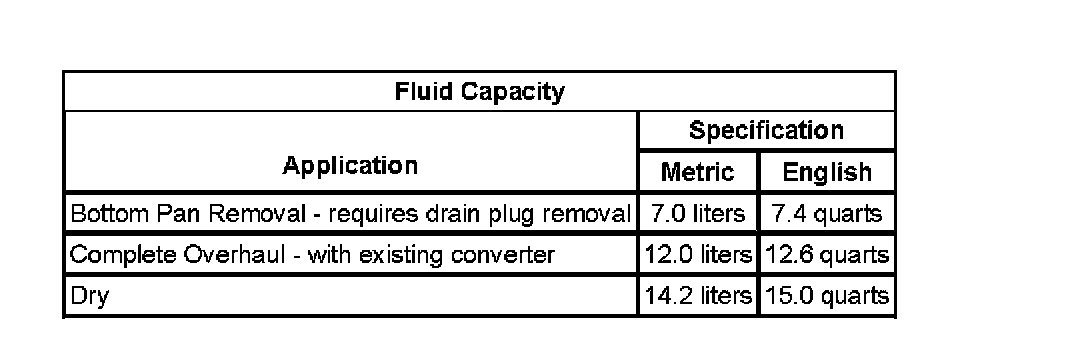

Fluid Capacity SpecificationsFluid Capacity Specifications:
AUTOMATIC TRANSAXLE FLUID CAPACITY BOTTOM PAN REMOVAL Requires drain plug removal
7.0 liters (7.4 quarts)
COMPLETE OVERHAUL With existing converter
12.0 liters (12.6 quarts)
Dry
14.2 liters (15.0 quarts)
NOTE: All capacities are approximate. When adding, be sure to fill to the approximate level. Recheck fluid level after filling.
