Standard Cooling



Radiator Replacement (LH2 - Standard Cooling)

Tools Required

J 38185 Hose Clamp Pliers

Removal Procedure

1. Drain the coolant. Refer to Draining and Filling Cooling System (GE 47716) Draining and Filling Cooling System (Static Fill).
2. Remove the electric cooling fan.




3. Remove the upper condenser mounting bolts.




4. Remove the lower condenser mounting bolts.




5. Disconnect the side air baffle lower retaining pins from the radiator.

Important: Reposition the condenser to access the transmission oil cooler mounting bolts.

6. Remove the transmission oil cooler (TOC) mounting bolts.
7. Lower the vehicle.




8. Using the J 38185, disengage the tension on the hose clamp and remove the radiator outlet hose from the radiator.




9. Using the J 38185, disengage the tension on the hose clamp and remove the radiator inlet hose from the radiator.




10. Using the J 38185, disengage the tension on the hose clamp and remove the surge tank inlet hose from the radiator.

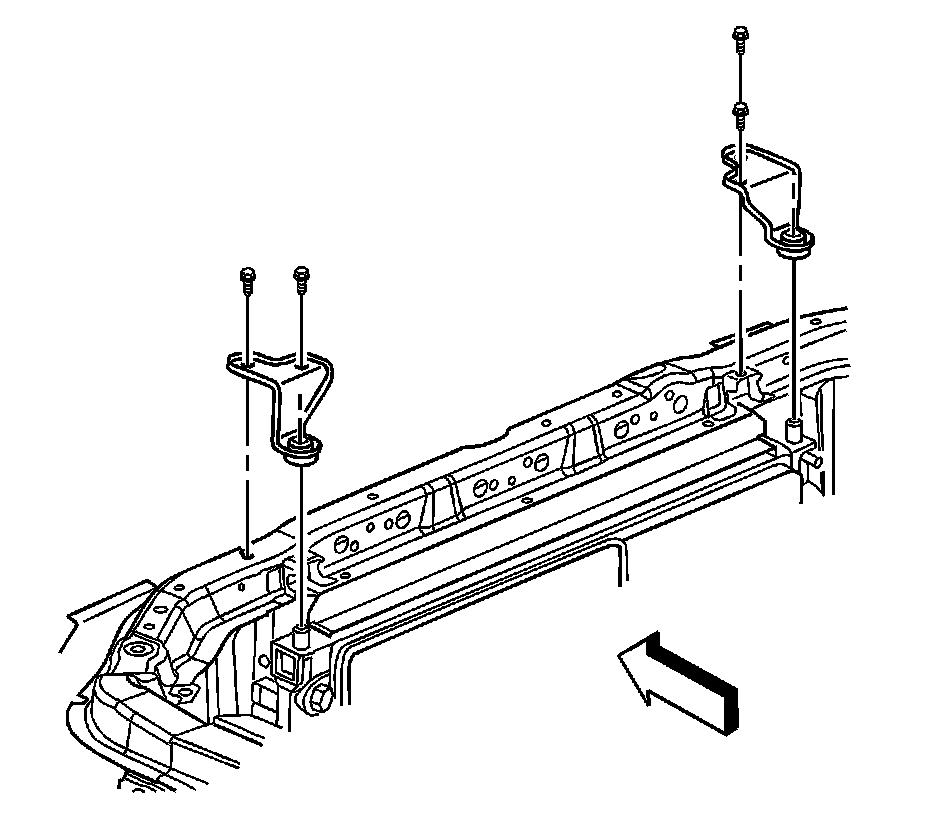

11. Remove the radiator support bracket bolts.
12. Remove the radiator support brackets.
13. Disconnect the upper air baffle retaining pins from the radiator.
14. Remove the radiator.

Installation Procedure

1. Install the radiator.
2. Connect the upper air baffle retaining pins to the radiator.
3. Install the radiator support brackets.

Notice: Refer to Fastener Notice.




4. Install the radiator support bracket bolts.

Tighten the bolts to 9 N.m (80 lb in).




5. Connect the surge tank inlet hose to the radiator and using the J 38185, position the surge tank inlet hose clamp to secure the hose.




6. Connect the radiator inlet hose to the radiator and using the J 38185, position the radiator inlet hose clamp to secure the hose.




7. Connect the radiator outlet hose to the radiator and using the J 38185, position the radiator outlet hose clamp to secure the hose.
8. Raise and support the vehicle.
9. Install the TOC mounting bolts.

Tighten the bolts to 5 N.m (44 lb in).




10. Connect the side air baffle lower retaining pins to the radiator.




11. Install the lower condenser mounting bolts.

Tighten the bolts to 6.5 N.m (58 lb in).




12. Install the upper condenser mounting bolts.

Tighten the bolts to 6.5 N.m (58 lb in).

13. Install the electric cooling fan.
14. Fill the cooling system. Refer to Draining and Filling Cooling System (GE 47716) Draining and Filling Cooling System (Static Fill).
