Oil Pump: Specifications
Oil Pump
Cover Bolt
12 N.m (106 lb in)
Mounting Bolt
First Pass
10 N.m (89 lb in)
Final Pass
35 degrees

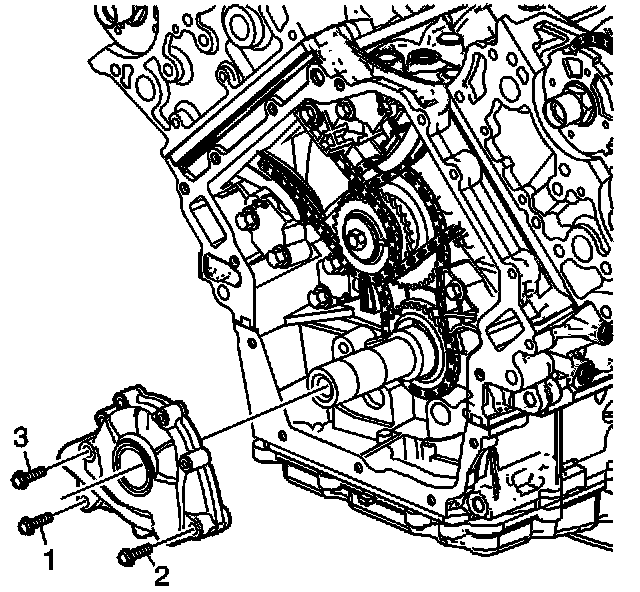

Apply upward pressure on the pump while tightening the three retaining bolts. Tighten the bolts in the sequence (1, 2, 3) shown.
