Auxiliary Blower Motor: Service and Repair



Auxiliary Blower Motor Replacement

Removal Procedure




1. Remove the left body side trim access panel.




2. Disconnect the blower motor electrical connector.

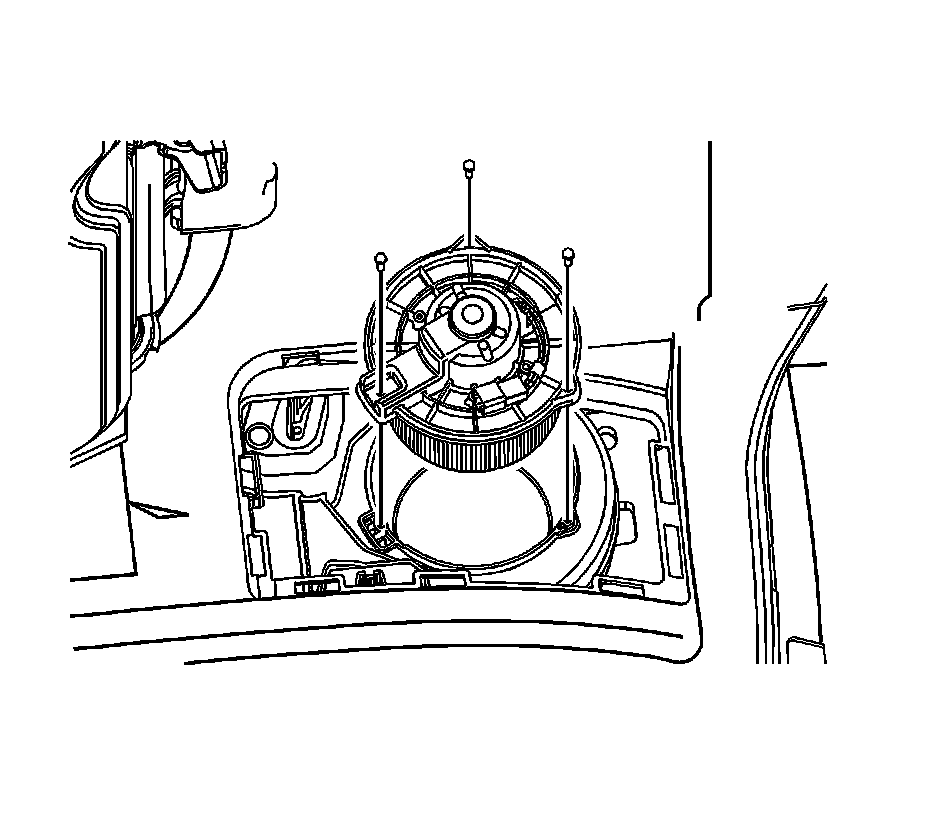

3. Remove the blower motor screws from the HVAC module.
4. Remove the blower motor from the HVAC module.

Installation Procedure




1. Install the blower motor to the HVAC module.

Notice: Refer to Fastener Notice.

2. Install the blower motor screws.

Tighten the screws to 1 N.m (9 lb in).

3. Connect the blower motor electrical connector.




4. Install the left body side trim access panel.
