Battery Tray Replacement (LHD)

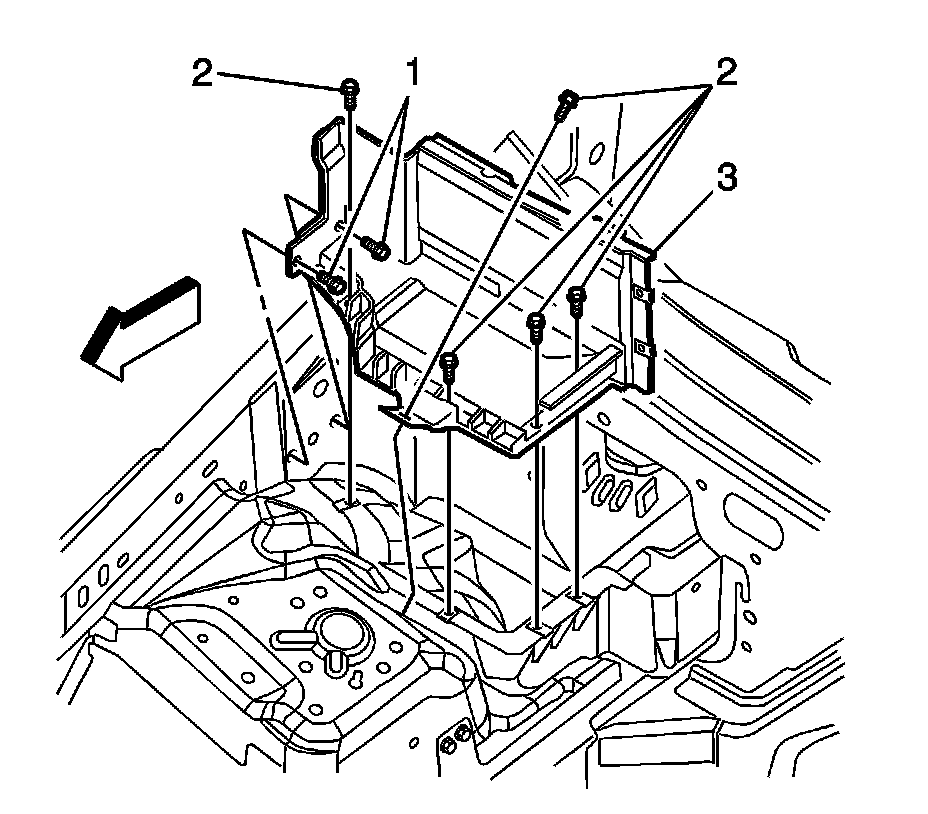

Battery Tray Replacement (LHD)Removal Procedure 1.
Remove the battery.
2.
Remove the
battery tray bolts (1, 2).
3.
Remove the
battery tray (3) from the vehicle.
Installation Procedure 1.
Install the
battery tray (3) into the vehicle.
Notice: Refer to Fastener Notice.
2.
Install the
battery tray bolts (1, 2).
Tighten the bolts to 6 N.m (53 lb in). 3.
Install the battery.
