Differential Axle Housing: Service and Repair
Differential Housing Support Bushing Replacement (Solid Rubber Bushing)Tools RequiredJ 45007 Bushing Remover/Installer
Removal Procedure 1.
Remove the
differential assembly.
2.

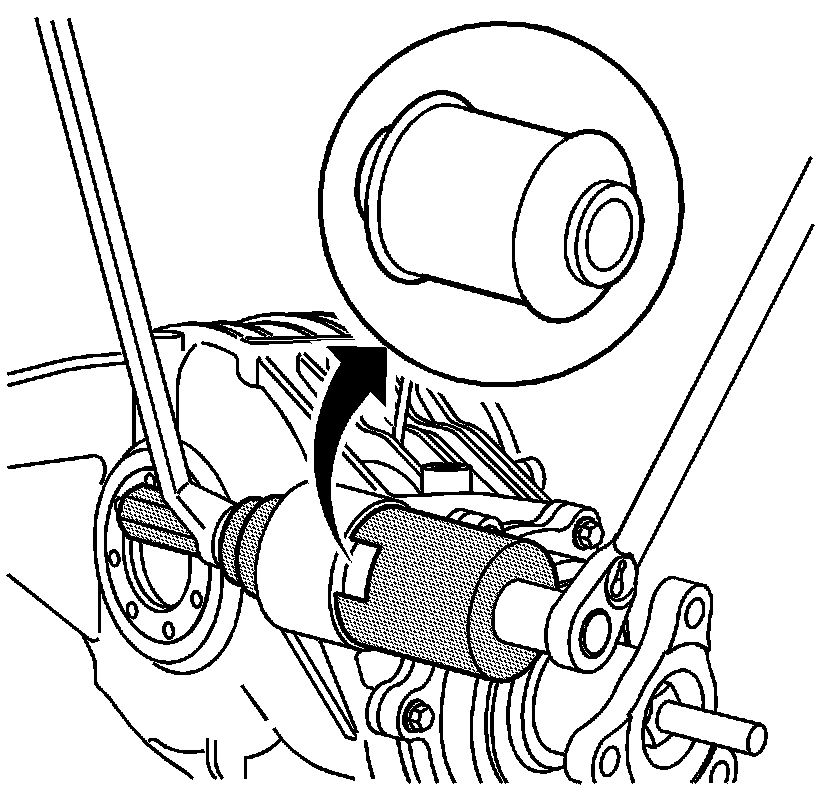

Using the J 45007, remove the housing support bushing.
Installation Procedure 1.
Using the J 45007, install the housing support bushing.
2.
Install the
differential assembly.
