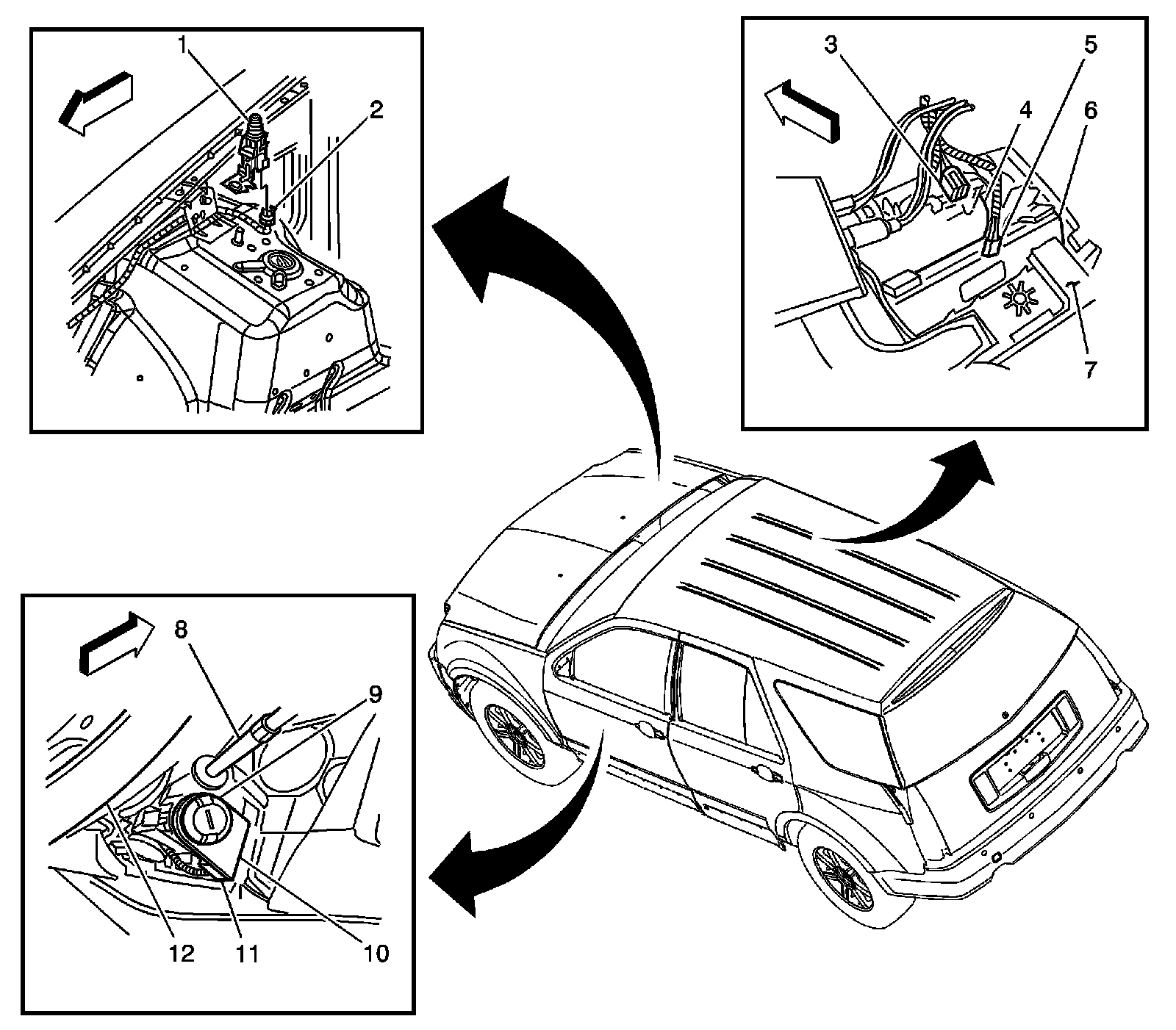

Theft Deterrent System Component Views (LHD)

Theft Deterrent System Component Views (LHD)




1 - Hood Ajar Switch (UA6)
2 - Hood Ajar Switch Connector (UA6)
3 - Dome Lamp Connector
4 - Dome Lamp
5 - Intrusion Sensor Connector (UA6)
6 - Intrusion Sensor (UA6)
7 - Headliner
8 - Windshield Wiper/Washer Switch
9 - Ignition Lock Solenoid
10 - Theft Deterrent Module (TDM) - (UA6)
11 - Theft Deterrent Module (TDM) Connector (UA6)
12 - Steering Wheel

Steering Column




1 - Ignition Switch
2 - Theft Deterrent Module (TDM)
