Wheel Speed Sensor: Locations

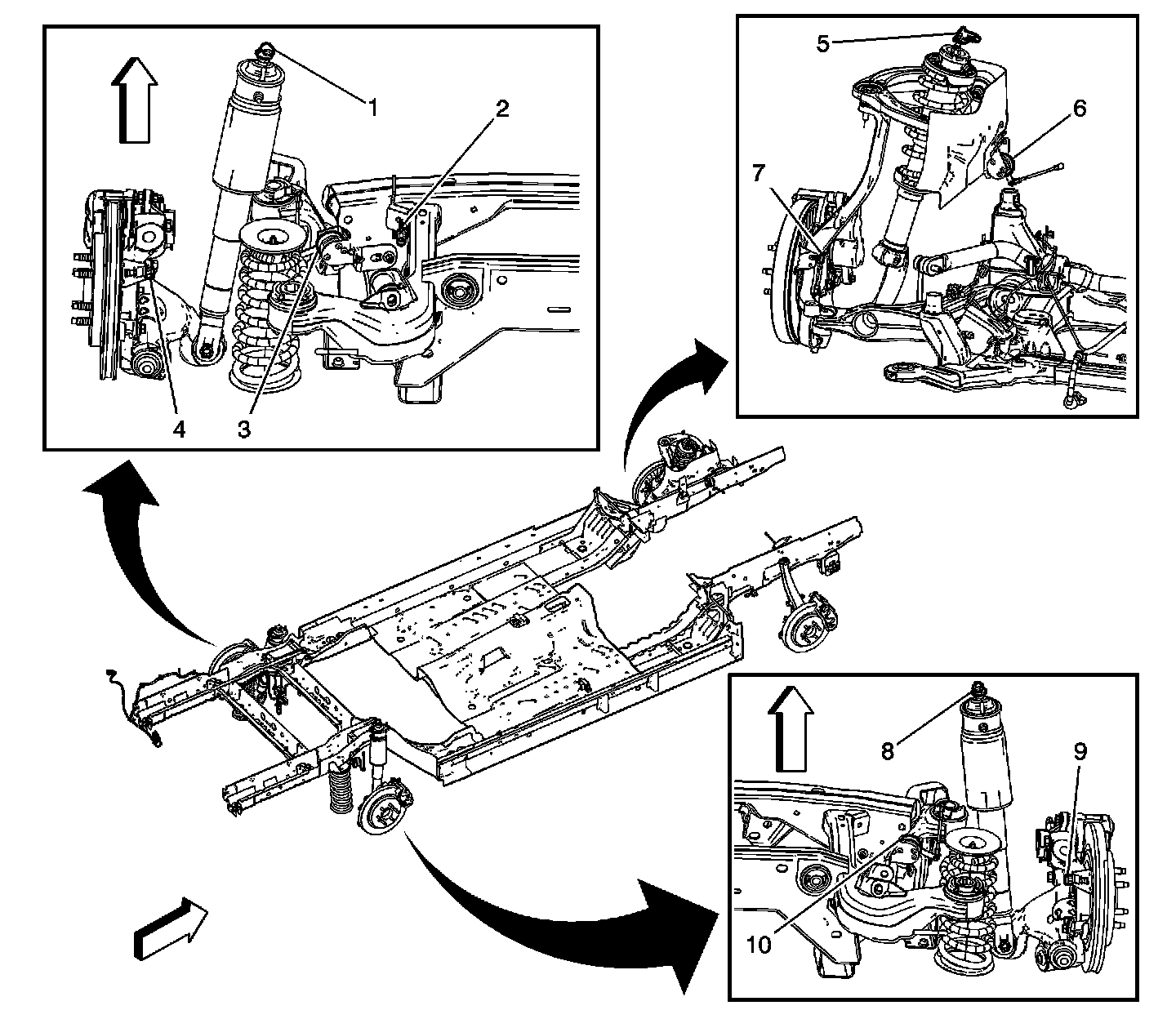

Wheel Speed Sensors

Wheel Speed Sensors:




1 - Suspension Damper - LR (F55)
2 - Suspension Position Sensor Extension Harness Connector - LR (F55)
3 - Suspension Position Sensor - LR (F55)
4 - Wheel Speed Sensor (WSS) - LR
5 - Suspension Damper - LF (F55)
6 - Suspension Position Sensor - LF (F55)
7 - Wheel Speed Sensor (WSS) - LF (RF Similar)
8 - Suspension Damper - RR (F55)
9 - Wheel Speed Sensor (WSS) - RR
10 - Suspension Position Sensor - RR (F55)

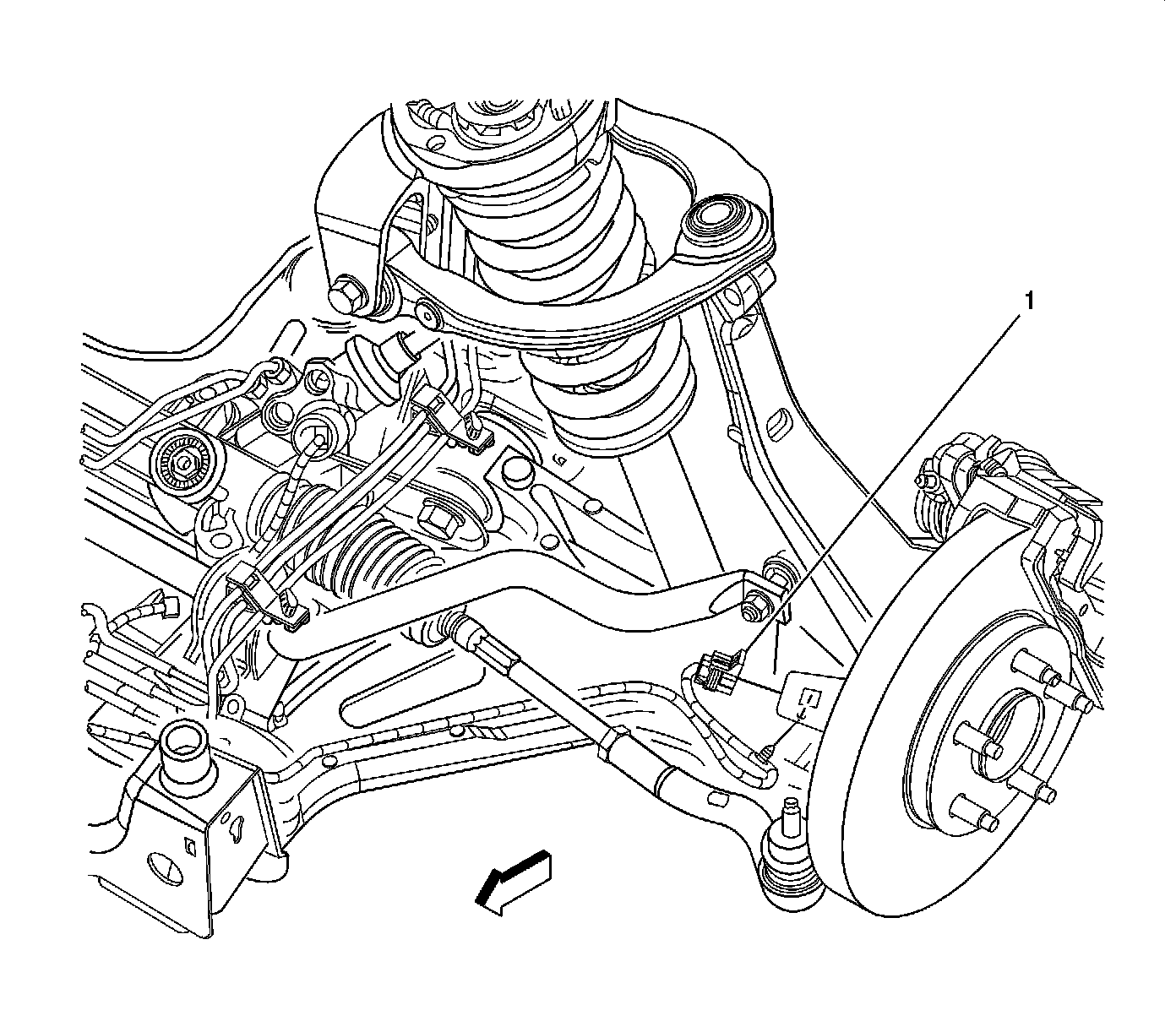

Left Front of Vehicle Near the Wheel

Left Front of Vehicle Near the Wheel:




1 - Wheel Speed Sensor - Left Front (Right Front Side Similar)
