Power Seat Motor

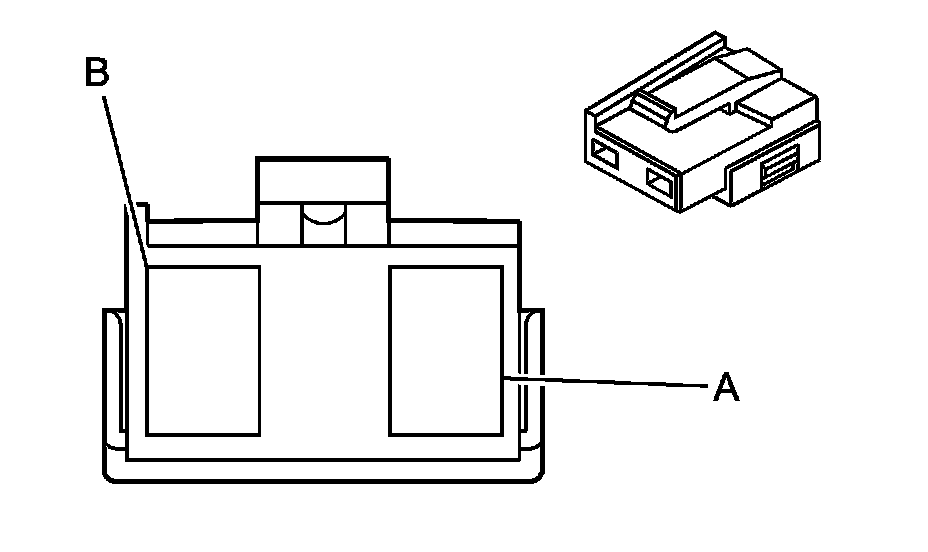

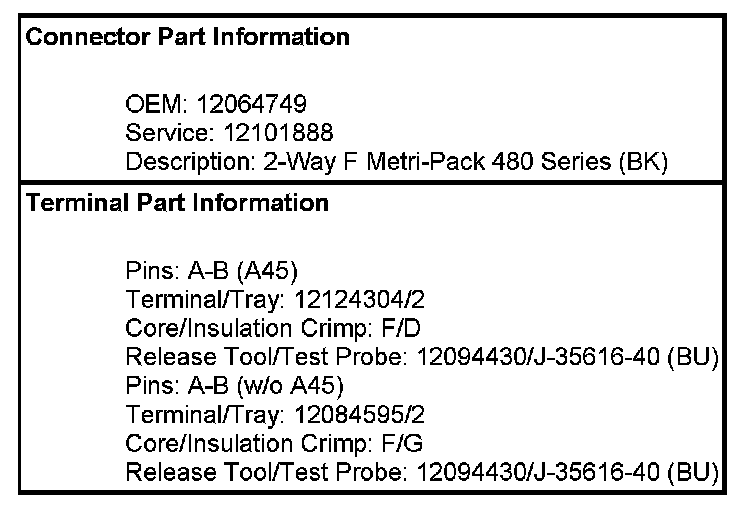

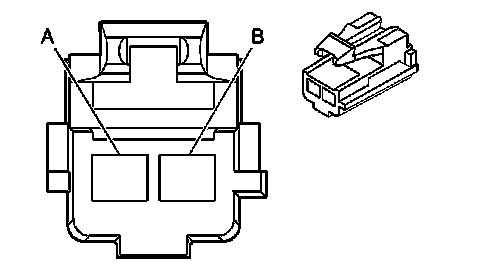

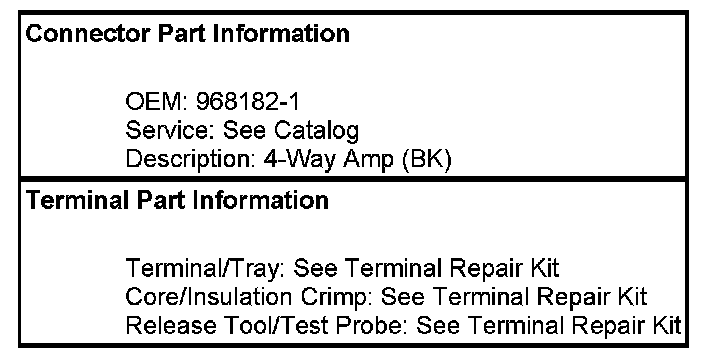

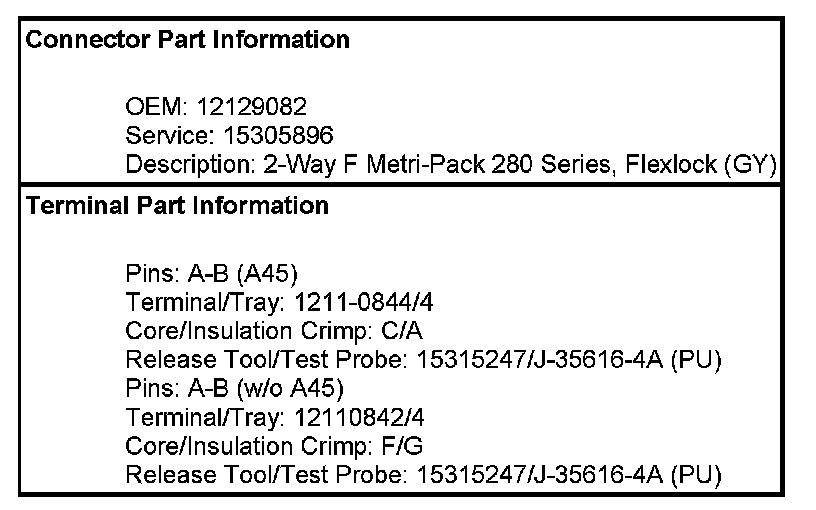

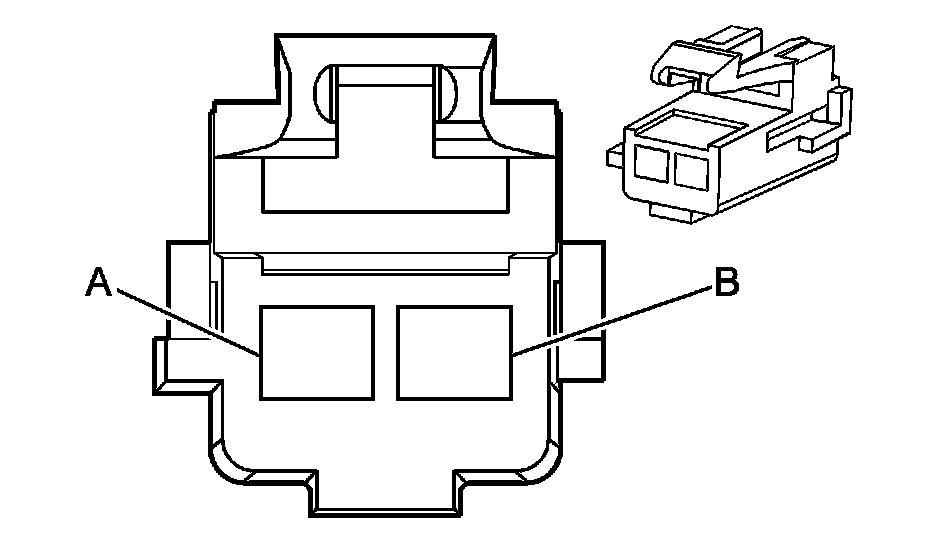

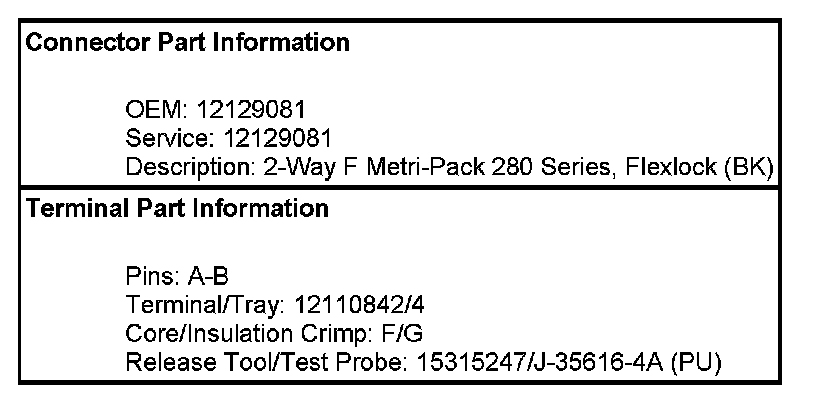

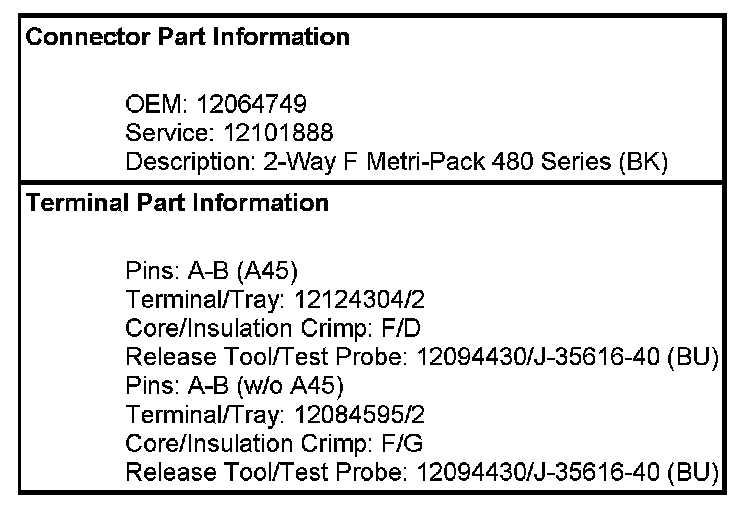

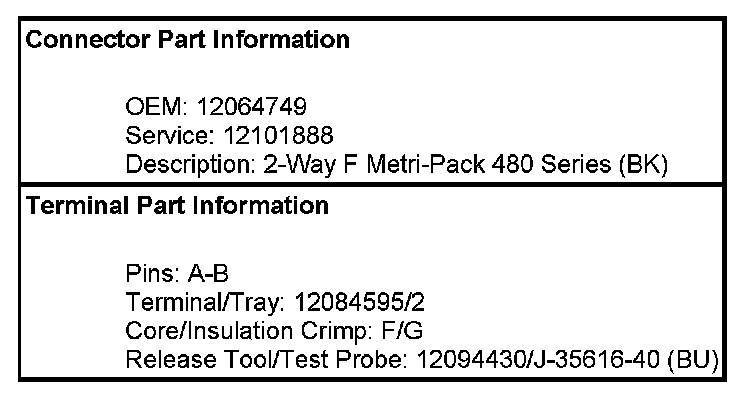

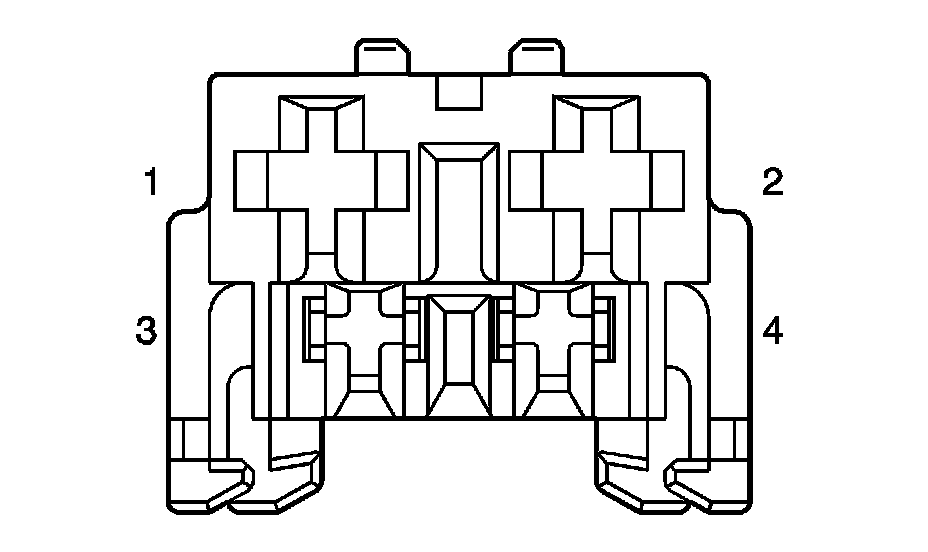

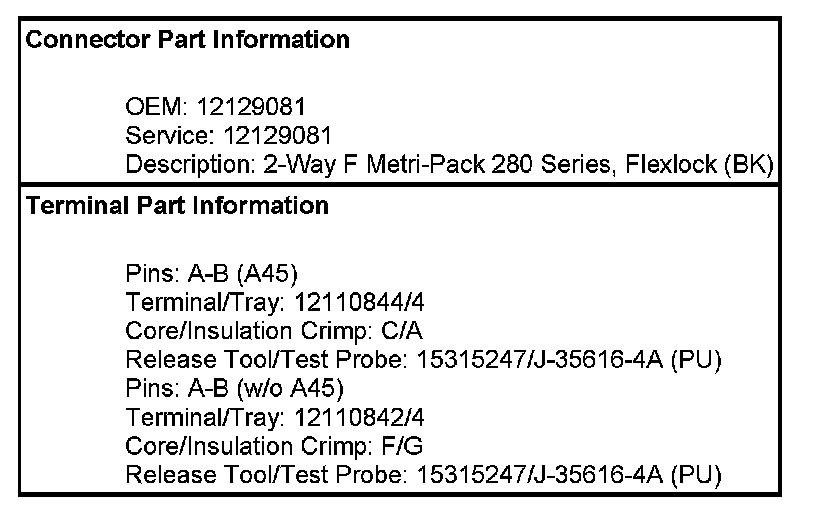

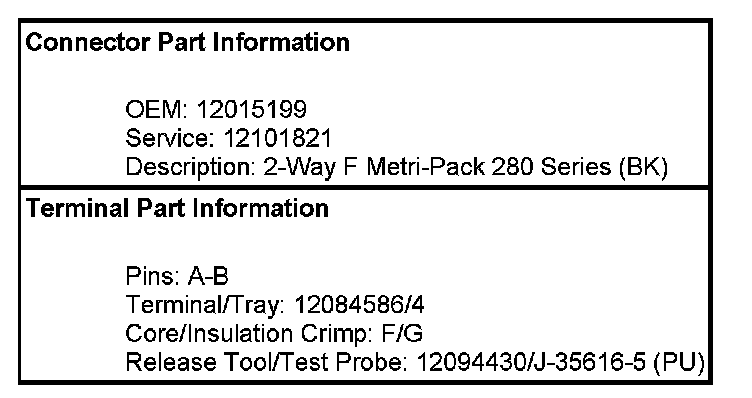

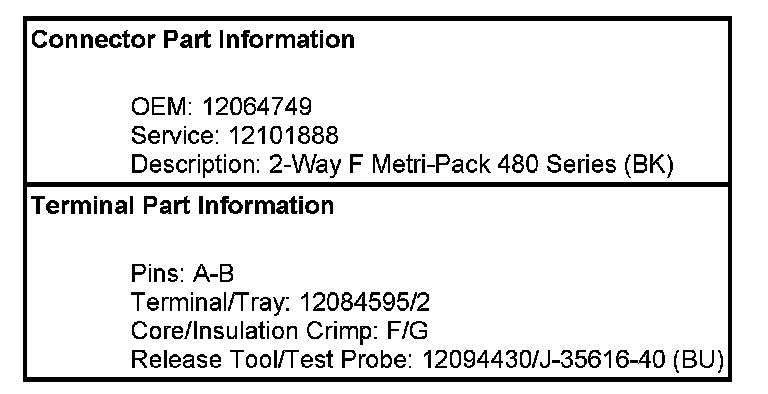

Power Seat Connector End Views

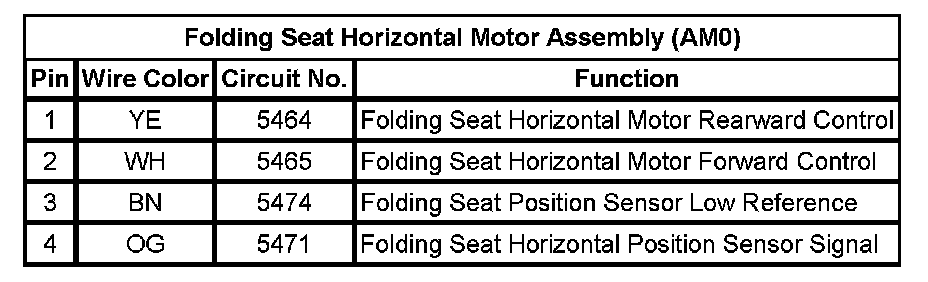

Folding Seat Horizontal Motor Assembly (AMO)

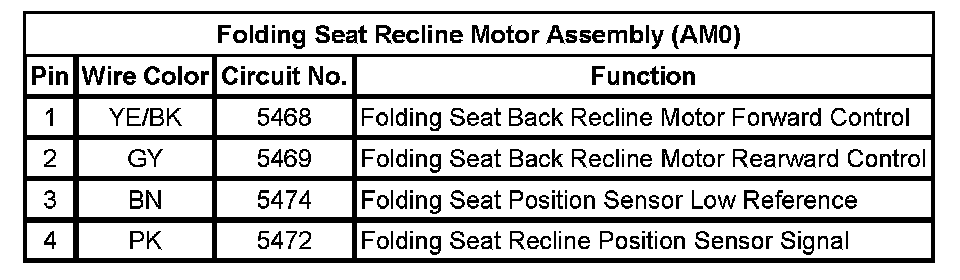

Folding Seat Recline Motor Assembly (AMO)

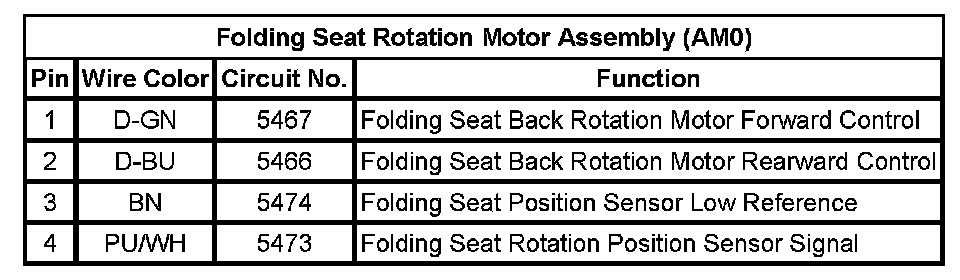

Folding Seat Rotation Motor Assembly (AMO)

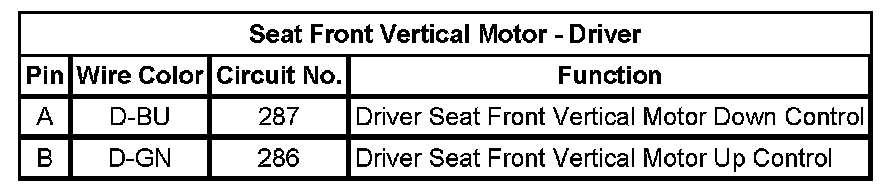

Seat Front Vertical Motor - Driver

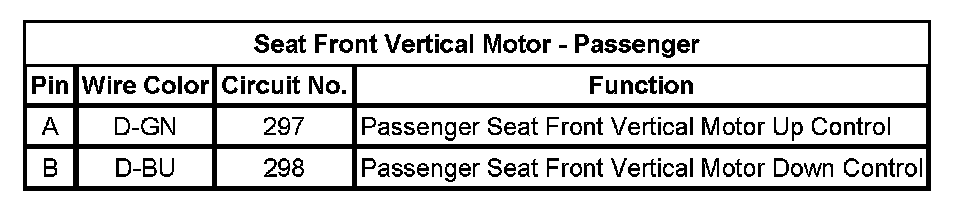

Seat Front Vertical Motor - Passenger

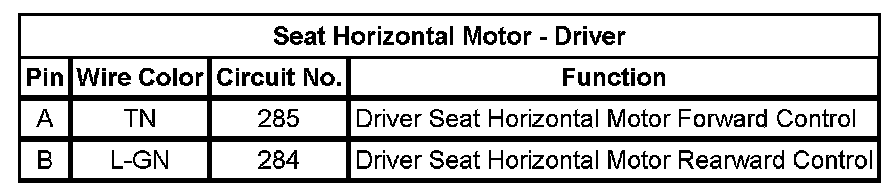

Seat Horizontal Motor - Driver

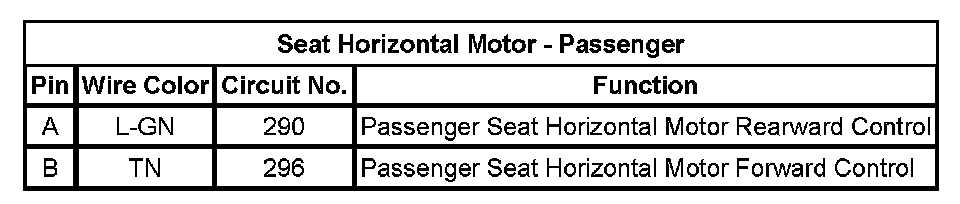

Seat Horizontal Motor - Passenger

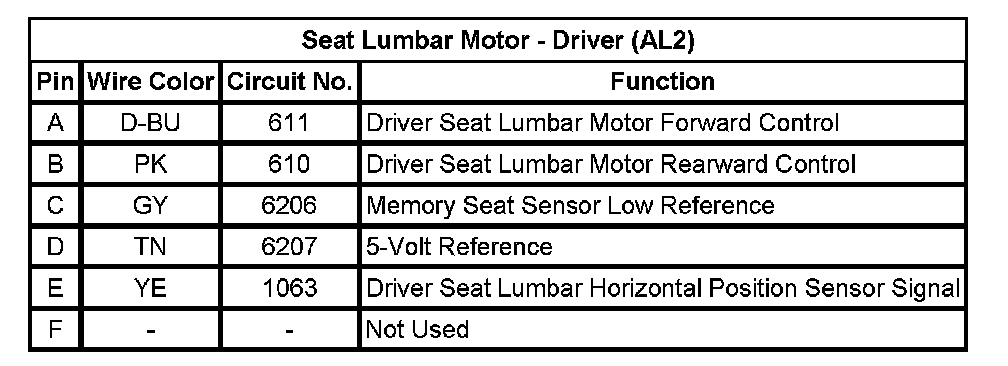

Seat Lumbar Motor - Driver (AL2)

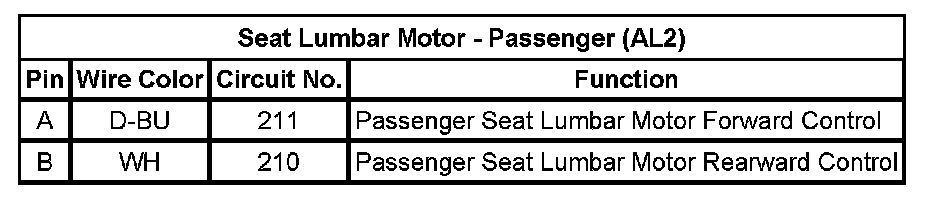

Seat Lumbar Motor - Passenger (AL2)

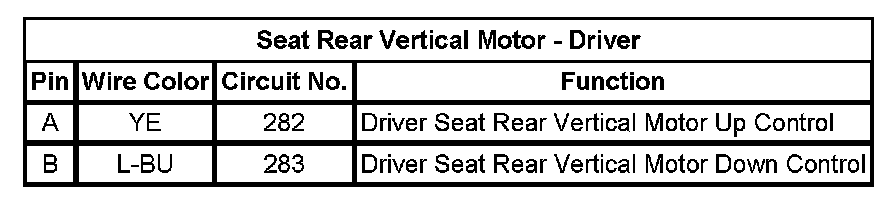

Seat Rear Vertical Motor - Driver

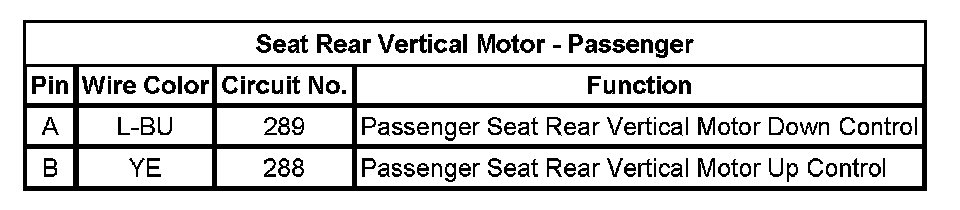

Seat Rear Vertical Motor - Passenger

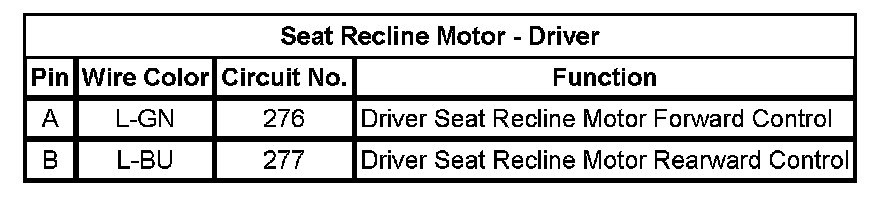

Seat Recline Motor - Driver

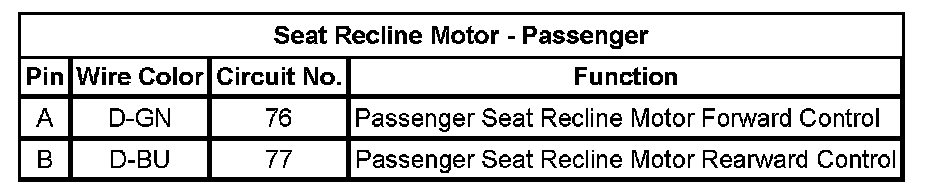

Seat Recline Motor - Passenger
