Blower Motor Switch: Service and Repair



Auxiliary Blower Motor Switch Replacement (C57)

Removal Procedure

Important: Gently pull downward at the front edge of the center dome lamp assembly to disengage the fasteners.




1. Remove the center dome lamp assembly.

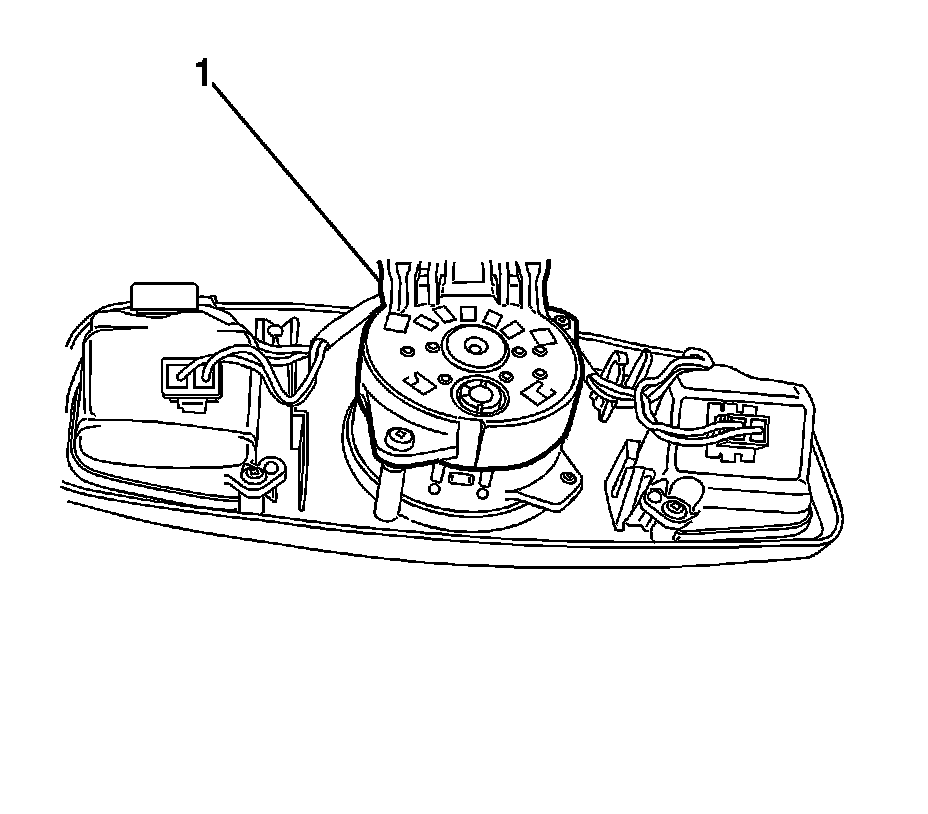

2. Disconnect the auxiliary blower motor switch (1) electrical connector.
3. Remove the auxiliary blower motor switch (1) screws.
4. Remove the auxiliary blower motor switch (1) from the dome lamp housing.

Installation Procedure

1. Install the auxiliary blower motor switch (1) to the dome lamp housing.

Notice: Refer to Fastener Notice.

2. Install the auxiliary blower motor switch (1) screws.

Tighten the screws to 1 N.m (9 lb in).

3. Connect the auxiliary blower motor switch (1) electrical connector.




4. Install the center dome lamp assembly.
