Trunk Lamp: Service and Repair
Rear Liftgate Lamp ReplacementRemoval Procedure 1.

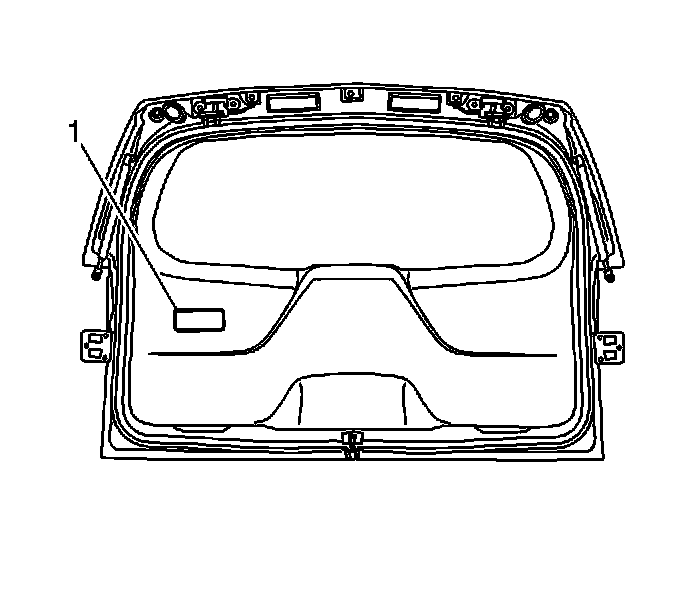

Use a small flat tool in order to pry the liftgate lens (1) off of the trim panel.
2.

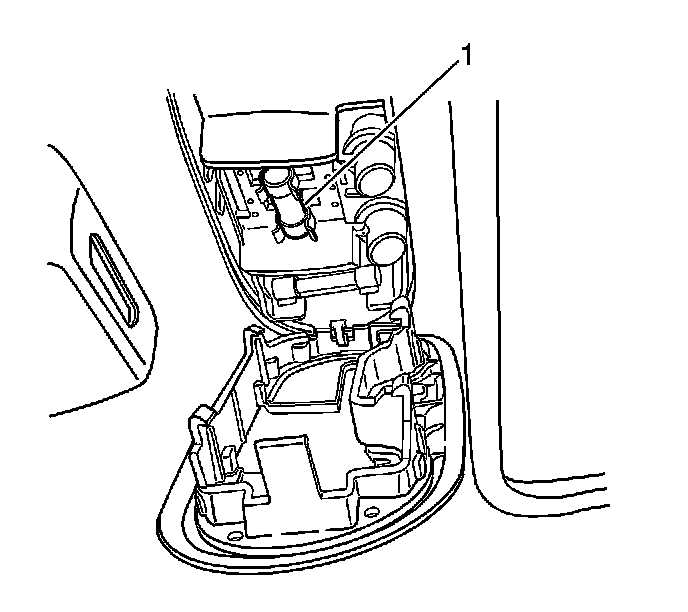

Remove the bulb.
Installation Procedure 1.
Install the bulb (1).
2.
Locate the lens onto the liftgate trim panel.
3.
Push the lens in order the lock the retainers.
