Power and Grounding Component Views (RHD)



Power and Grounding Component Views (RHD)

Forward Lamp Harness




1 - S104 (TR7)
2 - C112
3 - C114 (T90)
4 - C109
5 - S105 (K14)
6 - Fuse Block - Underhood Bracket
7 - C116
8 - G104
9 - G110 (LH2)
10 - C113 (LH2)
11 - C110
12 - C115 (T90)
13 - C111

Engine Electrical Components - LY7




1 - G102
2 - Battery
3 - C103
4 - G105
5 - Starter
6 - Positive Battery Cable
7 - Generator
8 - Fuse Block - Underhood Positive Voltage Studs

Engine Electrical Components - LH2




1 - Starter
2 - C107
3 - Battery
4 - G105
5 - Battery Current Sensor
6 - G102
7 - C103
8 - Generator
9 - Fuse Block - Underhood Positive Voltage Studs

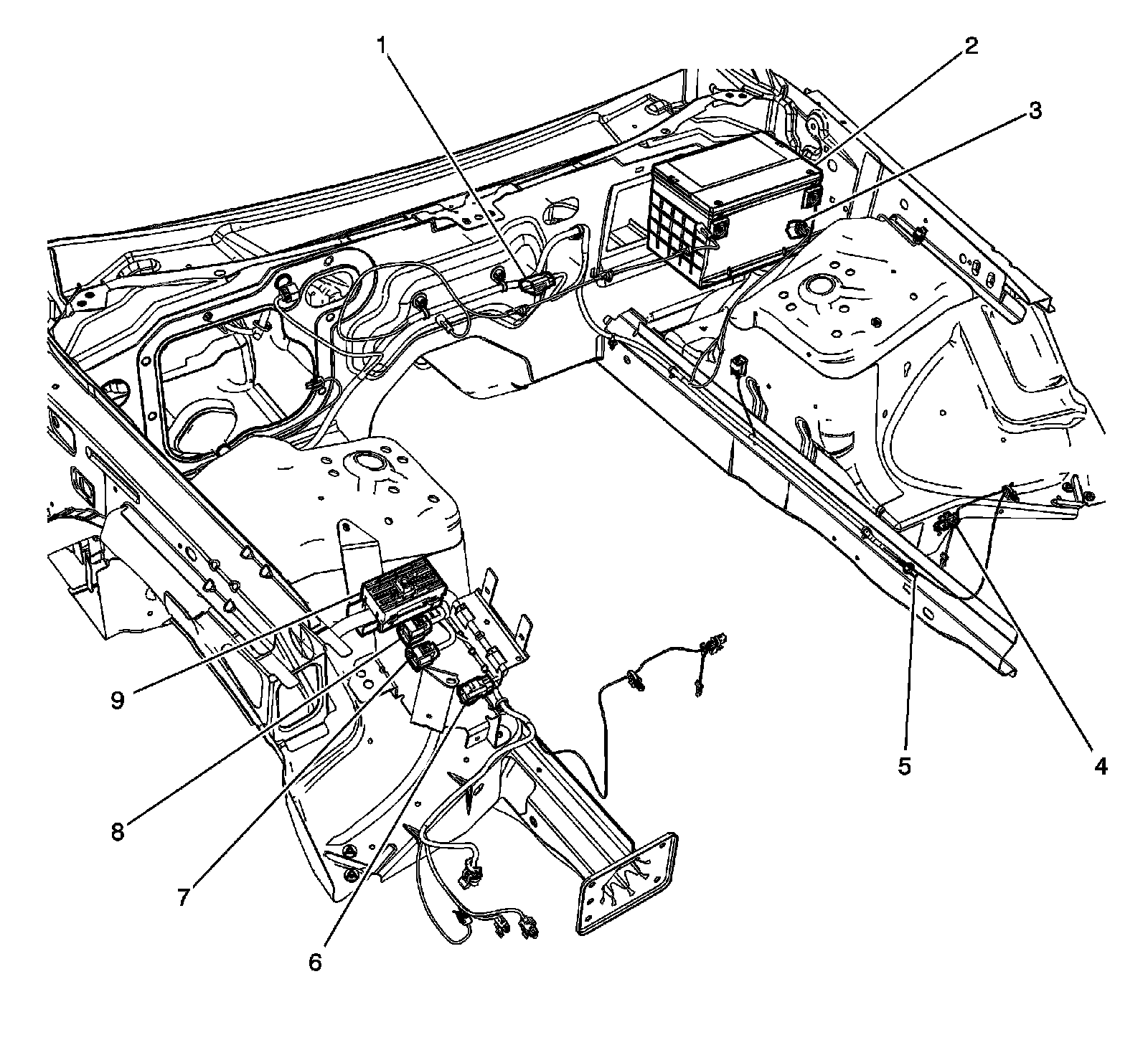

I/P Harness Routing - Front Engine Compartment




1 - C102
2 - Battery
3 - Battery Current Sensor
4 - C103
5 - G101
6 - C116
7 - C118
8 - C117
9 - Fuse Block - Underhood C2
